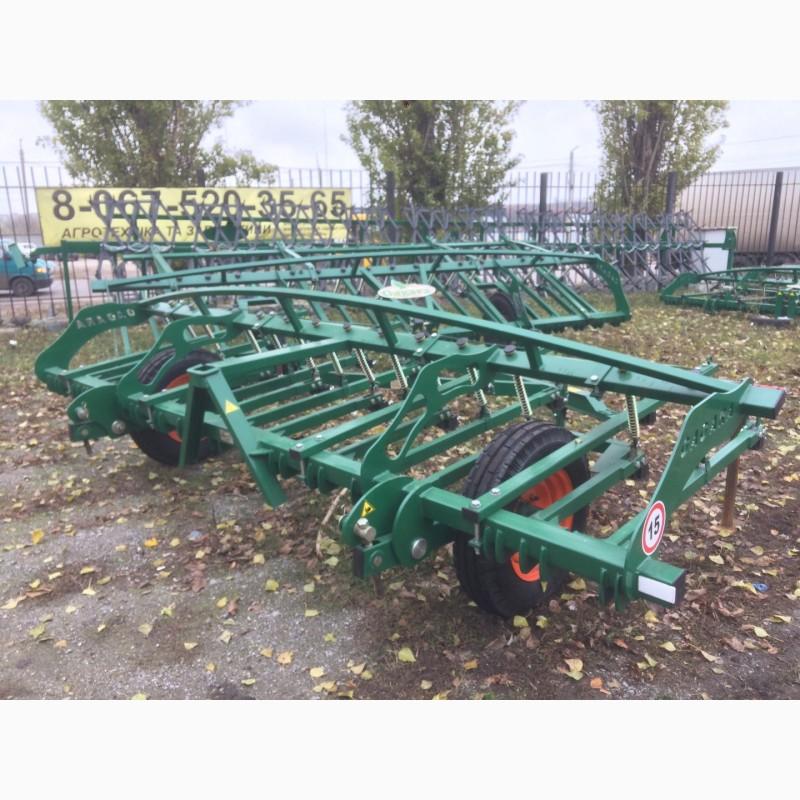

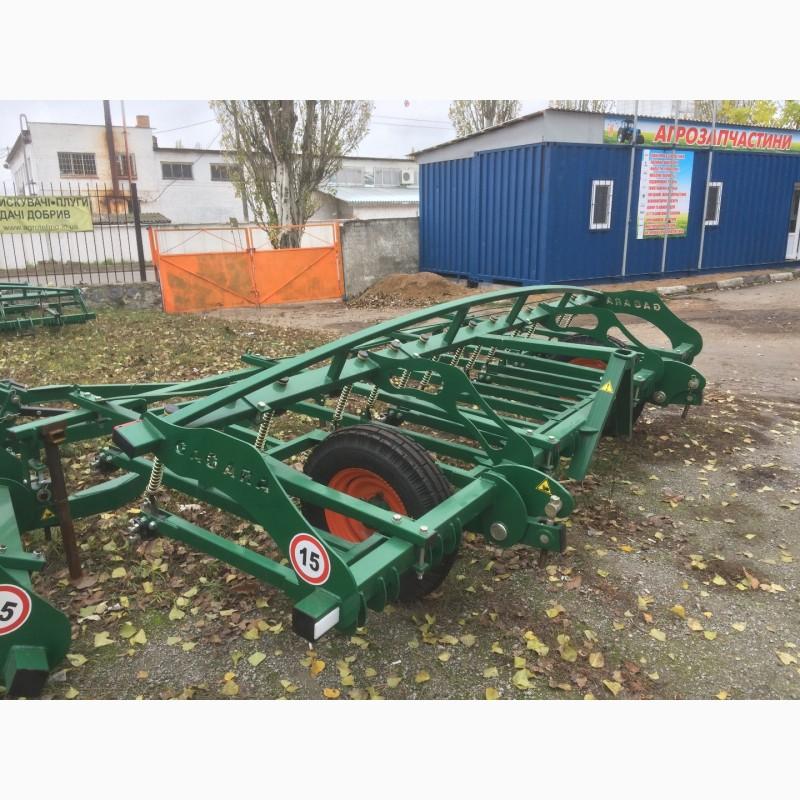

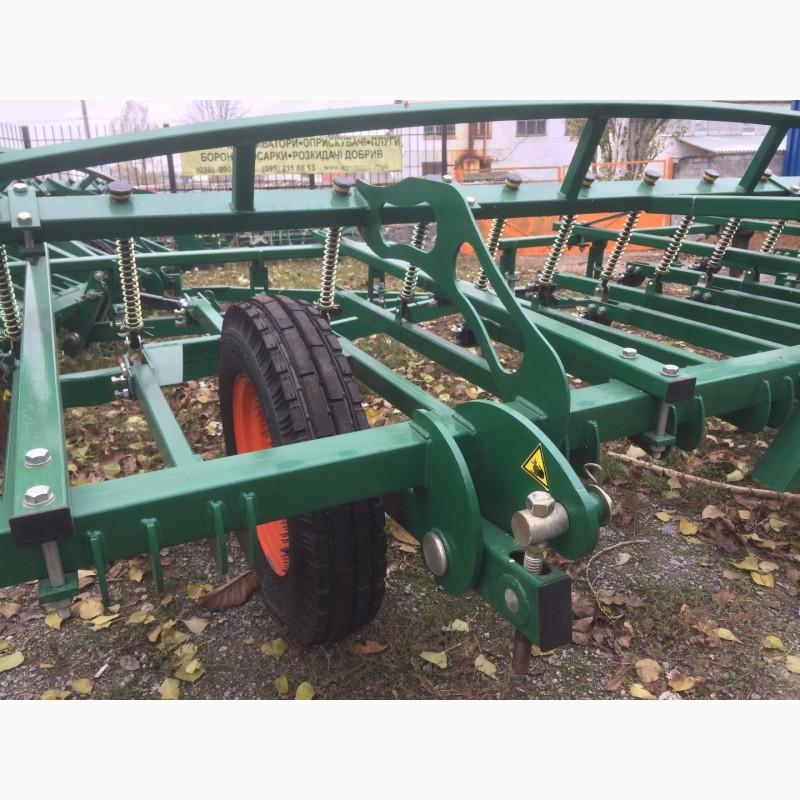

Gagara 420 (KPS 4.2) continuous spring cultivation cultivator under the MTZ, Kirovohrad region.

The Gagara cultivator meets all the requirements of the TU, intended forcontinuous soil processing different composition with simultaneous harrowing at a speed of up to 12 km/h and for preparing the land for sowing winter crops.

At the request of the customer, the cultivator is equipped with tooth harrows (harrow 40 kg/piece, tooth steel 65 G)

Cultivator Gagara 420 is aggregated with tractors:
YuMZ - 8040.2, YuMZ - 8040.2TZ, YuMZ - 8240, MTZ - 80.1, MTZ - 82.1, MTZ - 920.

At the request of the customer, the cultivator is equipped with tooth harrows (harrow 40 kg/piece, tooth steel 65 G)

Advantages of the Gagara Cultivator:

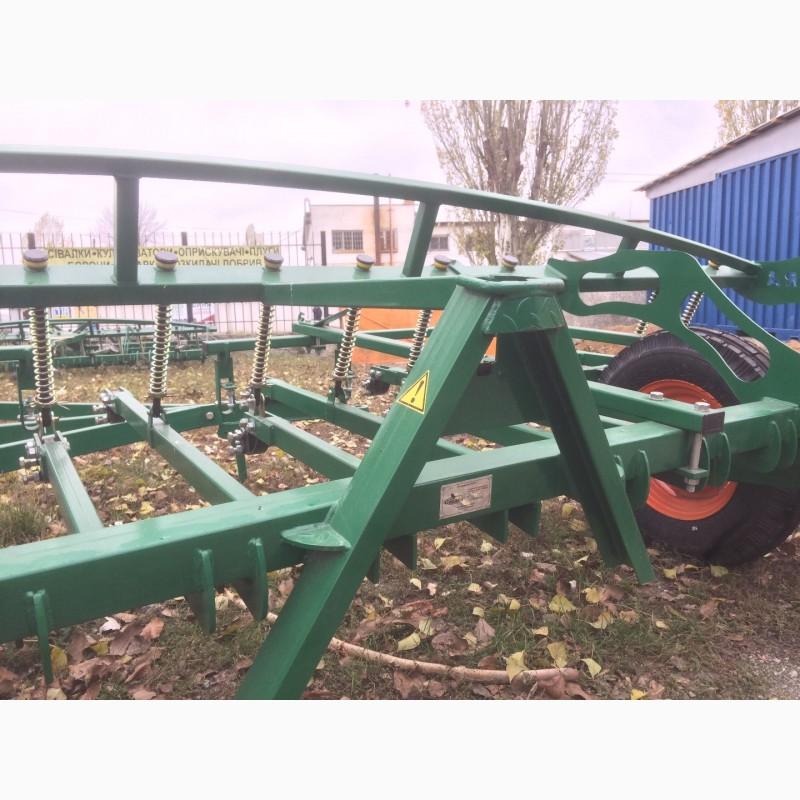

• Reinforced frame construction - maximum strength and reliability;

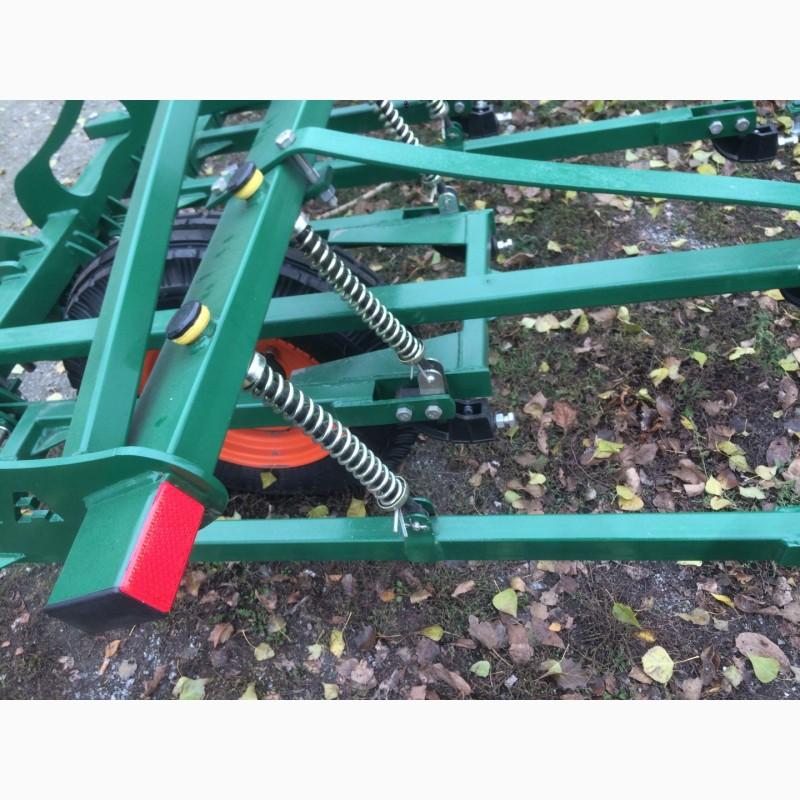

• The strut of the shock absorber is located directly in the frame itself, which excludes the loss of both the rod itself and the cracker of the old model;
• The spring is made of spring-spring steel 65С2ВА, 6mm thick;

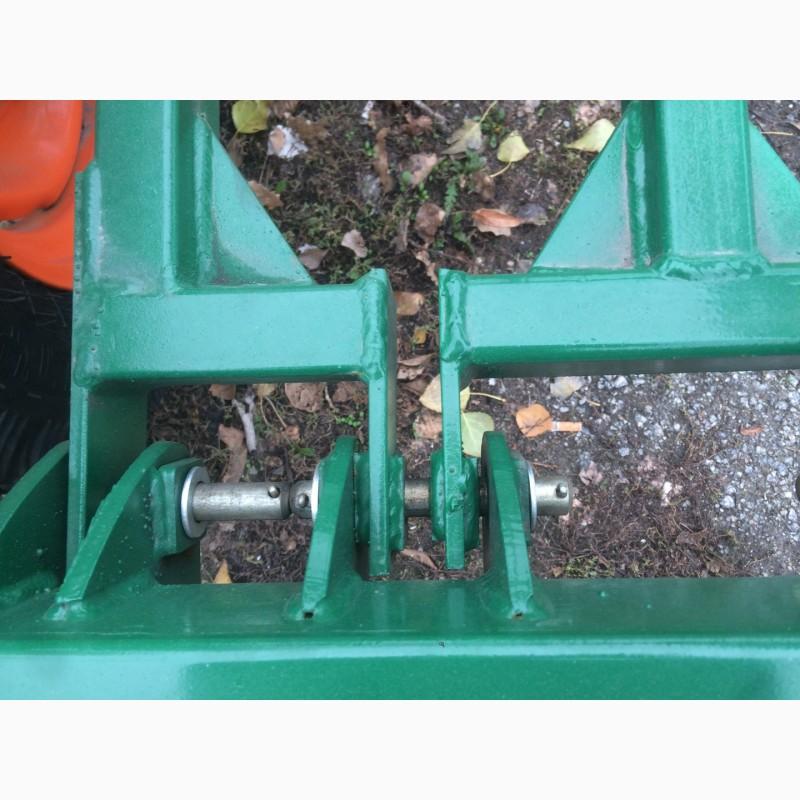

• The attachment of the shaft, with a total thickness of 20 mm, ensures both the elimination of backlash on the shaft and the longest possible operation;(//tractor-service.com)

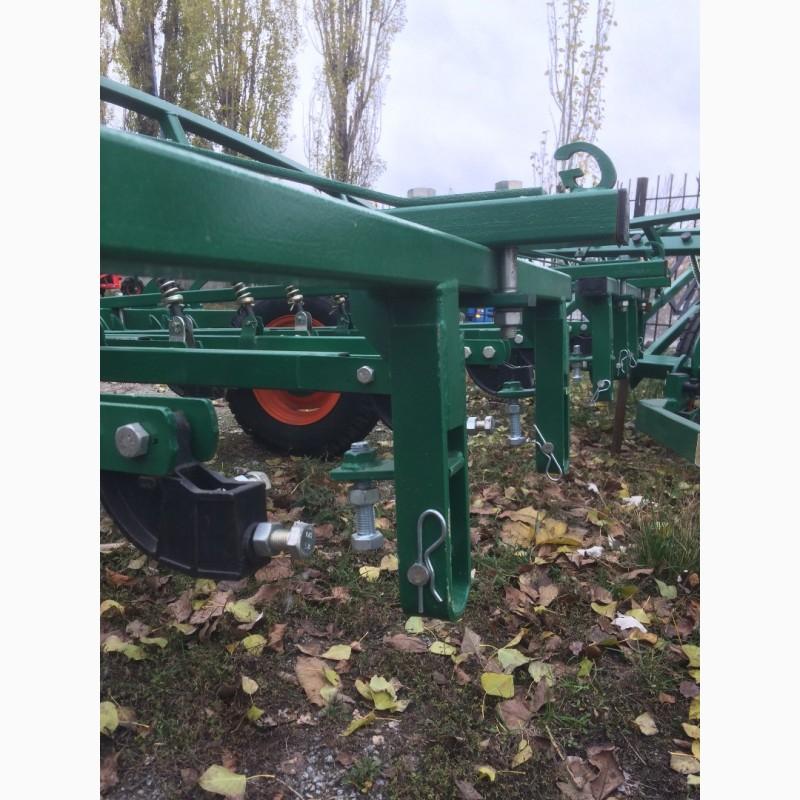

• One-piece cast bracket for fastening working bodies made of high-strength steel;
• Working body, paw 330mm steel 65G with surfacing Sarmite.

Technical characteristics:

Aggregation -trailers
Productivity - 4.5 -6 ha/hour.
Width of capture (m) - 4
Working speed up to 10 km/h
Transport speed - 15 km/h
The maximum processing depth - 18 cm
Tractor power - 80 l. p.
The weight of the unit is 850 kg

Warranty 12 months.
Delivery to any region of Ukraine.
