Industrial solid fuel boilers from 100 kW, Dnipropetrovsk region.

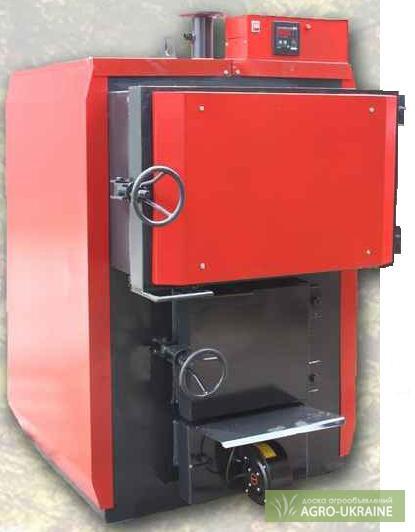

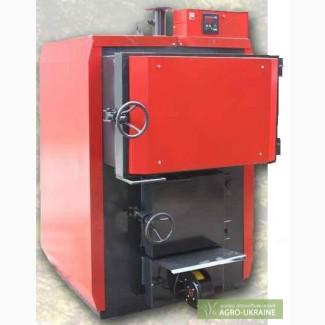

Industrial solid fuel boilers ARS 100.

Heat capacity on solid fuel — 99 kW.

Heat output on diesel fuel — 185 kW.

Heat output on gas — 185 kW.

Efficiency on gas and DH — 95%

Efficiency on solid fuel is 82%

Gas consumption — 17.4 cubic meters/hour.

DT consumption — 13.2 l/hour

The consumption is solid. of fuel — that is 16 kg/hour

The duration of the burning of the load is solid. heating — 3-8 hours(//tractor-service.com)

The working water pressure in the boiler is 0.3 (0.6) M Pa

The vacuum in the smoke channel behind the boiler is 10 Pa

The temperature of the outgoing gases on gas and DH — 160C, on solid. heating — 200C

Current voltage/frequency — 200V/50Hz

The consumed electrical power is 0.3 kW

The volume of the water cavity is 460 L

Mass — 830 kg.

The volume of the combustion chamber is 0.24 cubic meters.

The gas pressure in front of the burner is 0.4 mbar.

The designboiler and the built-in economizer allow you to use the heat from flue gas recirculation, which significantly increases efficiency and reduces the formation of condensate... It balances the hydraulic resistance of the system, which eliminates the need for three-way valves.
