Among farmers, the most popular is

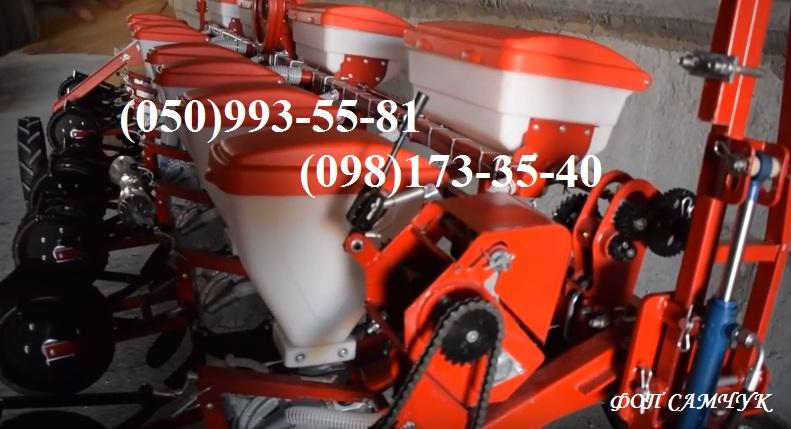

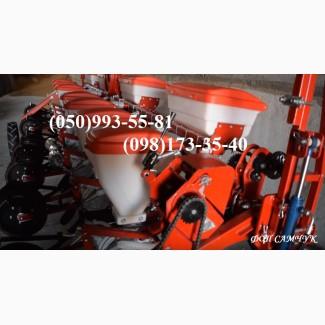

planter UPS-8, analogue of West, but cheaper, in powder coating. The seeding sections of the UPS 8 seeder are equipped with a 2-circuit drive, the drive is located significantly higher, which together with the new protection ensures work on fields clogged with plant residues. Pneumatic sowing devices of seed drills
precise seeding reduce the percentage of seed crushing by 10 times compared to mechanical ones. The seed drills are equipped with a durable hydroficated marker with a disk of a larger diameter, which has the ability to change the angle of attack to obtain a clearly visible trace. An unloading hatch is provided for quick removal of seeds from the chamber of the seeding device.
Technical characteristics of UPS-8
Gripping width m 5.6
The number of lines pcs. 8
Width between rows mm 450, 600, 700, 900
450x900, 600x1200
Working speed km/h 3.6-9
Productivity ha/h 2-5.04
Hopper capacity (total) dm3
- for seeds 200
- for fertilized 192
(//tractor-service.com)
Sowing norms
- for seeds pc/p.m. 2-43
- for fertilized kg/ha 50-250
The depth of seed sealing mm 40-120
Overall dimensions mm
- in working position 1700x6250x1430
- in transport position 6800x2300x3010
Mass kg 1278±3%
It is aggregated with tractors hp. (ts) 80 (1,4)
UPS-8 universal pneumatic seeder can be ordered by calling by phone. Our managers will consult you. Same day delivery.
