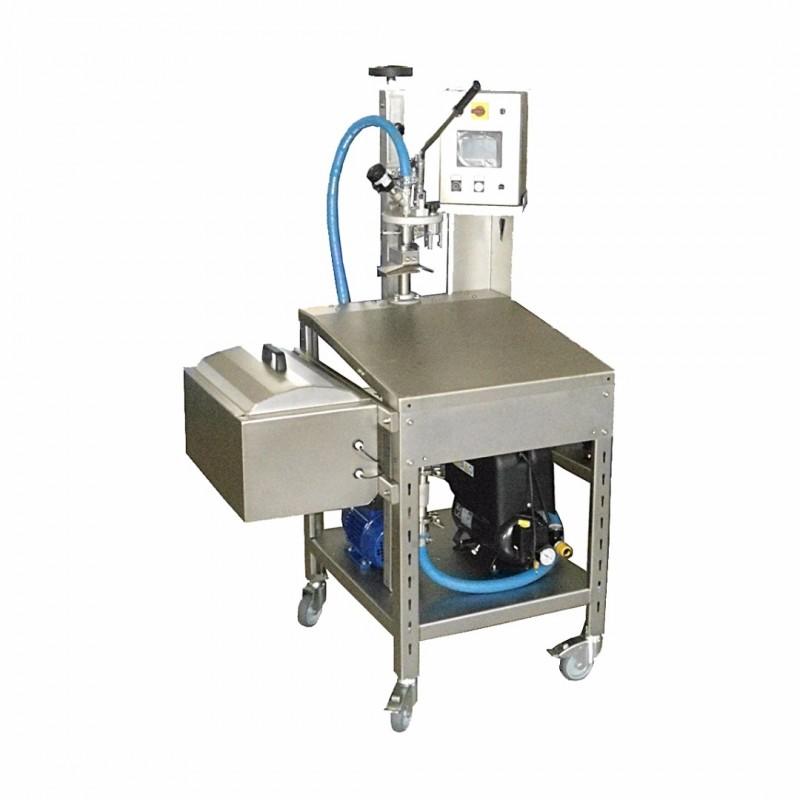

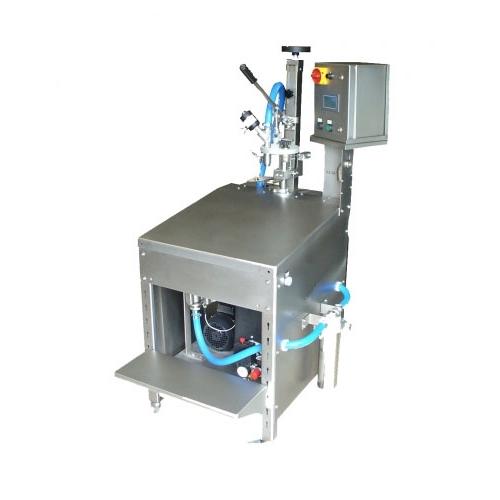

Bag in Box bottling equipment semi-automatic Italy, Zakarpattia region.

The bag in box juice bottling device is intended for cold and hot bottling of wine, juice and other liquids.
Hot pouring temperature up to +120 ° C.

Features:
- AISI 304 stainless steel frame, onwheels.
- Self-primingpump with a rubber impeller inside;
- Electric power supply 220 V, 50 Hz,
- Compressor power 1.5 kW, 900 rpm.
- Air compressor, installed inside the machine, with automatic pressure switch;
- The electromagnetic flowmeter has high accuracy and productivity;
- Electric control panel with a touch screen: easy adjustment and operation (option - stainless steel case)
- Semi-automatic filling head drive system;
- Clamp for extracting and inserting a stainless steel faucet with a spring inside. Available for different types of faucet (Vitop or standard Flextap);
- Adjustable filling head with a semi-automatic flywheel;(//tractor-service.com)
- Vacuum system with the possibility of setting the time, using the control panel;
- Nitrogen injection with the possibility of setting the time, using the control panel;
- Automatic air piston for blocking the head during filling;
- Additional "Start" button on the side.
- Adjustable support from stainless steel for boxes;
- Stainless steel fittings for the CIP washing system;
- Automatic program for cleaning using the CIP or steam system.
- Filling packages from 1 liter to 20 liters;
- Productivity 240 pieces/hour for 5-liter bags, 180 pieces/hour for 10 liters (productivity depends on the user, vacuum time, nitrogen injection time).
- Overall dimensions: 600x820x1600 mm
- Weight: 110 kg.

Proposals are provided upon request.
The price on the site may differ from the actual price.
Sincerely, AR-Tech company.
