Machine for cleaning and calibrating grain ISM-5, buy a separator for different seeds, aggregates APO, Kharkiv region.

2 year warranty! The highest quality of Ukraine!
This is really the best car today!

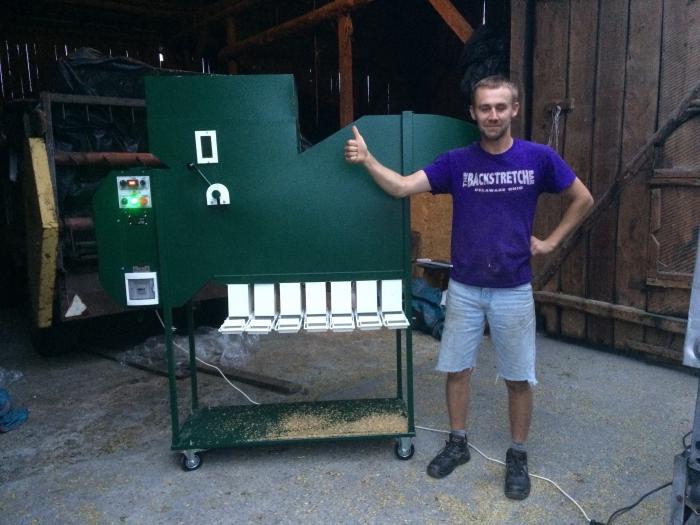

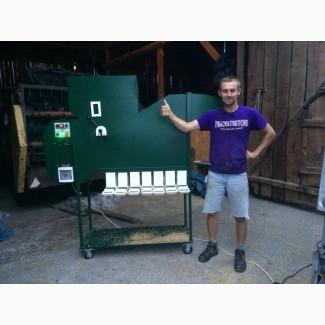

ISM-5 (impeller separating machine) processes and calibrates grain according to grade with high accuracy. The constructions of nodes represent the latest technological achievements in grain processing.
Accuracy of calibration of seed material guarantees 98% germination of grain after sowing.

It is the weight, not the size, that is the main indicator of the integrity and biological value of the seeds. Sorting out injured, weak and cut grains - separation by weight, makes it possible to select heavy, dense, maximally nutrient-rich grains, ensuring a good harvest for its owner.
The most important feature of the sieveless aerodynamic separator forgrain cleaning is the air flow former - a direct-flow fan.

Advantages:
- differences in air supply technology save electricity 3 times;
- ease of control (minimum number of control unit buttons); 172
- управление потоком воздуха позволяет настраивать поток на необходимую культуру;
- due to the created injection in the separation chamber, the quality of calibration is increased, grain germination even of small-seeded crops (mustard, rapeseed, flax, etc.) is 98%;
- the absence of a "snail", an air flow blower, which must be periodically cleaned;
- the weight of the machine is reduced by 40%, compared to others.

Video APO-5:
https://youtu.be/CqOwCpm8f8U
*
Video APO-50:
https://youtu.be/VkxC7yRTDyw
*
Video APO grain preliminary cleaning unit:
https://youtu.be/vdA2w1B1PcY

ISM - impeller-separating machine;
TsOK - cyclone-sediment complex (a unit with one cyclone and two or three sedimentation chambers, designed to clean the air circulating in the separator from dust);
APO - pre-cleaning unit (recommended for heavily "clogged" seed material, works in tandem with ISM and SOK machines);
SOC - self-moving cleaning complex, five in one (replaces ZAV)

Prices for March 2023:
(//tractor-service.com)
- ISM-5, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 155 kg, dimensions l.2150/w.460/h.1750mm., 220V - c. 62,000 hryvnias, 380V - ts. UAH 65,000.;
- ISM-5 TsOK, cleaning 5t/h, calibration up to 3t/h, 0.2-0.55kW, 50Hz, weight 374kg, dimensions d.3200/w.1000/h.2000mm., 220V/380V - c. UAH 132,500; 199

- ІСМ-10, очистка 10т/год, калібрування до 5т/год, 0,2-0,75кВт, 50Гц,, вага 165кг., габарити д.2420/ш.460/в.1880мм., 220В - ц. 72000 грн., 380В - 75000 грн.(безкоштовна доставка в межах України);
- ISM-10 TsOK, cleaning 10t/h, calibration up to 5t/h, 0.2-0.75kW, 50Hz, weight 420kg, dimensions d.3400/w.1000/h.2100mm., 220V - c. UAH 97,000, 380 V - ts. UAH 139,400;

- ISM-15, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 337kg, dimensions d.2310/w.650/h.2400mm, c. UAH 125,000;
- ISM-15 TsOK, cleaning 15t/h, calibration up to 7t/h, 0.4-2.2kW, 380V, 50Hz, weight 685kg., dimensions d.4800/w.1150/h.2800mm.), c. UAH 193,500;

- ISM-20, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 355kg., dimensions d.2300/w.650/h.2400mm.), price: UAH 138,500;
- ISM-20 TsOK, cleaning 20t/h, calibration up to 10t/h, 1.5-3kW, 380V, 50Hz, weight 690kg, dimensions d.4800/w.1150/h.2800mm., c. UAH 206,800;

- ISM-30, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 360kg., dimensions d.2310/w.650/h.2400mm., c. UAH 149,700;
- ISM-30 TsOK, cleaning 30t/h, calibration up to 15t/h, 1.5-4.5kW, 380V, 50Hz, weight 760kg, dimensions d.4800/w.1150/h.2800mm, c. UAH 225,400;
- SOK-25 c. UAH 520,000;
- SOK-30 c. UAH 530,000;

- APO-5 (productivity 5 t/h) c. UAH 80,800.;
- APO-50 (productivity from 10 to 50 t/h) c. UAH 162,000.

Additional equipment:
- mosquito net bag for ISM-5, ISM-10, etc. UAH 600;
- setwheels for ISM-5, ISM-10, c. 700 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 2 trays, c. 750 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 3 trays, c. 850 UAH.;
- a connector for a 150mm pipe. for ISM-5, ISM-10 on 4 trays, c. 960 UAH.;
- U-shaped connector for ISM-5, ISM-10 for all trays (2,3,4), etc. UAH 260;
- net (sieve) up to APO-5 (6,8,10,12,14 mm. and more) c. 7080 UAH.;
- mesh (sieve) up to APO-50 (6,8,10,12,14 mm. and more) c. UAH 13,500.;
- application of a rubber layer on the inner walls of the machine to protect the seeds of leguminous crops from splitting, c. 2000 UAH.;
- auger for ISM-5, ISM-10, ISM-5 Tsok, ISM-10 Tsok, c. UAH 51,200.

The state compensation program is in effect.
The price of the machines can be changed.
