Hydraulic hydraulic disc harrow 10m, Cherkasy region.

The LDH-10 hydraulic disk harrow is intended for loosening untreated compacting soil of different mechanical composition, grinding post-harvest residues of long-stemmed crops, cutting weeds and other vegetation in untreated fields after harvesting the main agricultural crops.

The peeler works at a soil moisture of 12-25%.

The husker can be used for steam cleaning, cutting layers and crushing lumps after plowing.

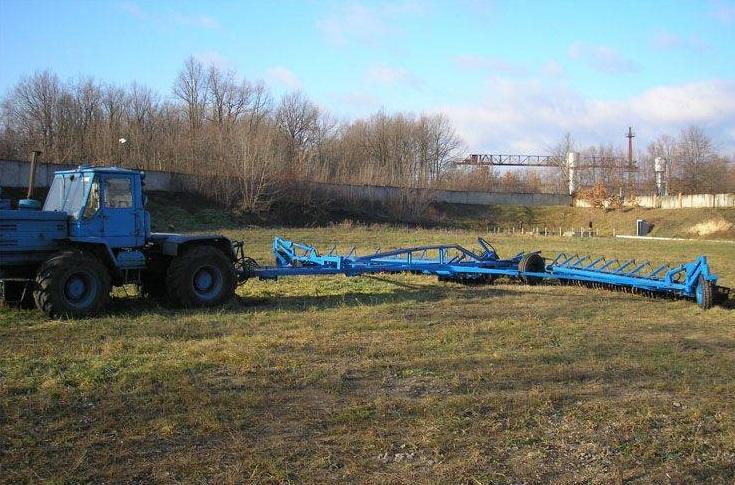

It is aggregated with class 3 tractors (T-150, T-150K)
Type: trailed
Width of capture, m 10
The angle of installation of discs to the thrust line (angle of attack), degrees 15, 20, 30, 35
Working speed, km/h from 8 to 12
Weight, no more, kg 2700(//tractor-service.com)
Overall dimensions in working (transport) position, mm:
— length 8200 (8200)
— width 12600 (4200)
- height 1100 (1400)
Road clearance during transportation, mm not less than 300
Processing depth, cm 4-10
Number of disk sections, pcs. 8
The number of disks in the section, pcs. 9
Disc diameter, mm 450
Distance between disc blades, mm 170
Tyres, pcs 2
Pressure intyres, MPa 0.22...0.25
