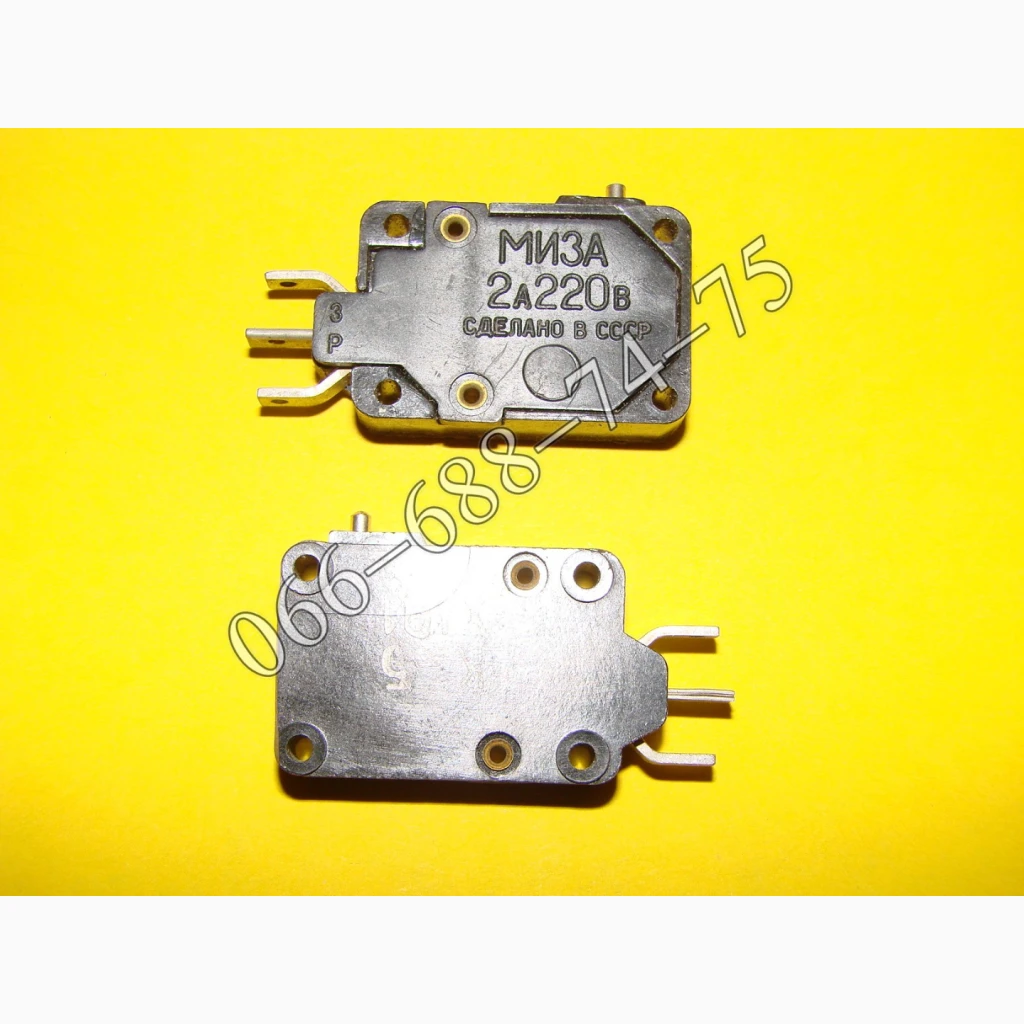

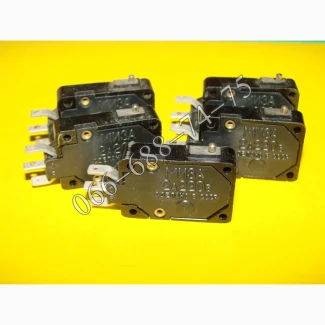

MICRO switch MI3A, MI-3A, MIZA switch, MI-ZA without petal, Kharkiv region.

Microswitch, microswitch, microswitch, microswitch, button, microbutton, end switch (MI-3A, TABLE) 2A, 220V
The MI3A microswitch has one switching contact. The differential (thruster stroke from forward to reverse) is not defined for the MI-3A. MI-3A is made in a plastic case and is fastened with two screws through the holes in the case.
Name: MI3A
Type: Microswitch
Nominal voltage, V: 220
Nominal current, A: 2
Limit switching power, VT: 440
Contact group: 1 "p"(//tractor-service.com)
Time to transfer contacts, no more than:
- when turned on, s: 0.015; - when turned off, s: 0.02
Electrical strength of the microswitch insulation relative to
контактов, as well as between open contacts, В: 1200
Overall dimensions WxDxH, mm: 42x22.5x8
Weight 8 gr.
Specify the price.
Phone: (О66) 688-74-75, (О67) 315-36-33
