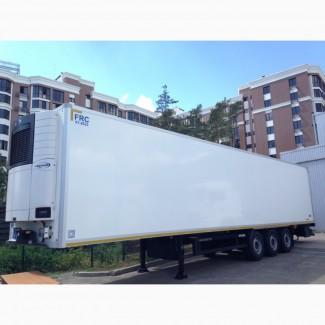

New KÖGEL refrigerator semi-trailer in stock!! S24-3 PurFerro, Kyiv

KOGEL S24-3 PurFerro with CARRIER VECTOR 1350R refrigerator, low chassis frame, support plate with pin - 2 inches complies with DIN 74080 / ISO 337 standards. Integrated into the base of the body. Rear with transverse beams with braces, three-axle axle unit SAF – Intradisc plus INTEGRAL, disc brakes, diameter approx. 430 mm, ET 120. Air suspension with lift height 180 mm, 385/65 R 22.5; 160 K,шины Continental , Tire for sparewheel 385/65 R 22.5; Continental, JOST hinged support racks with a mechanical drive, permissible load 24 tons, control from one hand, on the right in the direction of movement, 3 pairs of plastic half-wings with mudguards in front and behind with an aluminum splash guard between 1 and 3 axles, 2 brackets for fastening two spare wheels, execution in the form of "baskets", installation behind the axle unit, Plastic fuel tank for a refrigerating unit 250 l with a level indicator and a long filler neck for easy refueling. Plastic box for tools, size 545 x 400 x 400 mm, color - black, waterproof, installation in the direction of movement in front of 1 axle, left, Retractable ladder at the back on the right, Steel protection against entry from the back in accordance with EСE-R58 standards, EBS 2S/2M device with stabilization system (with ABS/ALB function), connector for connection to the EBS system according to ISO 7638 (without connecting cables), spring-operated parking brake, externally located connector for EBS diagnostics and pneumatic connecting devices, Air suspension includes 1 valve for raising / lowering, which is installed behind the bridge on the left in the direction of travel., floor Insulated floor from a sandwich construction with a thickness of 125 mm (R), Surface covered with tiles non-slip welded aluminum noise-insulating profile. At the transition to the portal - thermal seams, body - Compliance of the stability of the body with EN 12642 XL (VDI 2700) standards. Tested with a payload of 27,000 kg. ,Insulated load-bearing body consisting of multilayer elements, 100% absence of freons. The walls are sealed from all sides. All wall elements are inserted into the profiles. The body is securely connected to the chassis spars. The front wall is 60 mm thick (U) with reinforcement and a hole for Thermo-King SL or Carrier VECTOR refrigerating units. Portal made of polished stainless steel with additional protection of the locking lugs at the bottom. Double-leaf portal door with EPDM rubber gasket. 3 pairs of stainless steel hinges. A locking bar on each sash. The portal is equipped with stops for the door and a lock when the door is folded back to 270 degrees. The thickness of the back wall is about 85 mm (V). 1 pair of additional locking rods made of stainless steel, Side walls in the form of a "sandwich" - panels with an insulating insert (100% do not contain fluorochlorocarbons FCKW). Steel coating inside and outside with an upper hard layer of PVC (sheet thickness 0.6 mm). The wall thickness is about 60 mm (Z). ,The roof looks like a "sandwich" - panels with an insulating insert (100% do not contain fluorochlorocarbons FCKW). Steel coating inside and outside with an upper hard layer of PVC (sheet thickness 0.6 mm). The thickness of the roof is about 85 mm (T). Protective plates on the side walls from the outside, to protect against impact when opening the door leaves, 1 pair of shock-resistant rubber bumpers 200x150x120 mm, mounted at the bottom of the rear portal under the door leaves, Carrier Vector 1350 R refrigerator, without electric motor, EasyCold, SAS sensor, battery, start/stop and continuous mode, Datacold temperature recorder 300 T c with 2 temperature sensors and a printer
