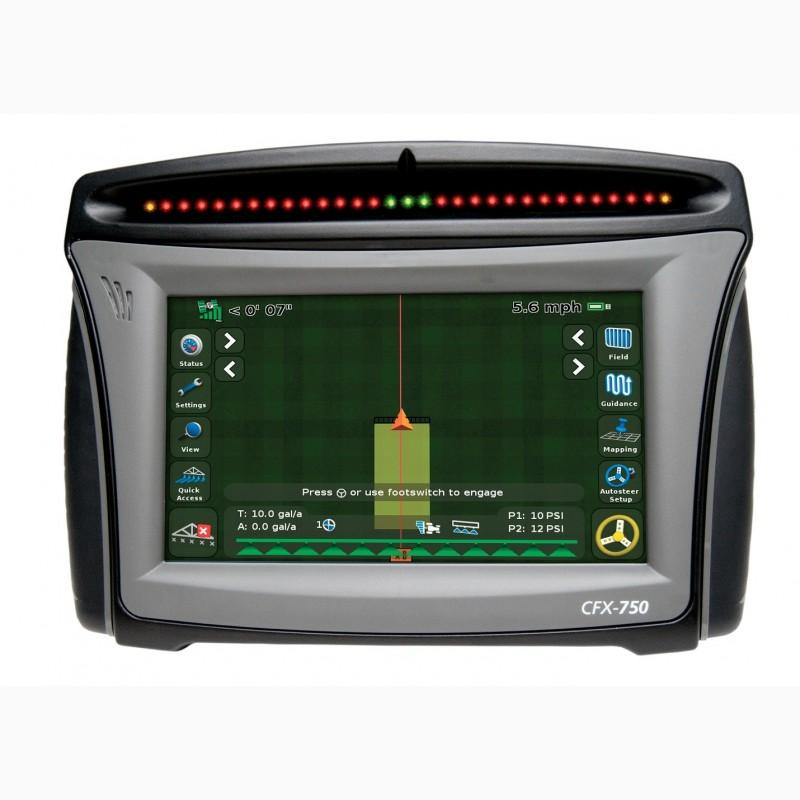

Multifunctional display Trimble CFX-750 navigation system of precision agriculture, Dnipropetrovsk region.

Appointment:
Trimble CFX-750 multifunctional display is intended for:

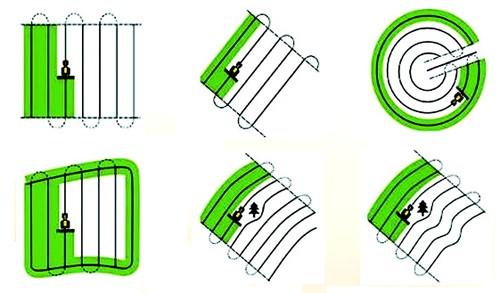

—parallel driving according to the direction indicator along the rows in conditions of any visibility in manual mode, or in automatic mode as part of the autopilot (option);
— control of sectionssprayers and precision seed drills (option);
— controlling the seeding rate (option);
— differentiated application of fertilizer (option).

Technical characteristics:
— color touch display with a diagonal of 8 inches;
— 27 LEDs in the direction indicator;
Interfaces:
— 2 RS232/CAN ports;
— 1 CAN/power port;
— USB for connecting USB drives;
— TNC input for Ag-25 antenna;
(//tractor-service.com)
Types of differential corrections:
- Free signal, accuracy about 20 cm. (GPS+GLONASS)
— OMNISTAR VBS / HP/XP/. Paid satellite service, accuracy about 15-20/10-15/7-10 cm;
— RANGEPOINT RTX - satellite correction, accuracy 15 cm and better;
— CENTERPOINT RTX – paid satellite correction, accuracy 4 cm;
— RTK. The correction comes via a radio channel or GSM (if there is full coverage) from the base station. The accuracy is about 2-3 cm.

To expand the basic functions of the course indicator, it is possible to connect the following options:

— connecting Trimble Autopilot or EZ-Pilot / EZ-Steer steering devices;
— connection of an external LB 25 course indicator and EZ-Remote joystick;
— connection to 2 external video cameras Trimble CFX-750 AgCAM for monitoring aggregates,with precision seed drills sowing while working in the field;
— connection of an external GSM/GPRS modem DCM 300 for data transmission from the device to the office in real time when working with Connected Farm, FarmWorks software;
— activation of the Field-iQ function when working together with the Trimble True Count system for controlling sections (up to 48 units) of precision seed drills and sprayers, control of precision seed sowing, as well as the VRA function — differential application of fertilizers on precision seed drills, sprayers and spreaders;
— activation of the mode of differential satellite corrections OmniStar HP/XP, RangePoint Rtx, CenterPoint Rtx;
— activation of the Trimble RTK mode for work with base stations;
