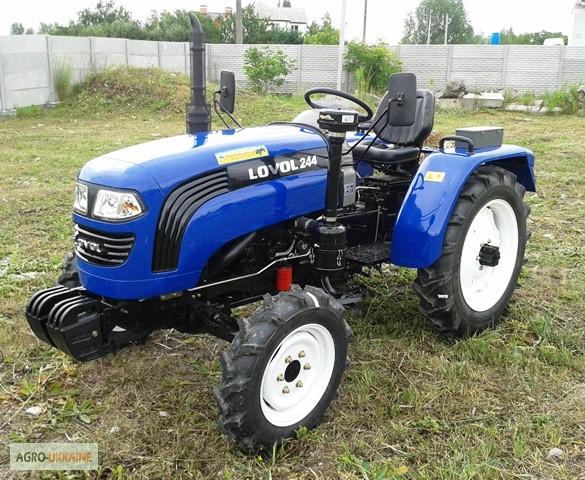

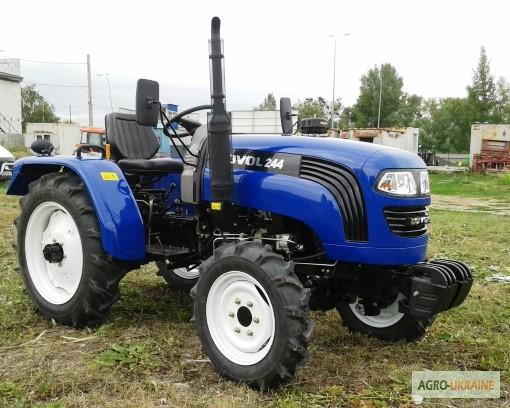

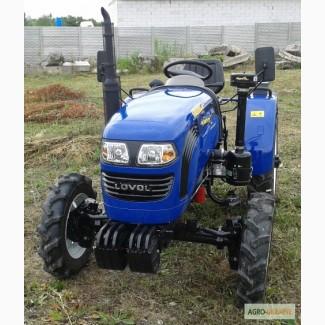

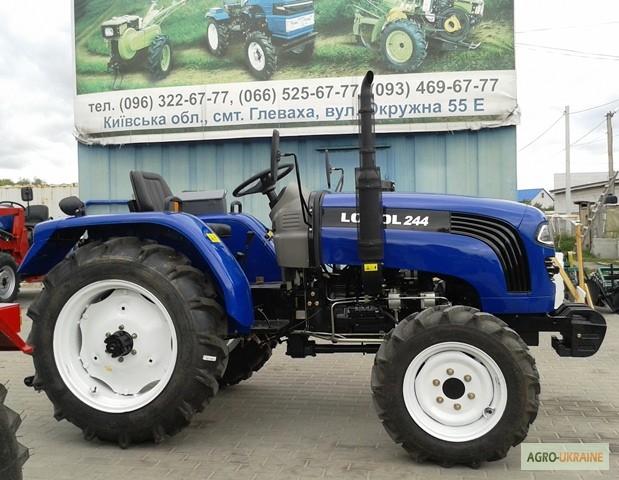

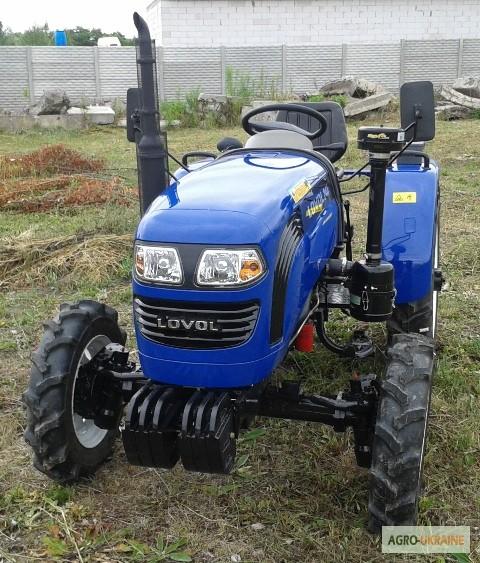

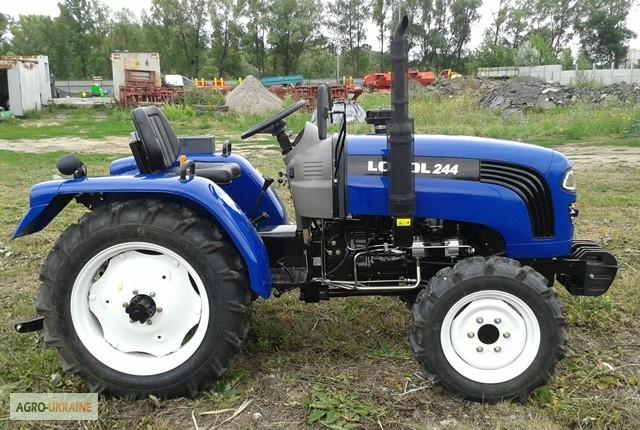

All-wheel drive minitractor with a three-cylinder water-cooled diesel, 24 hp, with reverse and wide
rubber.

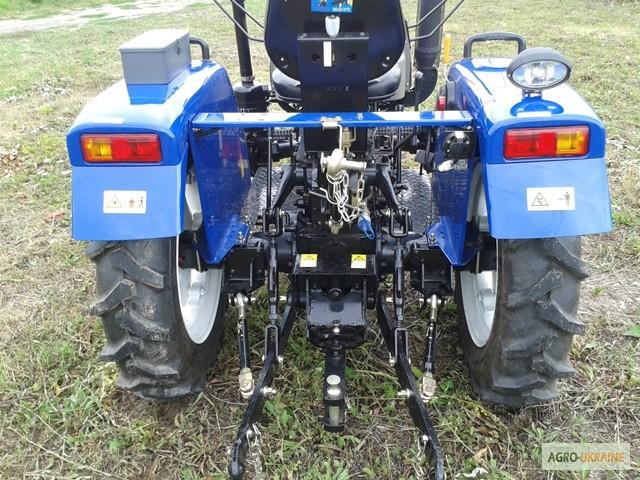

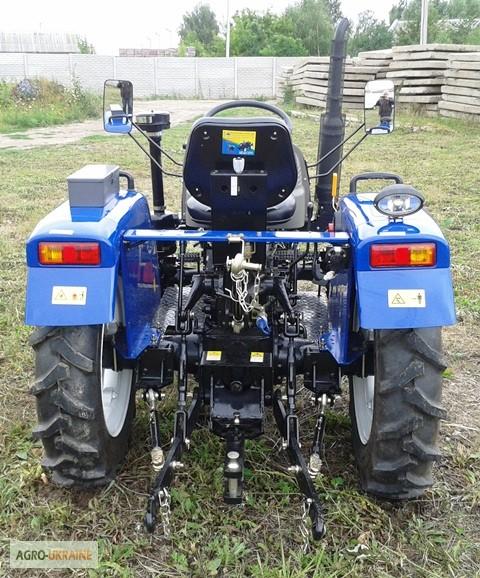

All-wheel drive, power steering, dual-disc clutch. Front axle swinging, portal type. Front loads Front and rear towing devices. Separate brake pedals with parking function. Air filter inertia-oil type mass shut-off handle. A battery with a capacity of 90 A/hour, 2 hydraulic pumps. Incandescent candle, running board, handrails, spherical rear-view mirrors. Soft seat. Manual gas. Rear working light, lights, reflectors, spacer bar. Rear disks
wheels on the hub, collapsible. Hydraulic output.
Power, hp, (kW) 24 (17.6)
Wheel formula 4x4, connected front axle
Diesel engine, KM385BT
Number of cylinders 3
Working volume, l 1.532
Specific fuel consumption, g/kW*h 264
Liquid cooling
Warming up the power supply system with a glow plug

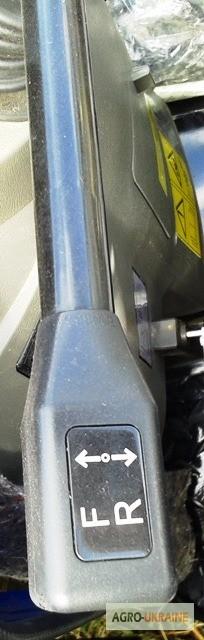

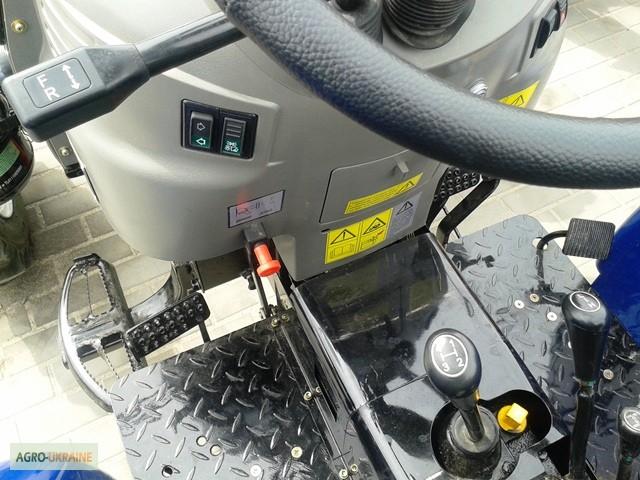

8+8 reverse gear box
Gear transmission

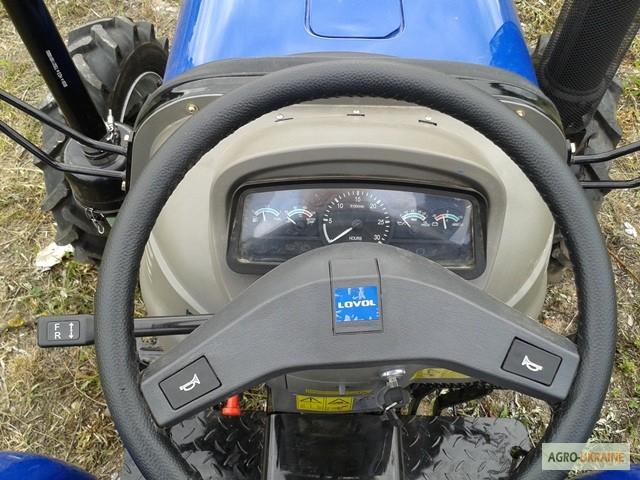

Steering with power steering
Two-disc clutch
Rear differential lockable
Rear drum brakes, separate
(//tractor-service.com)
There is a parking brake
Dimensions L/W/H, mm 3225/1440/1900 with muffler
Wheel base, mm 1639
Front/rear axle width, mm 1215/960-1460
Ground clearance, mm 270
Weight, kg 1400
Speed, km/h 1.7-26.0
Tire size 6.5-16/11.2-24
Tank volume, l 29
Power take-off shaft, rpm. 540/1000
Traction force on the hook, kN 6.5
Lifting capacity, kg 520
Hydraulic outlet 1
Minimum turning radius, m 2.6-3.1
Loads, kg 54
