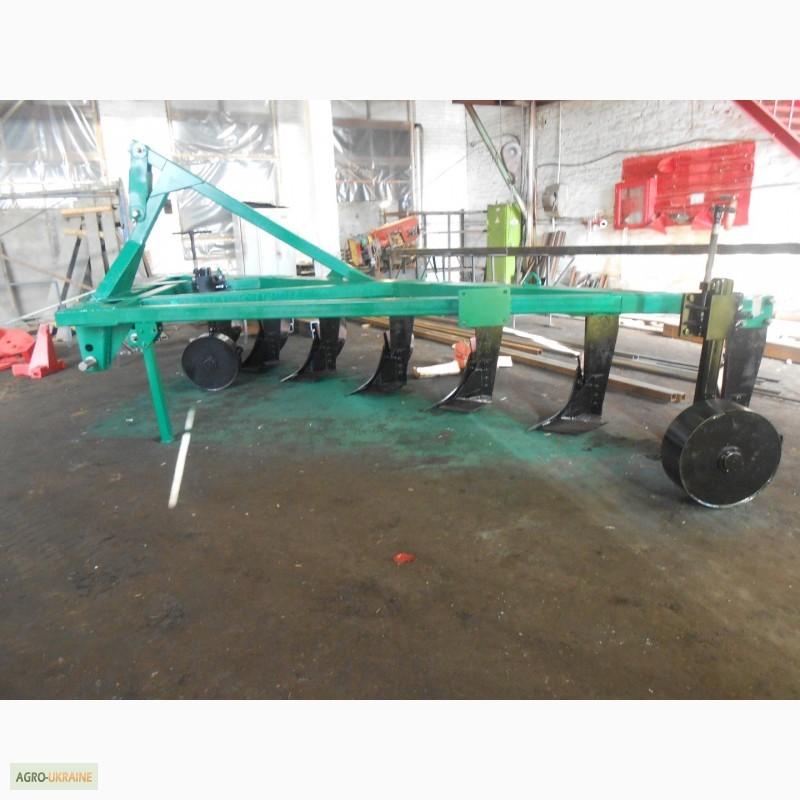

High-speed mounted plow PSHN 3, PNSh 7, Poltava region.

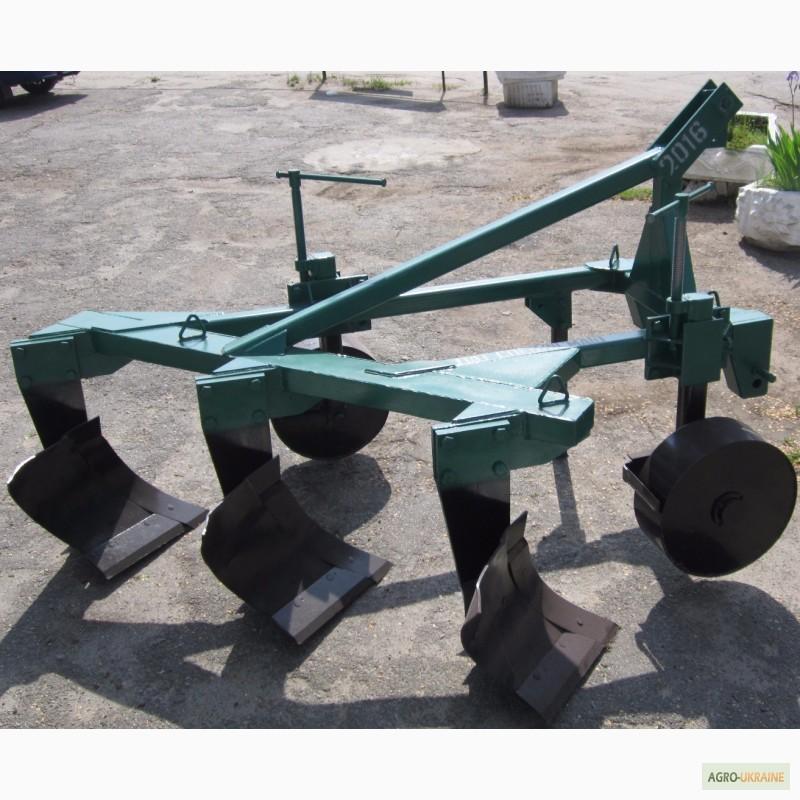

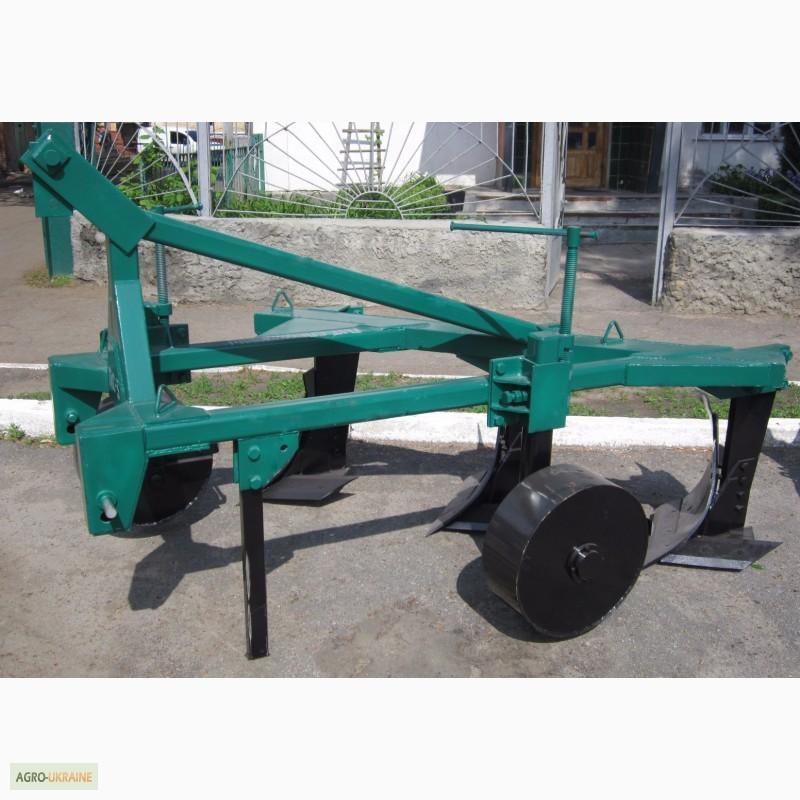

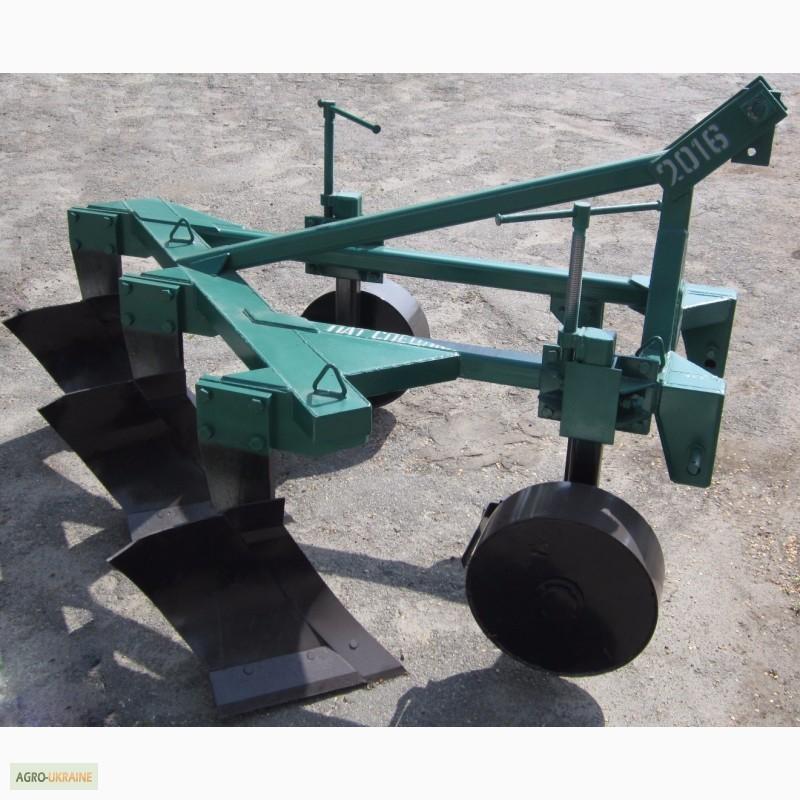

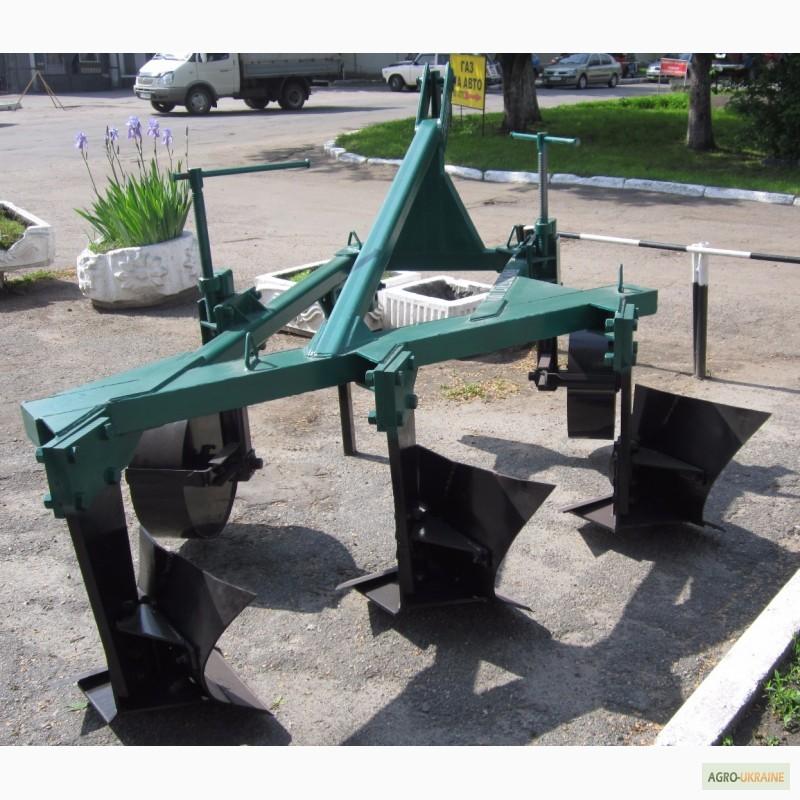

High-speed mounted plow PSHN-3 - intended for plowing undergrains and technical crops to a depth of 12-30 cm. various soils, not clogged with stones, slate and other obstacles, with specific resistance up to 0.1 MPa, soil hardness up to 4 MPa and humidity up to 30%.

TECHNICAL CHARACTERISTICS

Hinged type

The plow is aggregated with tractors: DT-75M, MTZ-1221, T-150K, VT-100, KhTZ-16131.

Overallplow dimensions, mm

length 2800
width 2120
height 1475

Body grip width, cm 60

Number of cases, pcs. 3

Productivity per hour of main work, ha/hour. 1.4-2.0

Service personnel 1 tractor driver(//tractor-service.com)

Ground clearance, mm 350

The minimum turning radius at the outermost point, m 7.3

Maximum plowing depth, cm up to 30

The distance from the support plane of the housing to the lower plane, mm 700

Working speed, km / h. to 10

Transport speed, km / h. to 25

Specific fuel consumption during shift work, kg / ha 9-15

Service life, 8 years

Weight of the plow, kg 750

PSHN-3 high-speed mounted plow - price 44,000 UAH

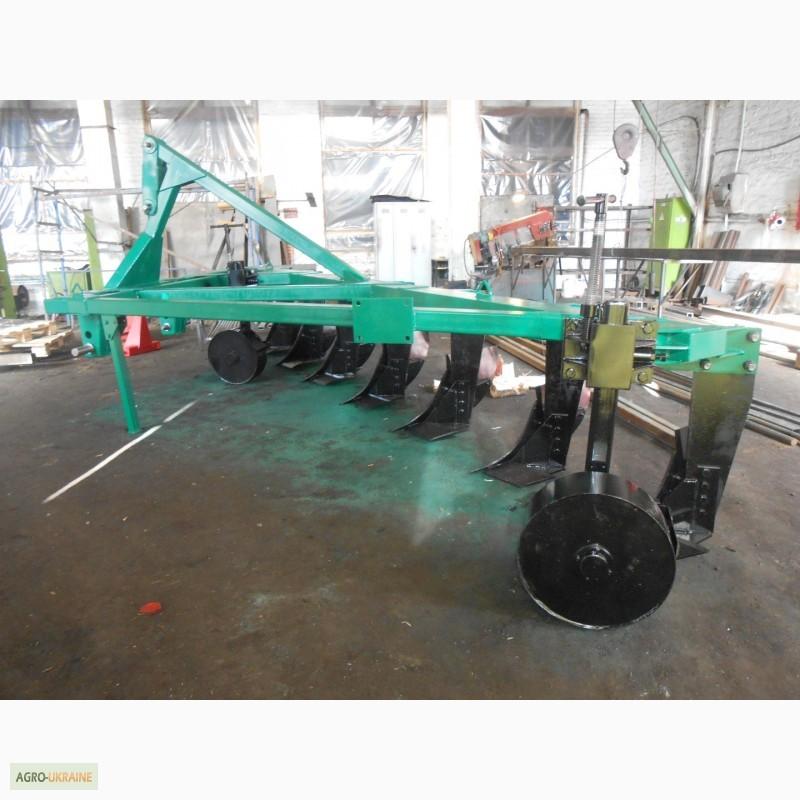

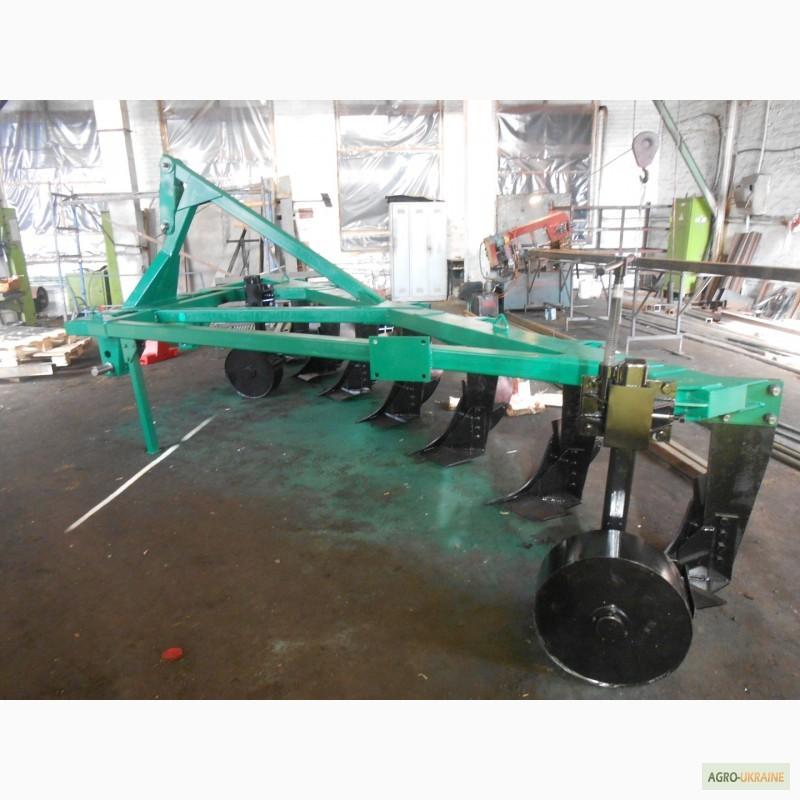

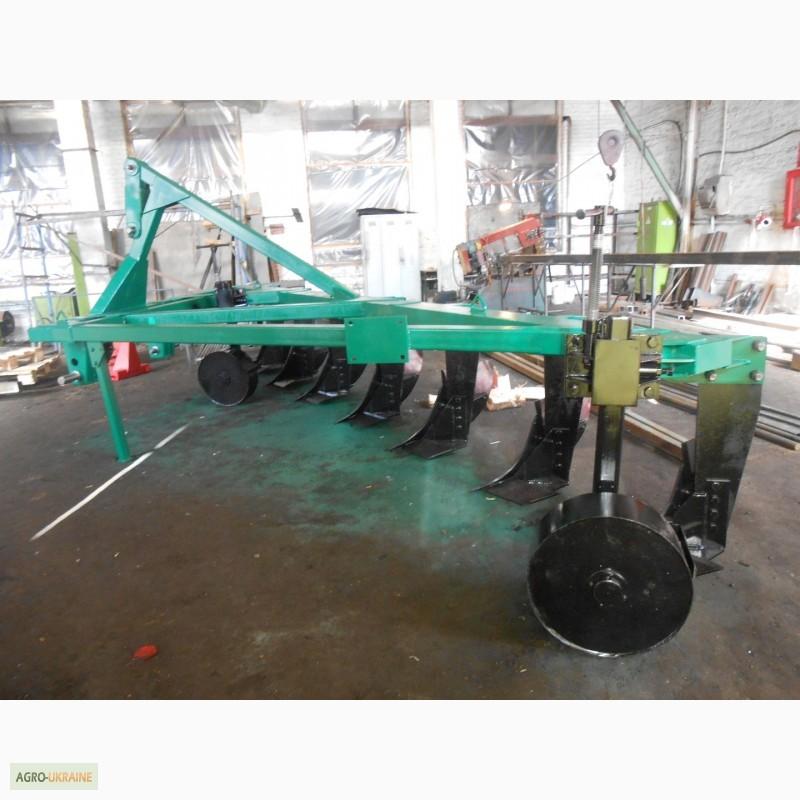

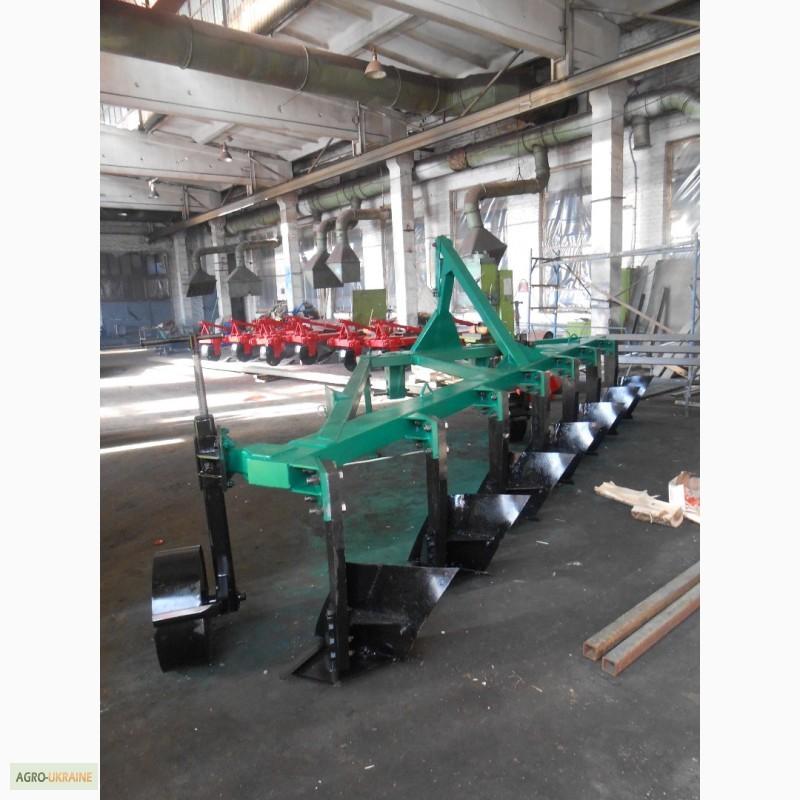

High-speed mounted plow PSHN-7 - UAH 100,000
