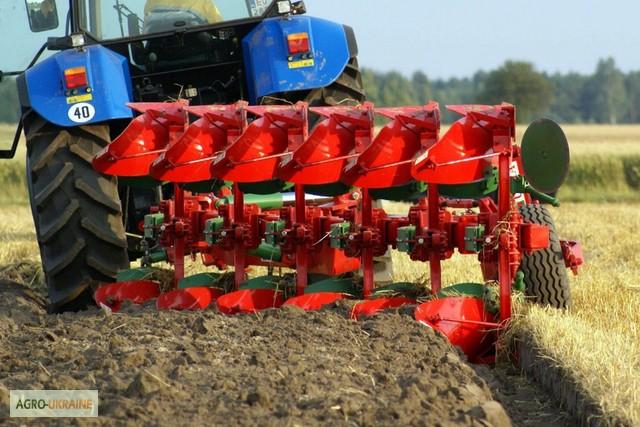

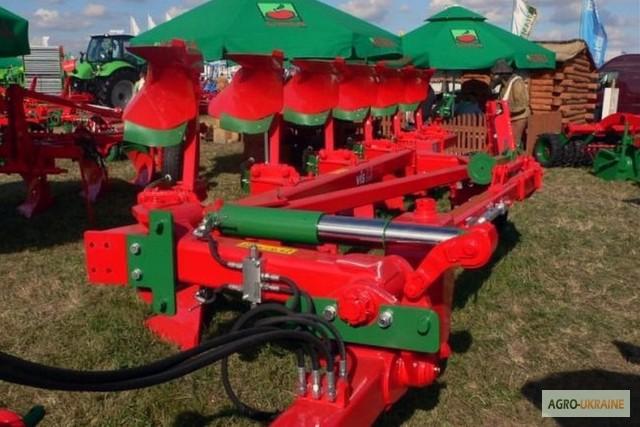

Plow орогорный полунавесной UNIA VIS VIS L / XL, Volyn region.

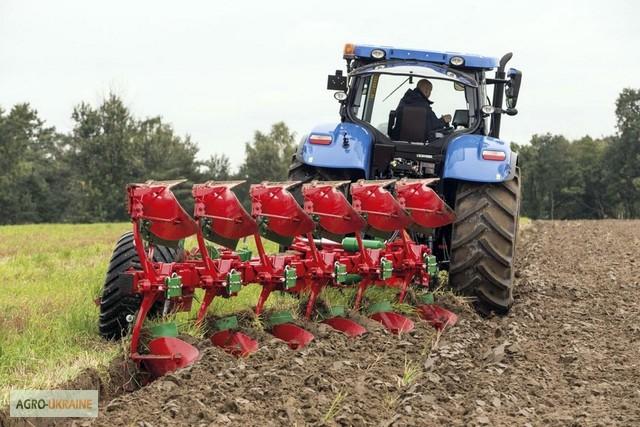

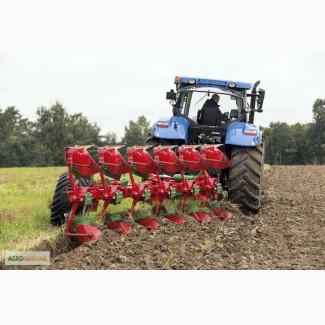

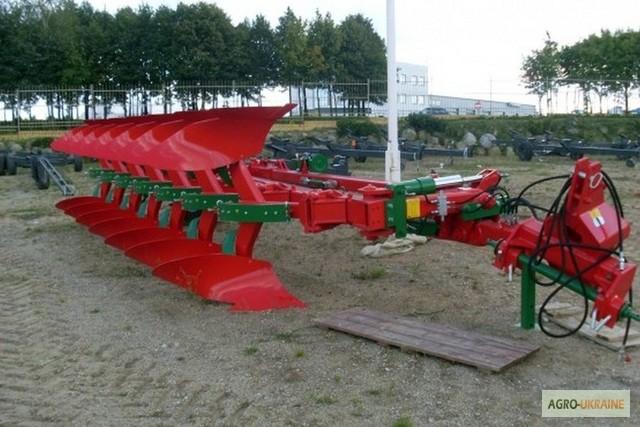

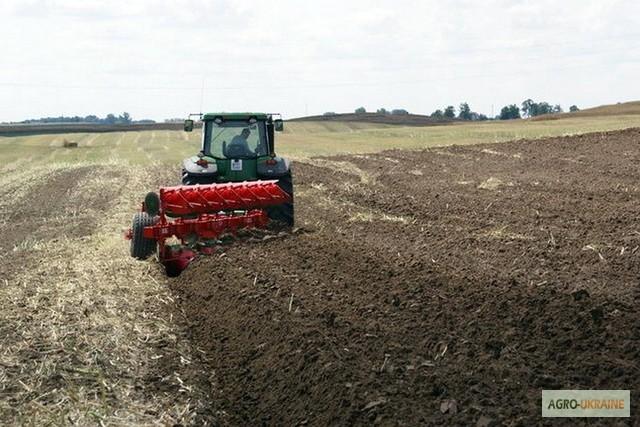

UNIA VIS L - 4-6 body plows on a 140x140 frame for tractors from 120 hp equipped with proven blades with a working width of up to 48 cm, as well as systems of screw or spring protection. A strong frame with a special design and a cross section of 180x180 is made of hardened steel of increased strength and stability, which makes the work of the plow durable.

The plow rotation system is supported by two hydraulic cylinders.

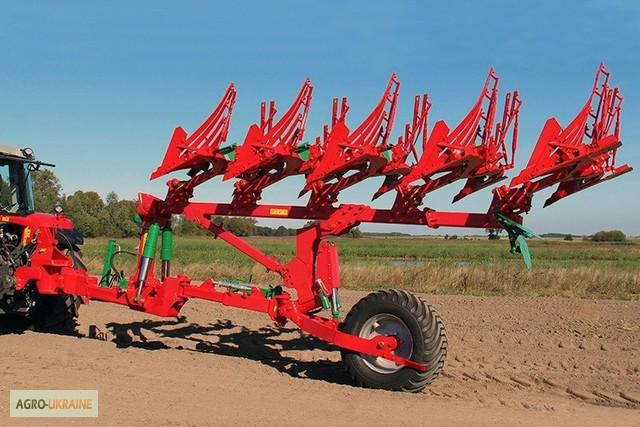

Koleso support-transport 550 / 45x22.5.

The possibility of installing a skimmer and adding discs to each section of the plow.

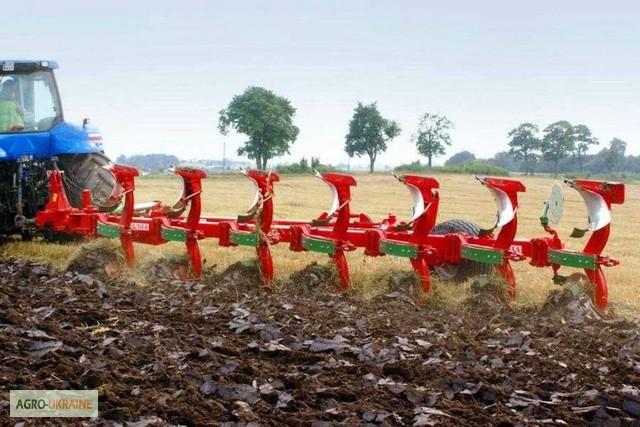

2disc knives ø480mm with screw protection.

2 disc knives ø480mm with spring protection (in version S).

Hydraulic beam for a plow.

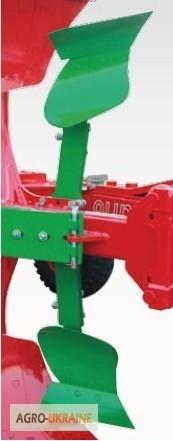

Pre-ploughs, which are intended for a large amount of crop residues (additional equipment).

Advantages of the plow:
-reliable construction;
-minimal resistance when plowing;
-quality covering of harvest residues;
-effective protection of plow elements;
- turnover stability;
- ease of setup.(//tractor-service.com)

Standard equipment:
- axle suspensions ø70-965 / ø36 mm.;
- durable 140 x 140 x 8 mm (VIS L) or frame 180 x 180 x 8 mm (VIS XL);
-ZX plow body with silver;
- screw for fastening (M16 x 81 mm);
-non-stop spring protection (7 spring leaves) (S);
-variable stepped regulation of the width of the arch: 36, 42 or 48 cm.;
- transport wheel 550/45 x 22.5; 168
-дисковый нож ø480 мм с винтовой или пружинной защитой;
- the distance between the bodies is 100 cm.;
- the distance under the frame is 85 cm.

Features:

VIS L 4+ 4+1 5+ 5+1 S 4+ S 4+1 S 5+ S 5+1
Mass (kg) 2700 2950 2980 3230 3030 3250 3280 2590
Required power (hp) 120÷140 140÷160 140÷160 160÷180 130÷150 140÷170 140÷170 170÷190

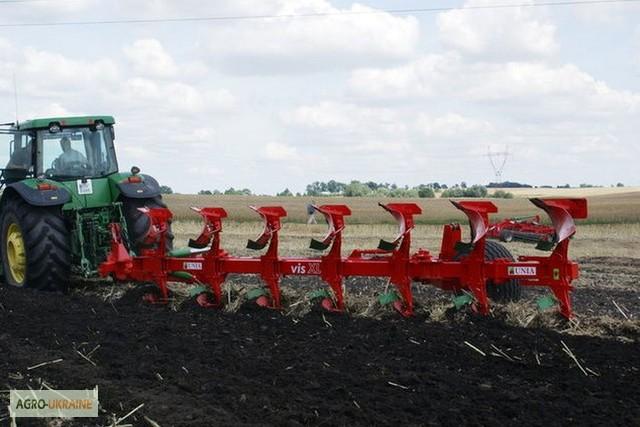

VIS XL 6+ 6+1 7+ 7+1 S 6+ S 6+1 S 7+ S 7+1
Mass (kg) 3260 3510 3630 3890 3620 3930 4050 4370
Required power (hp) 170÷200 210÷270 210÷270 250÷310 180÷200 220÷280 220÷280 260÷320
