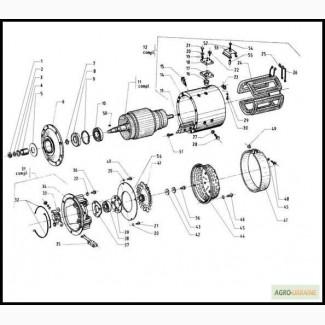

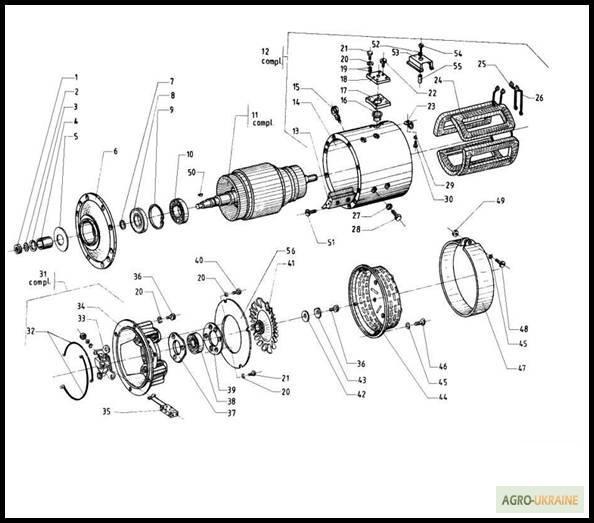

Transmission electric traction motor for loader EB 687, Kharkiv region.

Position no.
Catalog No.
Name
Pieces

TRANSMISSION
Traction electric motor

338689/338690 260028 00.00
Traction electric motor DS 3.6/7.5/14-01
1
1
338755/338756 62012-2 409815.005.86
Nut M18
1
2
338757/338758 62012-2 409898.033.86
Safety washer
1
3
320087/320088 62012-2 409891.046.82
Shim washer
1
4
338661/338662 62012-2 401161.22.8
Trumpet
1
5
338663/338664 62012-2 40989.008.77
Safety cover
1
6
338665/338666 62012.2 403.548.052.85
Front shield
1
7
338667/338668 62012-2 509265.003.8
Spring ring
1
8
218000 BDS 5954-83
Sealing B35x80x1
1
9
338669/338670 6212-2 409891.068.85
Limiting washer
1
10
214030 BDS 4884-78
Ball bearing 6307-2sР6E
1
11
338685/338686 260028.3000
Rotor
1
12
338687/338688 260028.5000
Stator
1
13
263995/165273 26058.5700
Pole
4
14
338671/33/672 62012-2 403162.070.85
Body
1
15
177921/177922 62012-2 409581.100.84
Eye-bolt M10
1
16
135240/165266
Bushing
1
17
135118/165267 62012-2 506388.006.80
The basis
1
18
135096/165268 62012-2 506122.022.80
Terminal gasket
1
19
338725/338726 ZN 123-85
Washer AM8
8
20
208638/209865 BDS 833-82/Сu
Washer 2-8H
14
21
2141249/214251 BDS 2551-71/5,6
Bolt I M8x16-6g
7
22
218001/218002 BDS 1359-83
Screw I AM6x30-5.6
2
23
155288/165274 263024.1200(//tractor-service.com)
Bracket
1
24
338691/338692 26058.5800
Coils (assembled)
1
25
338697/338698 260028.5200
Output wire A2
1
26
338699/338700 260028.5100
Output wire A1
1
27
27067/209866 BDS 833-82
Washer 2-10H
8
28
214257/214259 BDS 2551-71/5,6
Bolt M10x25-6g
8
29
20765/208981 BDS 833-82
Washer 2-6H
1
30
219233/215242 BDS 1358-72/5,6
Screw I M6x16-6g
1
31
338701/338702 260028.1000
Shield with brush holders
1
32
153893/165275 26058.0800
Connecting wire
2
33
338703/338704 28350 2202
Brush holder
4
34
338673/338674 62012-2 403544.045.85
Rear shield
1
35
168355/165276 260017.1001
Brush M50
4
36
209154/214261 BDS 2551-71/5,6
Bolt I M8x20-6g
5
37
135214/135215 62012-2 403144.013.80
Inner bearing cover
1
38
216266 BDS 4884-78
Ball bearing 6306-2zР6Е
1
39
177917/177918 6212-2 403142.011.80
External bearing cover
1
40
211722/214253 BDS 2551-71/5,6
Bolt I M8x30-6g
3
41
153890/165277 26058.0400
Fan
1
42
135268/035269 62012-2 409898.020.81
Washer
1
43
135265/135267 62012-2 409898.019.81
Safety washer
1
44
338705/338706 29830.1306
Casing
1
45
207064/214020 BDS 833-82
Washer 2-5H
5
46
215848/215850 BDS 123-72/5,6
Bolt I M5x10-6g
4
47
338675/338676 62012-2 505475.001.85
Belt
1
48
220744/218003 BDS 138-72/5,6
Screw I M5x22-8g
1
