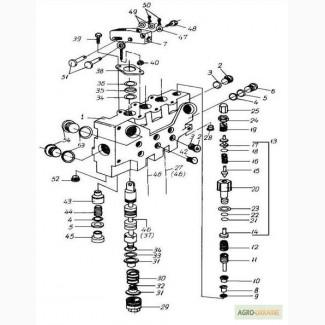

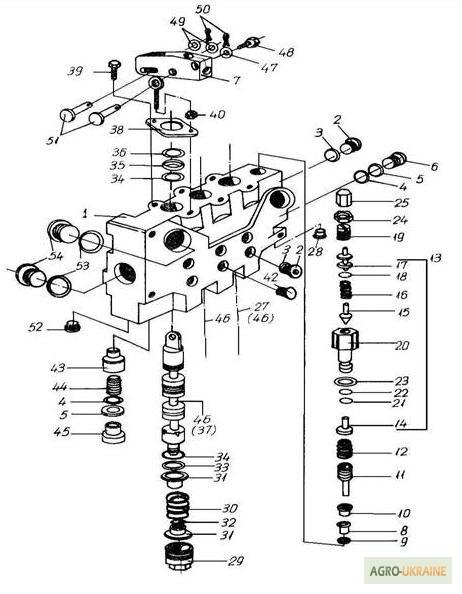

Hydraulic distributor for loaders DV 1784, DV 1786, DV 1788, DV 1792, Kharkiv region.

Position number
Catalog No.
Name

12670 00.00.00
Hydraulic distributor with manual control.
РХ80 2ВАА-11-11
1
12670 01.00.01
Body
2
12680 00.00.28
Traffic jam
3
BDS 3609-73
Ring I A22x27
4
BDS 7947-85
"0"-ring 1-12.5x1.8-2
5
ON-04 69104-82
Ring PB1-16x1.00x1.30
6
12680 03.00.01
Traffic jam
7
12680 08.00.01
Knee
8
12680 04.00.01
Traffic jam
9
BDS 7947-8S
"O" ring 2-20х2.65-2
10
12680 00.00.25
Nest
11
12680 05.00.00
Valve (assembled)
12
12680 05.00.00
Spring
13
12680 06.00.00
Valve (assembled)
14
12620 07.00.04
Sleeve
15
12620 07.00.05
Valve
16
12620 07.00.06
Spring
17
12B80 06.01.01
Pusher
18
BDS 7947-85
"O"-ring 1-3.15x1.8-2
19
12680 06.00.09
Screw
20
12680 06.00.01
Body
21
BDS 7947-85
"O" ring 1-13.2x1.8-2
22
ON-04 69104-82
RV ring,-17x1.00x1.30
23
BDS 7947-85
"O''-ring 1-1.8x2.65-2
24
ON-04 55874-71
Nut
15
12620 67.00L1
Cover
26(//tractor-service.com)
12680 00.00.24
Traffic jam
27
12680 00.00.13
Single action plunger
21
ON-04 64821-76
Traffic jam 25
29
12680 00.00.04
Cover
30
12680 00.00.14
Spring
31
12680 00.00.11
Plate
32
12680 00.00.20
Spring ring
33
12680 00.00.10
Washer
34
12680 00.00.09
Special cuff
35
12680 00.00.20
Washer
36
12680 00.00.19
Cleaning ring
37
12680 00.00.06
Single action plunger
38
12680 00.00.40
Cover
39
BDS 2171-83
Screw IM8x14-S,8
40
BD C 1250-83
Nut 2 M8-5
41
12680 00.00.32
Special screw
42
ON-04 64821-75
Traffic jam 20
43
12680 00.00.43
Cover
44
12680 00.00.44
Spring
45
12680 07.00.01
Traffic jam
46
12680 00.00.05
Double action plunger
47
BDS 833-82
Washer 2-8H
48
BDS 1234-85
Bolt 1 N8x20-6.8
49
12680 08.00.08
Washer
50
BDS 55-77
Cotter pin 2x15
51
12680 08.00.03
Pin
52
ON-04 64821-76
Traffic jam 30
53
BDS 3609-73
Ring I A27x33-M1
