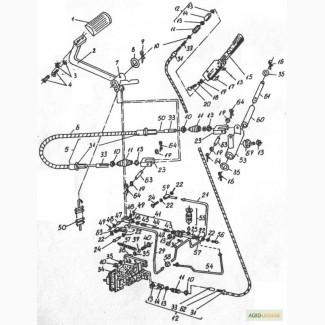

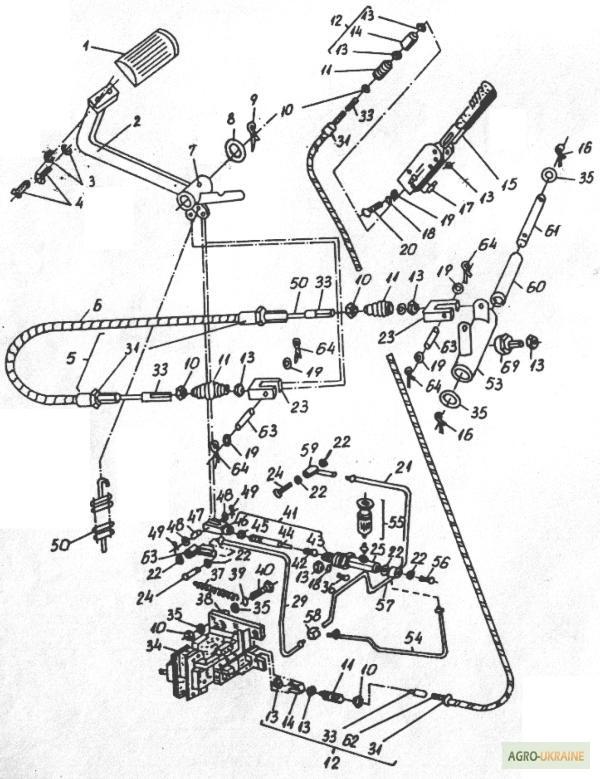

Brake system for loaders DV 1784, DV 1786, DV 1788, DV 1792, Kharkiv region.

Number of Positions
Catalog No.
Name
-
1790.33.20 08.00.00
Brake system
1
1784.33 02.00.01
Pedal
2
1790.33.20 08.01.00
Brake pedal (assembled)
3
BDS 833-82
Washer 2-10H
4
BDS 1232-86
Bolt I M 10x20-5.6
5
1790.33.20 08.02.00
Cable (assembled)
5
GOST 3053-80
Steel cable 4-Г-В-С-Н-1372 L 140/L== 1260
6
ON-04 61246-72
Protective shell 45x9.2x518
7
BDS 1640-81
Press-butter machine 1.1
8
BDS 14494-78
Washer N20
9
BDS 55-77
Cotter pin 4x32
10
BDS 744-83
Nut M12-S
11
1784.33 02.00.05
Fuse
12
1784.33 02.08.00
Brake cable (assembled)
13
BDS 744-83
Nut M8-5
14
1784.33 02.08.01
Plug
15
5743 00.00.00
Manual brake
16
BDS 55-77
Cotter pin 3.2x20
17
1784.33 02.00.10
Bushing
18
BDS 833-82
Washer 2-8H
19
BDS 14494-78
Washer M8
20
BDS 1230-85
Bolt I M8x50-8.8
21
1790.33.20 04.12.00
Right pipe (assembled)
22
BDS 3609-73
Ring A12x18
23
1790.33.20 08.02.01
Fork
23
BDS 3657-73
Connecting plug A8x32
24
1790.33.20 04.00.02
Cap nut bolt
25
KtM 702
Main brake cylinder at 25S=30
29
1790.33 20 04.11.00
Left pipe (assembled)
31
1784.33 02.08.02
Nipple
33
1784.33 02.08.03
Tip
34
6410 00.00.00
Disc brake
35(//tractor-service.com)
BDS 14494-78
Washer M12
36
BDS 1232-86
Bolt IM 8x20-5.6
37
1784.33 02.00.09
Spring
38
1784.33 02.00.12
Plate
39
BDS 833-82
Washer 2-12H
40
BDS 1232-86
Bolt 1 M12x50-5.6
41
1790.33.20 04.08.00
Piston rod (assembled)
42
7002 02.05
Limiter
43
BDS 1980-77
Pin cylindrical 2-3h11x20
44
1784.33 02.03.01
Tip
45
BDS 1262-83
Nut 2M10-5
46
7002 02.06
Fork
46
7002 02.06-01
Fork
47
BDS 3048-78
Here is B 10x28
48
BDS 14494-78
Washer M10
49
BDS 55-77
Cotter pin 2.5x16
50
2733 14.00.07
Spring
53
1784.33.20 03.01.00
Plug (assembled)
54
1790.33.20 04.10.00
Pipe (assembled)
55
7075 M 08.00.00
Reservoir of brake fluid (assembled)
55
687.33.2 03.06.00.00
Reservoir of brake fluid (as a whole)
56
1790.33.20 04.00.02
Cap nut bolt
57
1790.33.20 04.00.04
Cap nut
58
2733 52.00.02
Intermediate tee
59
1790.33.20 07.04.00
Head (assembled)
60
1784.33.20 03.01.01
Bushing
61
1784.33.20 03.00.02
Here
62
GOST 3063-66
Steel cable 4-Г-Б-СС-Н-140 L=1260
63
BDS 5282-73
Oh 8x30/25
64
BDS 55-77
Cotter pin 2x20
65
2733 17.00.07
Spring
66
BDS 7947-85
"O" ring 2-19x3-3
69
1784.33.20 03.00.01
Traffic jam
69
BDS 1230-85
Bolt N8x30-5.6
