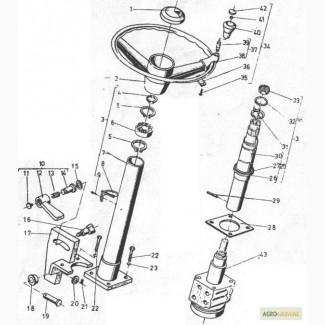

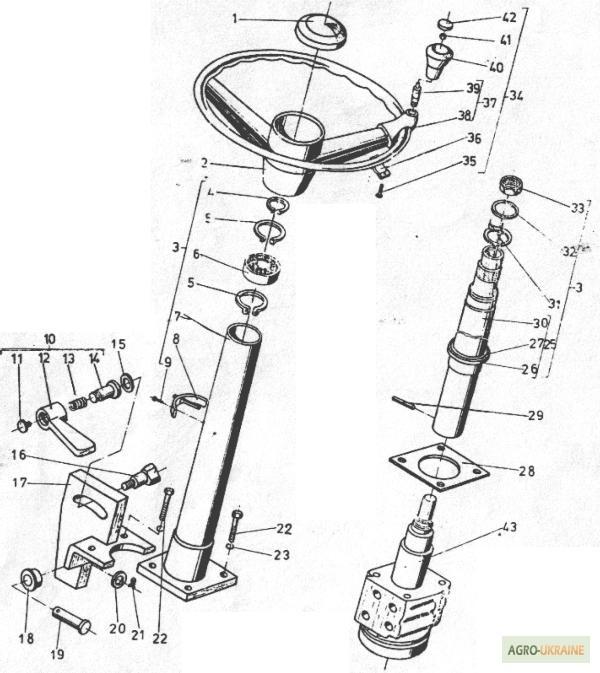

Steering column for loaders DV 1784, DV 1786, DV 1788, DV 1792, Kharkiv region.

Number of Positions
Catalog No.
Name
-
8158.3 00.00.00
Steering column
1
5756.1 00.00.00
Sound signal button
2
5848 00.00.00
Steeringwheel
3
8158.4 03.00.00
Steering column
4
BDS 2170-77
Ring f 25
5
BDS 2170-75
Ring A47
6
BDS 4884-78
Bearing 80105
7
8158.4 03.01.00
Pipe (assembled)
8
8162 01.00.00
Contact
9
BDS 13L9-83
Screw M5x10-S.6
10
8158 01.00.00
Handle (assembled)
11
8158 01.00.03
Screw
12
8158 01.01.00
Handle
13
8158 01.00.01
Spring
14
8158 01.00.02
Bushing
15
8158 00.00.02
Spacer sleeve
16
8158 00.00.01
Bolt
17
8158 02.00.00
Bracket (assembled)
18
8158 00.00.04
Bushing
19
8158 00.00.03
Here
20
BDS 206-78
Washer НМ18(//tractor-service.com)
21
BDS 55-77
Cotter pin 5x28
22
BDS 1230-85
Bolt I M10x30-8.8
23
BDS 833-82
Spring washer
25
8158.4 03.02.00
Shaft (assembled)
26
8162.4 03.01.00
Contact ring
27
8162 03.00.01
Ring
28
8158 00.00.05
Sealing
29
Ts85-340 00.00.01
Pin
30
8158 02/03/01
Shaft
31
8158 02.00.00
Washer
32
BDS 833-82
Spring washer 18N
33
BDS 122-83
Nut M18x .S-8
34
7003 00.03.00
Handle (assembled)
35
BDS 13S9-83
Screw M73M5-0-S.6
36
7003 00.03.02
Bracket
37
7003 00.03.01.00
Foundation (as a whole)
38
BDS 9802-P4
The basis
39
7003 00.03.01.01
Here is
40
7003 00.03.02.00
Handle
41
BDS 12'9.73
Nut MS-L
42
7003 00.03.01
Cover
43
6201 00.00.00-01
Гидростатическое управление ХУ85-0/1
