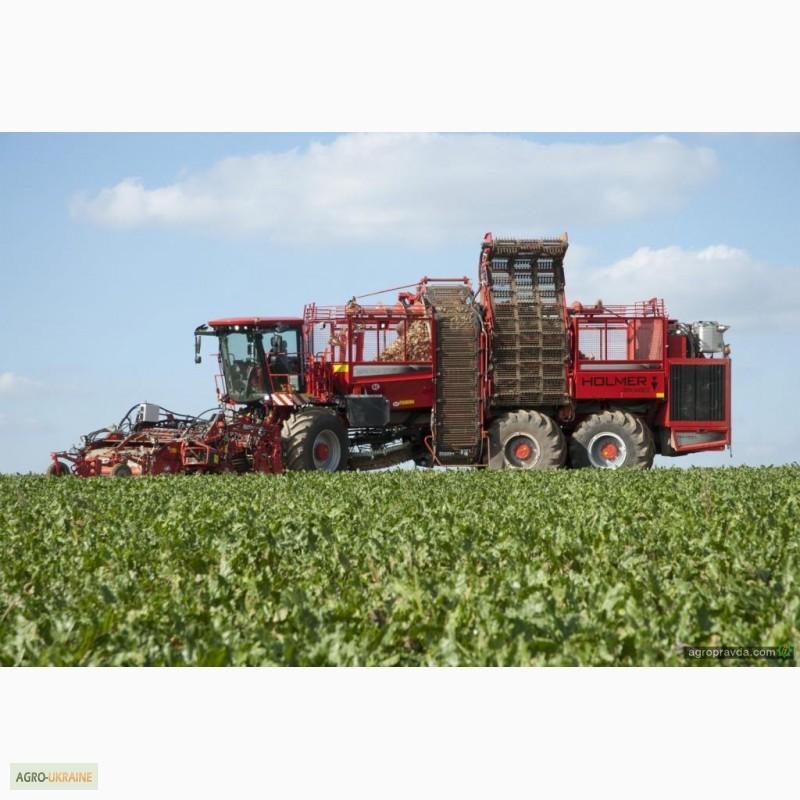

Beet harvester Holmer Terra Dos T2 in installments, Sumy region.

Working method of the combine:

beetroot digging is carried out frontally from the soil; by choice, wide spread of the top for the smell, or loading directly onto nearby trailers (supplied as additional equipment); the width of the spread of the top is infinitely adjustable from the driver's cabin;
ботвоудалитель раздробляет ботву свеклы;
по выбору широкоразброс ботвы для запашки, или же загрузка непосредственно на идущие рядом прицепы (поставляется как дополнительное оборудование); ширина разброса ботвы бесступенчато регулируется из кабины водителя;
6 adjustable top water cutters provide optimal quality of the top section;
digging coulters remove beets from the soil;
with extreme soil conditions or with heavily weeded plantations, a 2-stage connection of the swinging drill is possible;
beet cleaning is carried out carefully, but at the same time effectively, through 8 spiral rolls, 1 separatingelevator and 3 separating stars.
constant optimal weight distribution on both axles, regardless of whether the hopper is full or empty;
large-scale Terra-tyres guarantee careful soil care;
beets are transported through the ring elevator to the hopper and then evenly distributed with the help of the hopper auger;
the hopper is emptied through an unloading belt;
the unloading process is accelerated due to the presence of a longitudinal and transverse scraper bottom.
Combine Terra Dos guarantees you:

careful attitude to the soil;
good prerequisites for subsequent soil treatment with minimal costs;(//tractor-service.com)
small turning radius (9.5 m);
excellent qualities on the slope when connecting the axle support.

Main
Manufactured by Holmer
Country of manufacture Germany
Габаритные размеры
Mass 1800.0(kg)
Additional characteristics
semi-mounted combine harvester type
number of removed rows 1
functions: digging, cutting tops, transportation on a trailer
Cleaning accuracy 98%
Productivity 0.8-0.12 ha/h Ha/h
The lifting height of carrots on the conveyor is 3.65 m.
The width of the conveyor is 50 cm.
It is aggregated with an 80 hp tractor.
Weight 1800 kg
