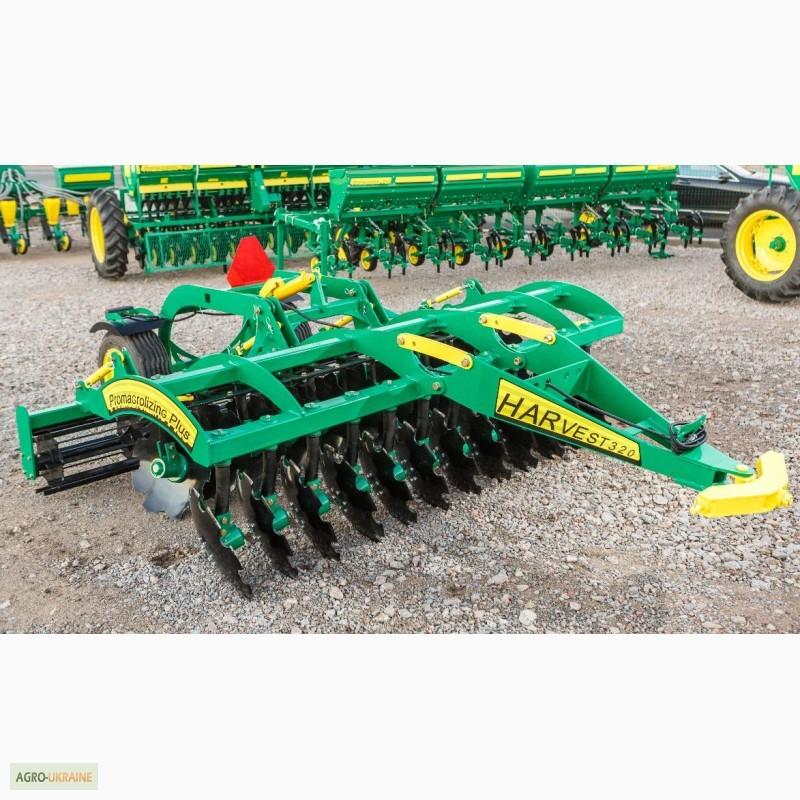

Harvest 320 /Pallada 3200 Trailed disc harrow (Bellota disc) Harvest disc harrow, Dnipropetrovsk region.

Harvest 320 /Pallada 3200 Harrow trailed disk harrow (Bellota disk)
Disk harrow Harvest 320 is intended for use in soil and climatic conditions with soil moisture up to 27%, as well as in fields with a large amount of crop residues. Each disc of the harrow is installed on an individual stand, which allows the harrow to work in fields with a large amount of plant residues and weeds, excluding the winding of plant residues on the axis of the disc and clogging of the space between the discs, and also ensures high maintainability of the unit. The design of the unit provides smooth adjustment of the angle of attack of each row of disks within the range from 0° to 30°, which allows you to optimally adjust the harrow for different types of soil.
Characteristics
Harvest brand
Type Trailed Harrow
Gripping width, m 3.2
Working speed, km/h 12
Productivity, ha/h 3.8
Overall dimensions, mm 4430x3350x1520(//tractor-service.com)
Mass, kg 1750
It is aggregated with tractors with a capacity of at least hp. 90
Processing depth, mm 100-140
Angle of attack of discs, degrees. 0...30
Number of cutting units, pcs. 24
Number of rows, pcs. 2
Distance between rows of disks, mm 950
Diameter of working bodies, mm 560
Distance between disk blades, mm 250
