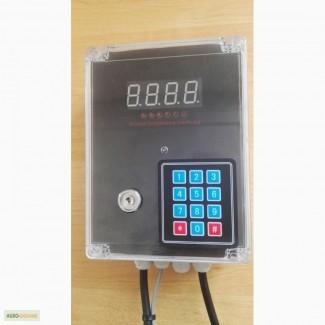

Ioil liquid dosing controller, Kyiv

Systems for dispensing water, various liquids

We offer for sale water dosing systems and various liquids.
We develop systems for your needs.
The dispenser is intended for use in technological processes in bakery and confectionery production when adding water to the dough and other ingredients; at meat processing plants when adding water to minced meat or dough during the production ofsemi-finished products; in the dairy industry for diluting milk powder; for filling kvass, cognac, wine and similar products into containers; for adding water to dry building mixes during the production of concrete, aerated concrete, foam concrete; building, cement and plaster mortars.
All equipment is of high quality and reliability.
Acceptable prices and pleasant development terms.
Any form of payment.

http://minizapravka.com.ua/

liquid dispensers of the "ioil" series, for use in food, chemical, construction, metallurgical and mining industries.

designation

intended for the formation of a given dose of various liquids.

Dosable liquids:

water
synthetic, mineral, vegetable oils
acids and alkalis
chemical additives and reagents
alcohol
features of dispensers of the "ioil" series:

a wide range of regulation of the volume of liquid dosing (from 1 l to 10,000 l)
the use of electromagnetic shut-off valves and calibrated flowmeters (Italy) made it possible to achieve a dosing error of 1%.
thanks to the use in electromagnetic valves, sealed from Viton and Teflon, the working temperature of the fluid can be from -10 to +180 °С
dispensers work in a wide range of power supply voltages, i.e. 12(24) to 220V alternating current with a frequency of 50 Hz.
preservation of dosing parameters when the power is turned off.
designs of dispensers:

the dispenser consists of a flow meter and a brass shut-off solenoid valve (stainless steel is used when working with aggressive liquids), and a remote control panel.

dispenser control:

with the help of a remote control.
the dose value (in ml or liters) is set on the control panel using the increase and decrease buttons. dose discharge is carried out with the start button. it is possible to remotely start the discharge of the dose with the help of a remote button (pedal or relay).
with the help of a computer.
the control panel is connected to the computer via the rs485 interface. the software supplied with the dispenser allows you to control one or more dispensers, and can also interact with any scada system used in the enterprise.
additional options for ioil dispensers:

control from a computer (ioil) (at the same time, it is possible to operate the device in a given sequence or at intervals specified by the user, as well as keeping a work log)
flow meter and stainless steel shut-off valve (ioil)
working fluids - hot oil or oil with impurities (ioil)(//tractor-service.com)
the dosing device can be mounted in a dust- and moisture-proof metal cabinet with IP65 protection.

authorization key: ds1990a f5 or analogues event log: 1023 entries working temperature approx. environment: -25...+40 without direct sunlight protection from external influences: ip67 type of connected sensor: with 1 or 2 reed switches. (optional hall sensor) weight: 0.54 kg warranty: 12 months. input "resolution": there is a maximum pulse frequency from the flow sensor: 1.3 kHz totalizer output: 1l, 1/10l user log: 112 data exchange interface: rs-485 voltage: 220v 50hz or 12v DC (option) power of connected isp. devices: up to 3a 250v x 2 "critical level" input: yes, shared use
The ioil dosing controller allows you to automate the process of dosing liquid substances, it is used as part of automatic filling machines when dosing the same volume multiple times or each time a different volume.

the controller is successfully used in the composition of mini gas stations, in the cosmetic, chemical industry, and in food production.

dosing ranges

1) from 1 ml to 9999 ml, the resolution of the task is up to 0.001 ml.

2) from 1 l to 9999 l, discreteness of the task up to 0.001 l

accuracy depends on the applied flow sensor, the controller itself does not introduce errors.

to assemble the pouring machine, it is enough to complete with electronic valve orpump, flow sensor + locksmith fittings.

working principle:

1) the user presents the key tag (if authorization is enabled)

2) the user dials the required amount of volume that needs to be shipped

3) the controller starts the executive device (pump, valve)

4) upon reaching the required volume and length, the controller turns off the executive device and issues a signal to the operator, making an entry in the log about the operation.

5) if the controller's operating mode is a conveyor, repeated dosing will start automatically when the "permission" terminal is closed, otherwise the controller will go into standby mode for new tasks.

the event log, the user base are stored in the controller, information uploading or editing occurs in text format when connected to a PC via an rs-485/usb converter.

it is possible to rework the device according to your wishes

technical characteristics

dosing ranges

1) from 1 ml to 9999 ml, the resolution of the task is up to 0.001 ml.

2) from 1 l to 9999 l, discreteness of the task up to 0.001 l

accuracy depends on the applied flow sensor, the controller itself does not introduce errors.

to assemble the pouring machine, it is enough to equip it with an electronic valve or a pump, a flow sensor + a fitting.
