Zil-133GYA spare parts. - Checkpoint, cabin, rear bridge, etc., Transcarpathian region.

ZIL-133GYA spare parts for sale. - Check point, cabin, rear axle, etc.

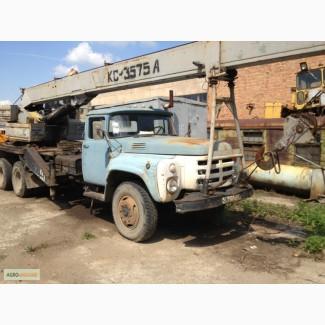

crane chassis ks 3575a - without crane installation.
Details regarding the completeness, condition, cost exclusively by phone Mykola 0505xxxxxx(//tractor-service.com)

The ZIL-133GYA car is equipped with a KamAZ-740 engine with a capacity of 210 liters. with. in a special configuration intended only for these cars. The power unit consists of a four-stroke V-shaped eight-cylinderdiesel liquid cooling, a two-disc clutch and a ten-speed gearbox. A separate head made of aluminum alloy is installed on each cylinder. To facilitate starting the engine at low temperatures, ZIL-133GYA vehicles use electric torch and pre-start heaters. The oil radiator of the tubular-plate type, two-row, is installed in front of the radiator of the engine cooling system. Dry two-disc clutch with hydraulic drive and pneumatic amplifier. The ten-speed gearbox consists of a basic five-speed gearbox and a front auxiliary gear divider. The gear shifting mechanism of the divider is controlled by a pneumomechanical system with a preliminary (preselector) gear selection. The car uses a through cardan transmission. The gearbox of the intermediate bridge is distinguished by the fact that it is equipped with an interaxial differential with a locking mechanism. The main gears of the leading bridges are single hypoid. The locking mechanism is controlled by a pneumatic valve installed in the driver's cabin. The front suspension on two longitudinal semi-elliptical springs is equipped with two double-acting telescopic shock absorbers. The rear suspension is made on two longitudinal semi-elliptical balancing springs with reactive rods.

Power steering, combined in one unit with the steering mechanism. The steering mechanism has a screw with a nut on circulating balls and a piston rod with a toothed sector. The screw of the steering mechanism is connected to the steering column by a cardan shaft. The power steering oil cooling radiator is installed in front of the engine cooling radiator and is a U-shaped ribbed aluminum pipe. Brakes include four main brake systems: service brake system, reserve brake system, parking brake system, auxiliary brake system. The mechanism of the auxiliary brake system is a motor brake valve installed in a special housing to which the nozzles of the intake pipes of the muffler fit. The valve is connected to the pneumatic cylinder of the drive. DC electrical equipment with two nominal voltages: 24 V - in start-up mode and 12 V - in other modes. Two 6ST-190TR batteries are installed on the car. Generator type G287B. The nominal current produced by the generator is 85 A. Starter ST142B with a capacity of 10.5 hp. The cabin of the ZIL-133VYA is similar to the cabin of thetruck ZIL-130. The only noticeable difference is the modified, far forward radiator grille. The cabin is ventilated through the ventilation hatch in the roof of the cabin, the lowering windows and the rotating windows of the cabin doors. In addition, fresh air can enter the cabin through the ventilation channel in the right mudguard. The cabin is three-seater: a separate driver's seat and a two-seater passenger seat. There is a place for storing tools under the passenger seat. The mechanism of the windshield wiper is equipped with a pneumatic drive with stepless adjustment of the speed of movement of two brushes. The windshield washer is actuated by a vacuumpump with a foot drive located under the driver's left foot on the inclined sheet of the cabin floor. Cab doors are opened by pressing the button in the door handles.
