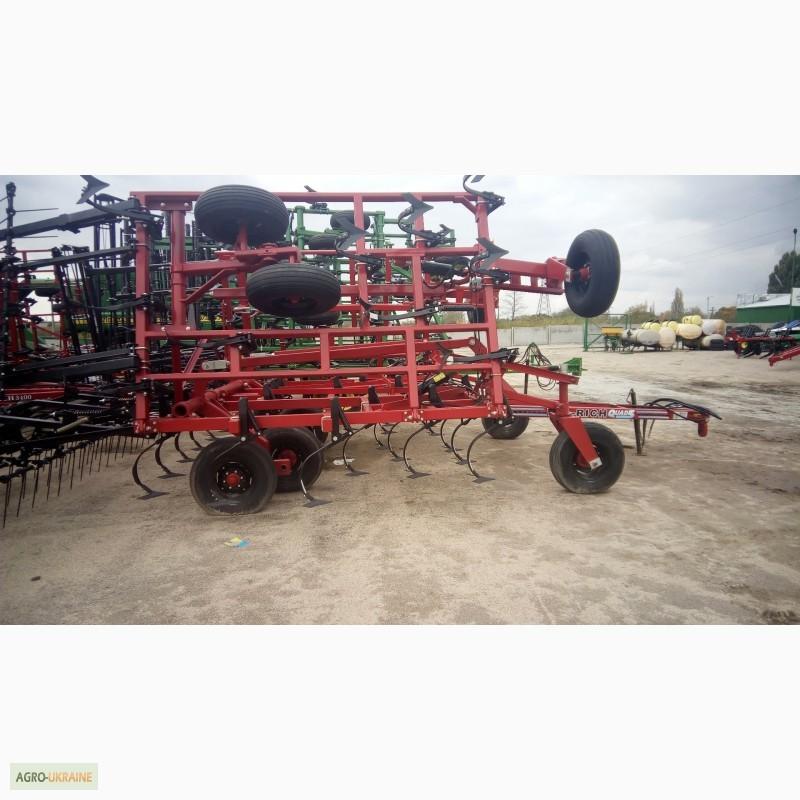

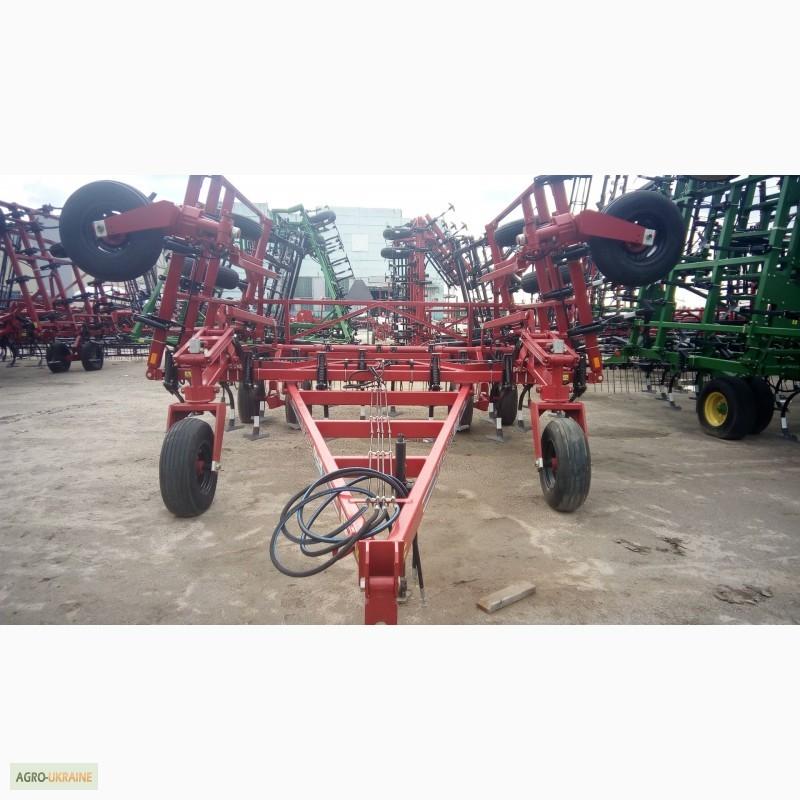

Wil-Rich Quad-5 8m cultivator, Kirovohrad region.

Wil-Rich Quad-5 cultivator 8m working width with screw rollers
3 sections
The width between the legs is 178 mm.
Aggregates with tractors 175-200 hp.
Weight (with reinforced racks) - 6490 kg
After major repairs. The width of the capture is 8 m.

Wil-Rich Quad-5 field cultivators are intended for pre-sowing soil treatment. High-quality soil treatment before sowing is one of the most important components of the success of every agricultural economy. Choosing the right equipment solves the problem of weed control and creates ideal conditions for sowing seeds, as well as reduces damage to the fertile soil layer and its compaction.
A feature of the cultivator is a floating coupling that follows the relief of the field, ensuring uniform penetration into the soil,
front self-installing copyingwheels on the main frame are equipped with shock absorbers for increased stability.(//tractor-service.com)
Tandem balancers are included in the standard equipment of all main frames and wings. All aggregates with a width of more than 9 meters are equipped with 12-plytires on the main frame.

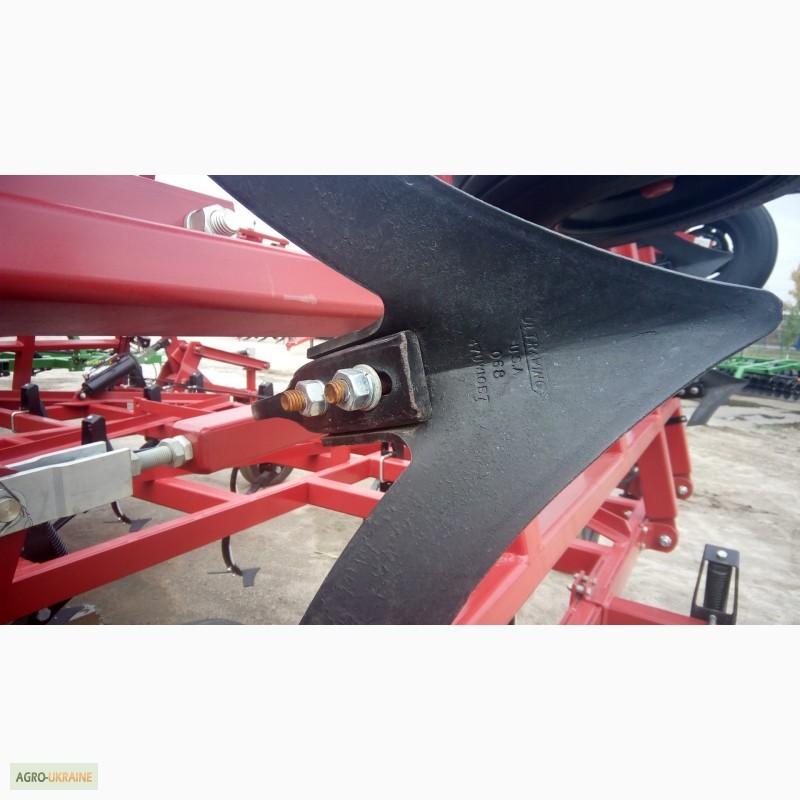

The paw is easily removed. Wide hinged knot.

Equipment.
Frame with 6 bars 76 x 100 mm
The length of the frame is 356 cm (from the front to the back)
The distance between the rows is 89 cm.

Simple front alignment, front self-installingcopying wheels, wide wheel niches give

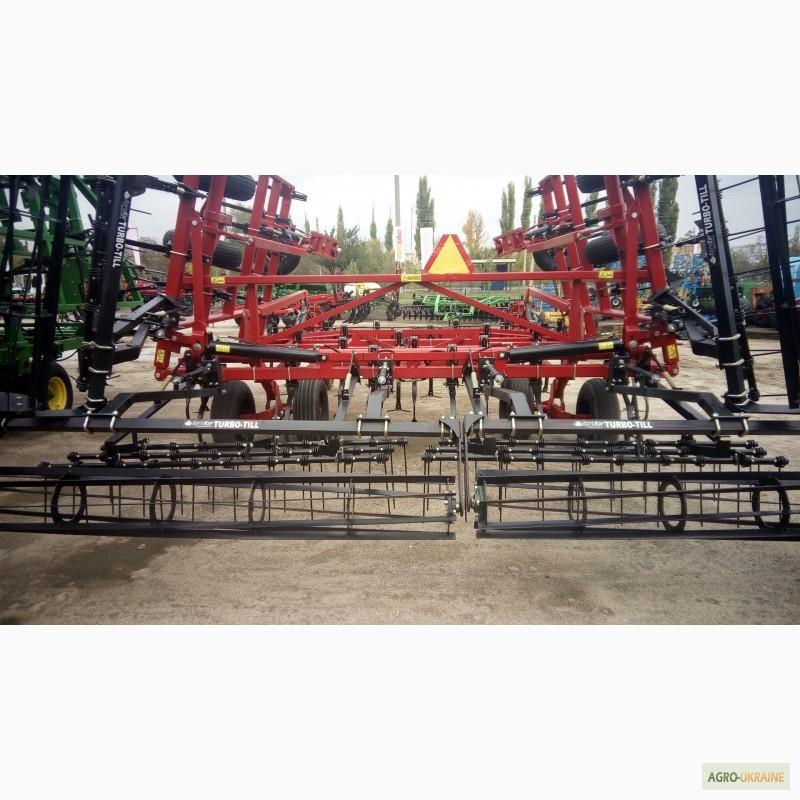

the possibility to install large super-passable tires. Tools for final tillage - three-row spring harrow, two types of paws with different
настроечкой предложения прижима.
