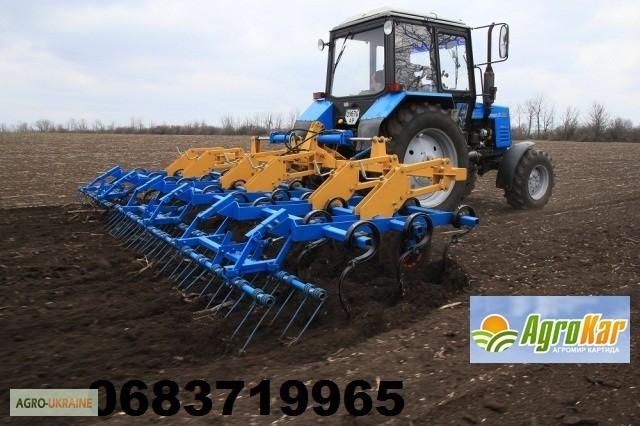

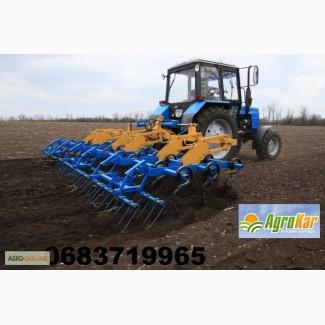

Porovanny cultivator KP-9 MAXIM, Kirovohrad region.

Producer Orekhovsky zavod agricultural machinery Agrotech (Ukraine)
LLC "OZSM "Agrotech"

It is aggregated with atractor: 150-210 hp. (traction class - 3)
Additional aggregate equipment: tooth harrow
Number of working bodies, 137
зубов пружинных harrows: 54/73 pcs.
Maximum depth of processing: 100 mm
Maximum productivity: 14 ha/hour
Maximum working speed: 16 km/h
Maximum transport speed: 20 km/h
Mass of the unit: 3100 +- 20 kg
Working organs: arrow feet
Country of manufacture: Ukraine
Aggregation type: semi-trailer
Specific fuel consumption: 2.2-2.7 l/ha
Working width: 10.5 m
Overlap of working bodies of the cultivator: 80 mm
Road clearance: not less than 300 mm
(//tractor-service.com)
Overall dimensions

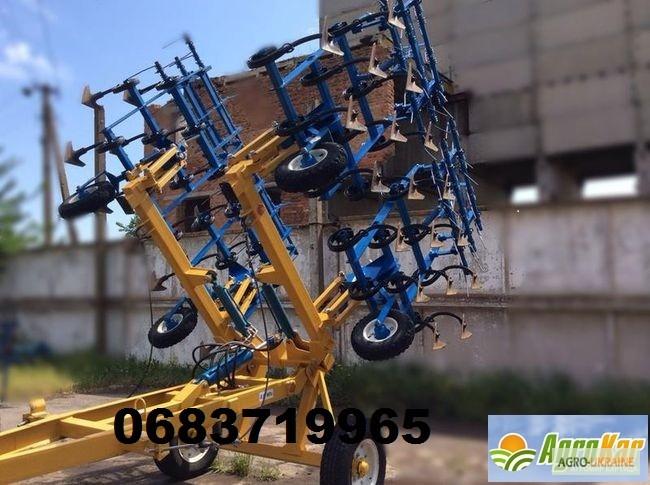

In transport position:
- length 5700 mm
- width 4150 mm
- height 3390 mm
In working position:
- length 7440 mm
- width 9300 mm
- height 1200 mm

The cultivator is intended for continuoussurface soil processing. Does not affect
formed soil structure. Loosens the surface of the treated area. Breaks
formed compactions and lumps. Increases the intensity of metabolic processes in the soil.
Opens the access of moisture and air to the specified depth. Provides uniform processing
to a given depth across the width of the grip. Takes care of "couples". It is effective
a tool in the fight against the sprouts of weed plants. Cuts their roots. Mixes the remains
with soil Creates an additional protective and nourishing layer. Simultaneously with cultivation
harrowing is taking place. Such a constructive solution increases the productivity of the implemented
works Allows you to save time and fuel resources for processing. Raises
profitability of the entire production process.
