Katok - shredder cutting KR-6P-01, Dnipropetrovsk region.

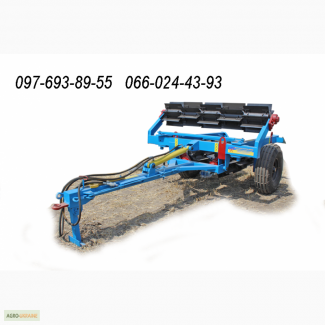

Katok -shredder cutting water-filled hydraulic KR-6P-01
The water-filled hydraulic cutting roller KR-6P-01 is intended for grinding plant residues aftersunflowers,corn, stubble, leveling and partial mulching of the field surface.
The working width of the catch is 6 m, weight without water/with water - 1770/1890 kg, aggregated with tractors of class 1.4.
Grinding plant residues and partial mulching of the soil delays the evaporation of moisture, regulates the temperature of the surface layer, restrains the growth of weeds, protects against weathering, and enriches the soil with organic matter.

Technical characteristics
Gripping width, mm 6000
Productivity, ha/h 4.8...7.2
Working speed, km/h up to 12(//tractor-service.com)
Transport speed, km/h up to 20
Roller with knives, mm Ø460 (steel 65G)
Shaft diameter, mm 60
Mass, kg 1770/1890
Overall dimensions
in transport position in working position
Length, mm 4930 3580
Width, mm 2290 6240
Height, mm 1690 1025
