Samplers, Dnipropetrovsk region.

Manual multilevel grain samplers are used for sampling. They make it possible to take samples simultaneously at several levels with embankment depths of up to 1.5 m, up to 2 m and up to 3 m. They are used at bread-making and grain-processing enterprises, feed industry enterprises, the State Bread Inspectorate, and other agricultural organizations. Designed for grain sampling ingrain warehouses,warehouses, motor vehicles, railway wagons, etc.
Samplers are manufactured in accordance with the requirements of GOST 13586.3-83 "Rules of acceptance and methods of sampling" in the following variants:
- 8th level 1.4/1.6 m long;
- 11-level 2.1/2.2 m long;(//tractor-service.com)
- 17-level, 3 m long.
Diagonal samplingprotects grain from damage and pinching during sampling.

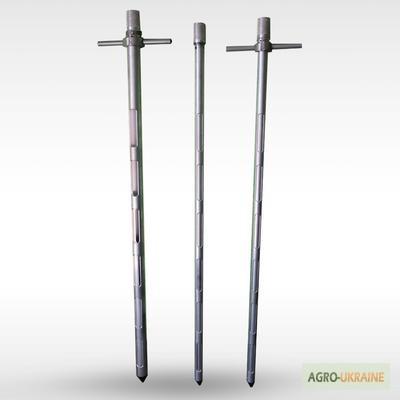

Description of the dipstick for grain:
The sampler consists of an outer case - a duralumin tube with a diameter of 35 mm or 50 mm with a pointed cone-tip and a stop, an inner case - a duralumin tube with a diameter of 30 mm or 45 mm with a crimp ring and a handle. Sampling is carried out in grain mounds, in a wagon or the body of a machine with grain by turning the inner casing inside the outer one through the intake holes in the pipe.
