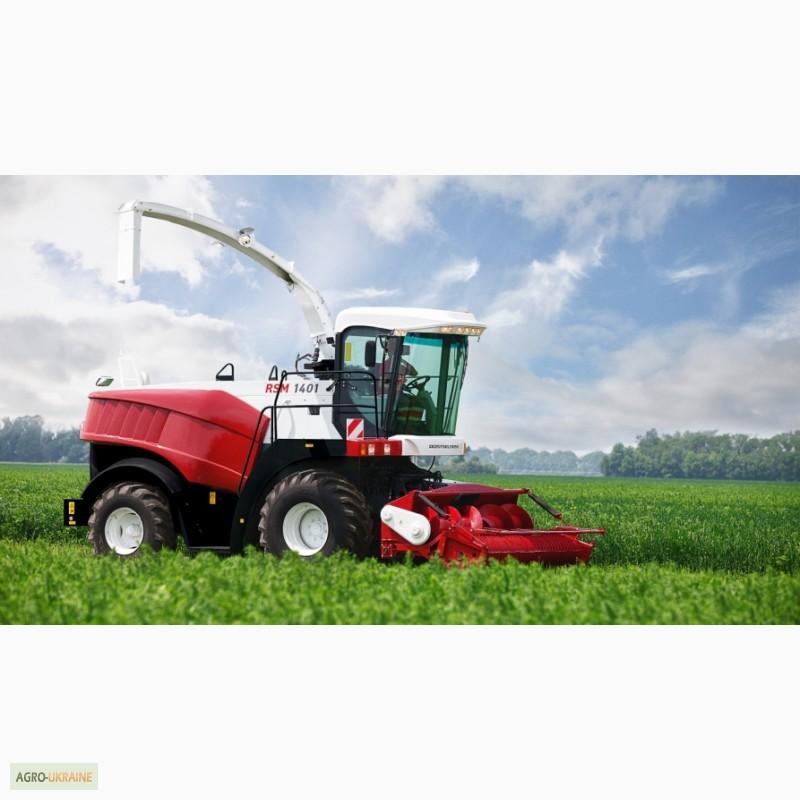

Forage harvester RSM 1401 (in installments), Sumy Region.

RSM 1401 is an innovative forage harvester that combines high productivity, excellent grinding quality, economy, versatility and, of course, operator comfort. The harvester is designed to harvest 140 tons of silage forage at a working speed of up to 18 km. This is a super-productive machine that is able to provide the farm with high-quality feed in a large volume and in the shortest possible time.

Naming the characteristics of Ed. ism RSM 1401
Engine
Manufacturer/brand Avtodiesel/YAMZ-7511.10-43
Turbocharged V8 type
Nominal power kW (hp) 294 (400)
Fuel tank capacity l 1080
Interrogator
Width mm 680
Number of rolls 4
Reverse mechanical
Metal detector +
Grinding drum
Diameter/length mm 630/700
Number of knives 24 (V-shaped layout)
Rotation speed rpm 1200
Automatic sharpening system +
Automatic bar feeding +
Cutting length mm 4/ 7/ 10/ 17
Changing the cutting length by switching the gearbox manually
Optional shredder
Type toothed rollers(//tractor-service.com)
Diameter of rollers mm 190
The difference in speed of rotation % 20
Unloading device
The diameter of the accelerator rotor is mm 510
Rotor rotation speed rpm 2160
Angle of rotation of the silo pipeline degrees.
200
Chassis
Hydrostatic transmission
Transport speed km/h up to 30
Typetires driving wheels 23,1-26
Type of steered wheel tires 18.4-24
Steering wheel bridge drive option
Cabin
Complete set Comfort Cab +
Advise information system +
Overall dimensions (withoutharvester)
Length/width/height mm 6800/3250/3900
Adapters
Continuous cut corn header m 6.0 (8 rows)/4.5 (6 rows)
Grass harvester m
5.0
Pick-up m
4.2/3.2
