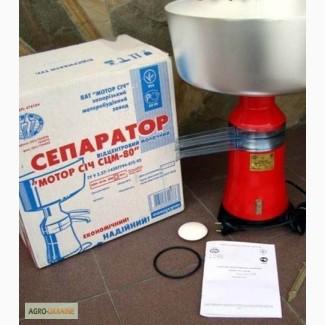

Separator-cream separator "Motor Sych SCM-80-15" (metal receivers), Poltava region.

Cream separator "Motor Sich SCM-80-15" (polypropylene) is intended for separating whole milk intocream and skimmed milk with simultaneous cleaning from contamination. The modern separator "Motor Sich SCM-80-15" is made of the latest polycarbonate materials.

Detail/Material
body: polypropylene
float chamber: polypropylene
receiver of cream and extract: aluminium
milk receiver: aluminum
plates: aluminum

More than 80 liters of milk can be processed with the "Motor Sich SCM-80-15" separator in 1 hour of operation. A milk container with bowlscapacity 12 l allows pouring at least 6 l, i.e. 50% of the cup.

For the best result, the milk is heated to 40-50 °, then poured into the bowl of the separator during its rotation. At the same time, cream is separated from milk in the cream separator.

The separator is equipped with two drain pipes: one for cream, the other for skimmed milk. They are distinguished by volume, the stream of cream is much thinner.

The separator works due to the rapid rotation of the drum, during which a centrifugal force acts on the milk, which ensures the separation of the milk. The drum in household separators operates at a speed of more than 10,000 revolutions per minute. At the same time, the milk quickly separates into 2 parts: fat-free and fat. The speed is not gained instantly, but in a minute.

Advantages of the separator "Motor Sich SCM-80-15":

- the absence of aluminum, which is harmful to the human body;
- dielectric qualities increase the electrical safety of the user several times;(//tractor-service.com)
– parts made of polycarbonate materials are not subject to corrosion;
– there is no risk of deformation in case of careless handling, because differ in high strength;
– polycarbonate parts dampen vibration at high frequencies, minimizing harmful effects on the human body;
- the ability to wash parts both by hand and in a dishwasher reduces the complexity of maintenance;
- it is much easier to clean the cups from food residues and other contaminants;
- small, compared to aluminum parts weight.

Technical characteristics of the separator "Motor Sich SCM-80-15":

Milk productivity, l/h, not less than 80
Drum rotation frequency, rpm 10500
The number of plates in the drum, 10-12 pcs.
Capacity of the bowl of the milk receiver, l 12
Fat content in the extract, % no more than 0.05
The range of adjustment of volume ratios of cream to return
1:4 ― 1:10
Electricity consumption, kWh, no more than 0.120

Overall dimensions, mm:
― bowl diameter 365
― height 520
Mass, kg, not more than 6
