Russev cabinet separator ZSSh-20, Vinnytsia region.

A1-ЗСШ-20 cabinet type separators have higher operational reliability compared to ZSM type separators

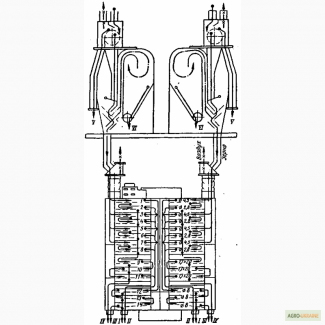

drive and spindleless balancing mechanism. Technological scheme of the separator,
characterized by feedinggrain with parallel streams to four receiving sieves and the presence of receiving and seeding sieves,
determines the possibility of sorting grain into large and small fractions and more effective cleaning of impurities.
Technical characteristics of cabinet separators are given in the table.

Technical characteristics

Indicators A1-ZSSh-20
Productivity (for grain with a grain size of 750 kg/m3 and moisture content up to 17%) t/h 19.9-21.7
Number of sections, pcs. 4
The dimensions of the sieve frame, mm 400x800
The number of frames in the section, pcs. 14 14
Sieve surface area, m2 14
Useful area of one frame, m2 0.25
Total air consumption, m3/min 20
Oscillating body frequency, oscillations/min 210
Radius of the oscillating trajectory, mm 35
Electric motor power, kW
corpus
scalper(//tractor-service.com)
aspiratorov
4.0
1,2
6.0

Specific load per 1 cm width of sorting sieves:
kg/cm
kg/(cm x day)
37-42
672-1032

Dimensions, mm: 190
длина 3680
width 2520
height (to the reception board) 2495
height with scalper 3115

Mass, kg 4300

Cabinet separator ZSSh-20, consists of a scalper, a sieve cabinet, performing a circular translational movement, a pneumatic separating device with sedimentation devices.

The condition is new, the price is negotiable.
