Quick-release front loader MTZ, Yumz, Zaporizhia region.

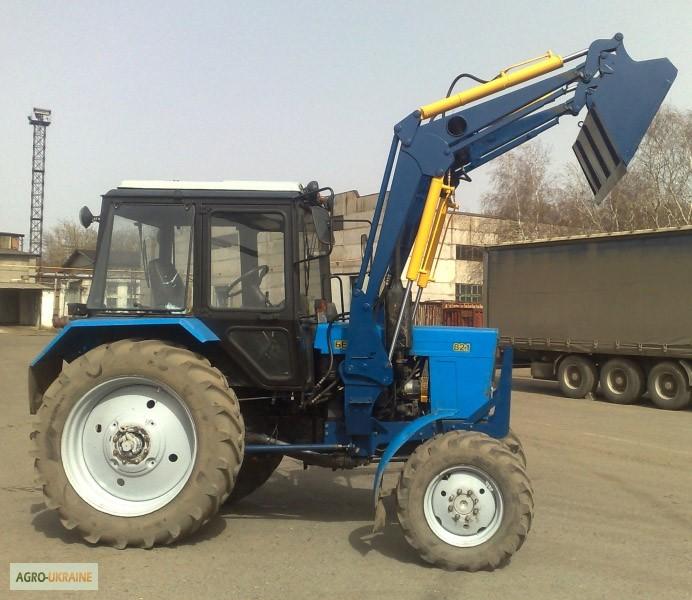

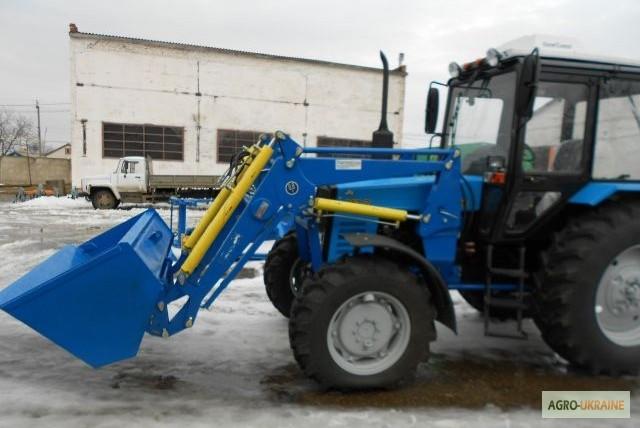

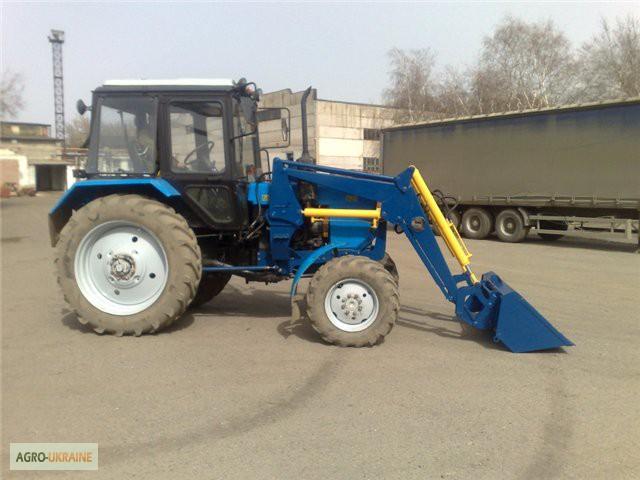

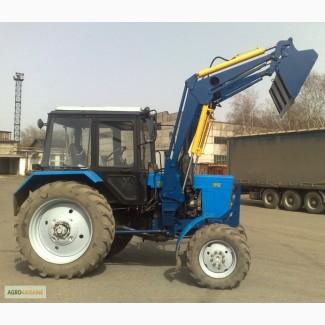

New! Quick-detachable front-end loader MTZ, Yumz

Durable and reliable reinforced construction.

The front-mounted quick-release tractor loader is intended for loading various cargoes (snow, crushed stone, sand, hay, straw,silage, manure. Mineral fertilizers, etc.) into vehicles, as well as for transportation and stacking of rolls and stacks of hay, straw.

Installation type, spring.
Hanging, frontal
Aggregates with MTZ 80, 82 class tractors MTZ-50/50L, MTZ-52/52L, MTZ-80/80L, MTZ-82/82L, MTZ 1025
Drive from hydraulic systemtractor
Productivity during the main work, t 40
Gripping width, mm 2000
Nominal load capacity, kN (kgf) 8 (800)(//tractor-service.com)
Break-off force at a pressure in the hydraulic system of 10 mPa (100 kgf/cm2) kN (ts), up to 20 (2)
Working speed, km/h, up to 6
Transport speed (without cargo), km/h, up to 16
Load height, mm 3950
Bucket unloading angle, degree 75
Labor intensity of installation, man-hours. 1
Labor intensity of installation and dismantling of the lifting device on the preparedtractor, person-h. 0.2
Number of service personnel (tractor operator), 1
Structural weight, kg, no more.
— lifting device 650
— bucket 0.8 m3

Warranty 1 hour You are always welcome to call.
