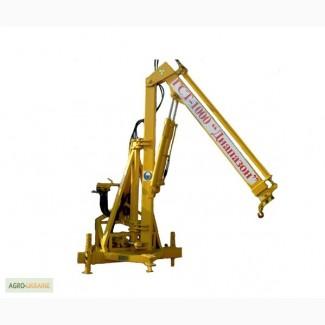

Hail loader DIAPAZON GST-1000, Khmelnytskyi region.

Main characteristics:
Hitch (hanging ontractor) - three-point
Load capacity at full extended boom (kg) - 1300
Maximum cargo lifting height (m) - 6.5
The maximum flight of the arrow (m) - 5.5
The necessary pressure in the hydraulic system of the tractor (bar) - 160‒180
The angle of rotation of the tower, (grd.) - 160
Overall dimensions (m):
Width 1.6
Length 1.6
Height 3.15
Unit weight (kg) - 995
(//tractor-service.com)
The mounted loader (tractor hydraulic manipulator) of the GST-1000 series "Diapazon" is designed and manufactured for aggregating to the three-point linkage of agricultural tractors with a capacity from 30 kW (≈ 40 l/s) to 220 kW (≈ 300 l/s).
The main field of application: loading and unloading of fertilizers in "Big-Beg" houses in agricultural production in field and warehouse conditions.
Hanging the loader (tractor hydraulic manipulator) on the three-point linkagetractor is carried out by the tractor driver (operator) within 5‒10 minutes. Power supply of the hydraulic system of the loader is carried out from the hydraulic system of the tractor through breakaway couplings. At the same time, the tractor retains the ability to tow a two-axle trailer with a load capacity of up to 6 tons.

Loader GST-1000 "Range" is aggregated with tractors equipped with three-point hitches (couplings) of categories 2 and 3 according to ISO-730‒1:1994 and ASAE S217.11, as well as categories 2W/2 and 3N/3 according to DSTU ISO-730:2013, which corresponds to machines with engine power from 48 to 185 kW.
The loader is controlled by the tractor driver with the help of a hydraulic distributor located on the rack on the left side of the loader. If necessary, it can be moved to the right position depending on the loading scheme.
The experience of operating the "Diapazon" mounted loader by our customers notes the following main advantages:
1. universality of aggregation with all main models of tractors;
2. high load-carrying capacity (1.5 t on the maximum reach of 5.2 m and 3.0 t on the "short" boom of 2.5 m);
3. the maximum cargo lifting height of 6.5 m (to the hook) allows you to unload cars with a high side — 4.00 m above the ground and load seeds and fertilizers intoseeding complexes;
4. the rotary column provides a sector of the work to be performed within 160̊;
5. simple and informative control of the manipulator with a high degree of protection against emergency situations, does not require training of the operator;
6. compact dimensions in the transport position allow the tractor with boom to move on public roads;
7. the possibility of operation in the scheme (tractor + manipulator + trailer) allows you to quickly move goods over short distances and off-road.
