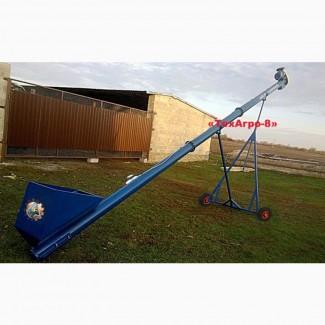

Auger loader, transporter, grain loader, auger grain loader (with hopper), Zaporizhzhia region.

Auger grain transporter intended for transportation, loading or unloading of grain, leguminous, cereal and oil crops, as well as construction and bulk materials to the required height or transport with high sides

The screw conveyor is intended for loading and unloading, horizontal movement of grain, seeds, groats, construction and other bulk materials.

► Lifting height 4.50 m. Productivity up to 25t/h. Option to complete with a removable hopper or intake auger 2 m.

Technical characteristics:

• installation type - mobile
• housing length - 8m (three housings 3x2x3m each)
• lifting height - 4.50 m.
• pipe diameter -159 mm
• pipe wall thickness - 3.5 mm
• diameterwheels - 200 mm
• productivity - from 20 to 25 t/h (depending on the transported product and the angle of inclination)
• electric power motor - 3 kW/h - 4 kW/h (380V/220V)
• mass of the installation - 240 kg
• operational termloader operation - not less than 8 years

The main constructive advantages:

► the thickness of the pipe wall is 3.5 mm, which ensures rigidity, mechanical resistance in various conditions and durability

► the diameter of the screw, the pitch between the turns and the gaps inside the pipe exclude any damage to the transported product

► spirals of the auger are made of cold-rolled steel, which increases the resource of their work

► the reliable design of the adjustable stand made of 40-50 profile pipe ensures the stability of the structure during operation

► the grain loader consists of three connected bodies, which is convenient for transportation and allows the user to assemble both an 8-meter and a 6-meter structure of the loader
(//tractor-service.com)
► the screw sections are connected using square bushings on the suspension bodies with bearings, which ensures reliability, durability and stability in the operation of the loader

► at the request of the customer, it is possible to complete with a removable hopper with a flap, for 100-150 kg and more

► the maximum lifting height is up to 4.50 m, which allows loading into cars with high sides

► lifting-lowering is regulated by a manual cable winch or a trapeze at the customer's request

► a new electric motor with a capacity of 3kW/h (380V) or 4kW/h (220V) is installed with a 12-month factory warranty

► as well as a reliable electromagnetic starter PMK-09 with thermal relay and double protection of the electric motor

The loader includes:

• casings with screws - 3 pieces (3x2x3m)
• hopper for 120 kg - 1 pc.
• adjustable stand withwheels - 1 piece
• protective mesh on the intake unit - 1 piece
• electric motor with a capacity of 3kW-4kW (380/220V) - 1pc
• protective case - 1pc
• electromagnetic starter - 1 piece
• power cable - 9m (7x2m)
• portable plug 220V or 380V - 1pc
• bolt fasteners - bolts, nuts, washers
• passport for the product - 1 pc.
