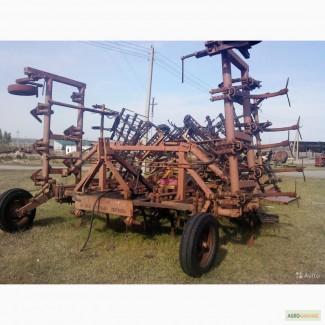

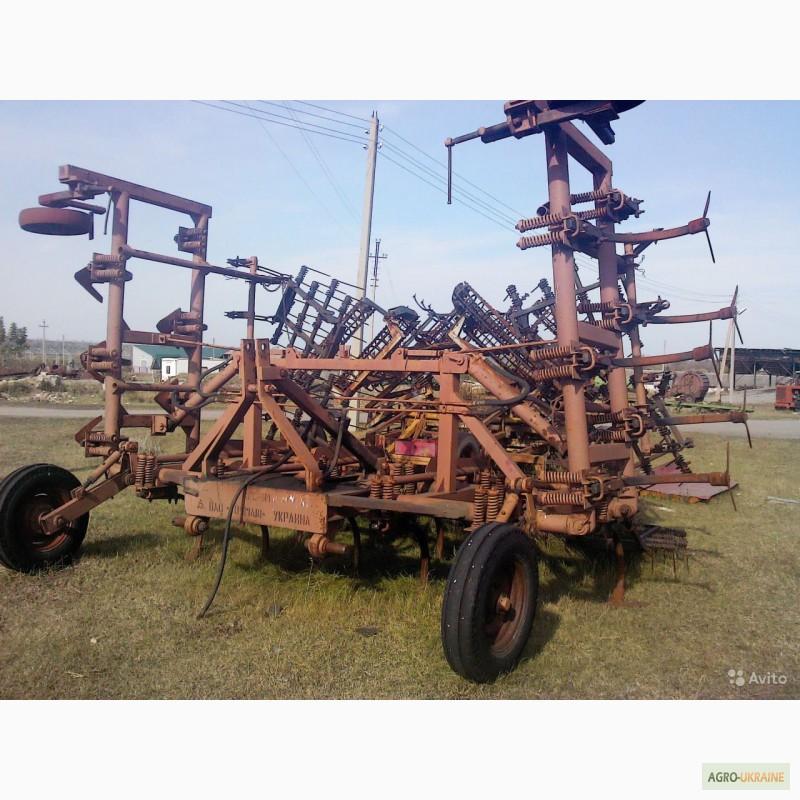

Spring cultivator KGS-8 (for KIRovets), Dnipropetrovsk oblast.

Spring cultivator KGS-8 (for KIRovets) heavy intended forcontinuous pre-sowing and steam tillage, autumn and winter processing of stubble fields. It consists of a 3-section hinged frame: the width of the central section is 4 m; side sections 2 m wide, identical to each other. With the help of the hydraulic system of the tractor, the side sections are transferred from the transport position to the working position by two hydraulic cylinders located on the frame.
Working bodies — arrow legs LK-3 made of steel 65G with a grip width of 410 mm on rigid spring struts SK-2 made of steel 50KHG. There are two support workers metal and two rubber pneumaticwheels with individual mechanisms for regulating the depth of soil cultivation. Each wheel is adjustable in height.(//tractor-service.com)
There are devices for hanging tooth or spring harrows.
It is aggregated with the K-700 tractor. Served by one tractor driver. Есть в наличии 2 pcs.
