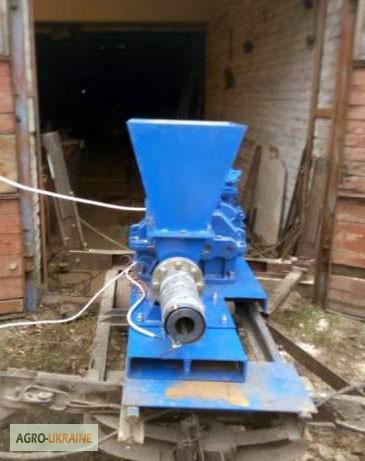

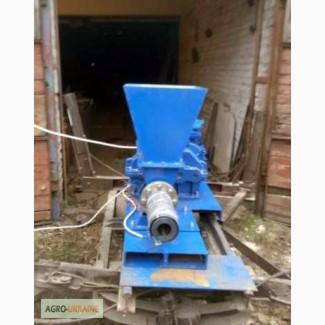

Extruder press for sawdust. Production of fuel briquettes PSh 200, Zaporizhzhia region.

Technical characteristics
1. The type of press is screw.
2. Productivity - up to 200 kg/hour.
3. The power consumption is ~10 kW.
4. Engine - 11 kW
5. Heating element - 6 kW.
6. Network - only 380 W
7. The size of the raw material is up to 6 mm.
8. Moisture content of raw materials - recommended 8-12% (up to 15%)(//tractor-service.com)
9. Briquette - F60mm
10. The length of the briquette is regulated during production.
11. Dimensions: 1600x1000x600
12. Weight - 350 kg.
Description: Screw press PSH 200 is intended for the production of briquettes from biomass. Raw materials used in the work: sawdust, hay,straw, seed husks and other agricultural waste. The main factor affecting briquette quality and productivity is the fraction of raw materials and humidity. The size of the compressed material should be up to 5-6 mm and have a moisture content of up to 15%. Otherwise:
1. When the fraction is increased, the productivity and quality of the briquette decreases.
2. With increased humidity, the briquette crumbles at the outlet, or it breaks.

To obtain the maximum productivity of 200 kg/hour, you should adhere to the recommended raw material parameters, namely fraction up to 5 mm and humidity in the area of 8-12%
