I will sell grain thrower ZM-80, ZM-90, ZM-100, Zaporizhia region.

Our company is engaged in the production of spare parts and agricultural machinery. order taking into account the wishes of the customer.

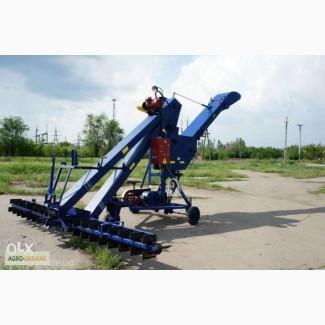

The self-propelled ZM grain thrower is intended for the mechanization of loading and unloading operations on open platforms with a hard surface and grain warehouses. The grain thrower can perform the following operations:
- loading of grain into vehicles;
- mechanical shoveling of grain;
- formation of ledges up to 5 m high;
- grain separation with separation of light impurities.

PURPOSE, DEVICE AND OPERATION OF COMPONENT PARTS OF THE GRAIN SPREADER

The grain thrower consists of the following main components and mechanisms: a frame with a drive, a rotating frame, a loading conveyor, a trimmer with a pipe, a self-propelled mechanism, a control panel with electrical equipment, a sprengel.
All working parts of the machine are mounted on a welded frame mounted on three rubberized wheels. 161колесах.
Рама поворотная соединяет триммер и раму и позволяет осуществлять поворот триммера в обе стороны на угол до 90°.
The loading conveyor serves to feed material from the side to the trimmer,(//tractor-service.com)
The trimmer consists of a body, which is a prefabricated structure, of two drums (leading and tension), a coil, a nozzle, a guide pipe with a folding toe.
The assembled construction of thetrimmer body consists of 2 rigid side panels, with the bearing housings for the leading drum and cover attached to them.
The drum and coil rotate in rolling bearings and are attached to the sidewalls of the housing: the leading drum with the help of bearing housings, and the tension drum and coil with the help of retainers.
An endless tape is put on the drum, pressed from above by a spool. The tape is tensioned by moving the tensioning drum in the grooves of the sides of the case with the help of the tensioning mechanism. The run of the tape relative to the drum is no more than 10 mm.

The self-propelled mechanism serves to move the thrower forward and backward in working and transport speed modes, as well as disconnect the transmission from the wheels when towing the machine.

In the mode of transport speed, one (right) rear wheel is the driver, which allows the car to move along the radius. In the working mode, the drive is carried out on two rear wheels. Due to the fact that the machine is delivered in different versions, electrical diagrams and their descriptions are made in a separate appendix and are additionally attached to each product.задних колеса.

Ввиду того, что машина поставляется в различном исполнении, электрические схемы и их описания выполнены отдельным приложением и прикладываются дополнительно к каждому изделию.
DELIVERY ALL OVER THE TERRITORY OF UKRAINE !!!
Call me, I will be happy to cooperate.
from 8:00 a.m. to 5:00 p.m.
with Mon. on Fri.
