Pneumo crusher of grain and loose fodder 11kW, 1000kg. Bioecoprom, Poltava region.

GRAIN GRINDER 11kW. Bioecoprom.

The grinder is intended for grain grinding andpreparation of compound feed.
The crusher automatically sucks in and grinds the grain, and then feeds the accumulator (mixer) into the hopper through a pneumatic hose. The device is intended for the production of loose fodder. The standard equipment includes: a shredder, a hose and an outgoing pneumatic hose. Each shredder is equipped with a magnet for small metal parts, an ammeter and thermal protection that protects the engine from damage. To meet the special needs of customers, we equip the crusher with a hopper mixer with a capacity of 500 kg to 2000 kg with an air flow regulator built into the bottom. The mixer can be equipped with a grain screw conveyor for packing raw materials into bags of any shape.

We offershredders with a capacity of 7.5kW, 11kW, 15kW, 18kW, 22kW, 30kW and 37kW.
Productivity from 800 kg/h to 5000 kg/h.

Technical information 11kW.
Productivity
(Grain) kg/hour. +/- 1000
Productivity
(Sawdust) kg/hour. +/- 350
(Grass/Hay/Straw/
Spices) kg/hour. +/- 300
The output fraction is 0.3mm
The diameter of the sieve cell is 0.3-12 mm.
Voltage(//tractor-service.com)
220/380
The length and diameter of the suction hose is 5m.80mm.
The length and diameter of the outgoing hose. 3m.
100mm
The number of hammers is 40 pcs.
Hammer thickness mm 4
Wear of hammers tons. so 1000
Sieve thickness mm. 3-5mm
Sieve wear tons. so 1000
Electric motor Ukraine

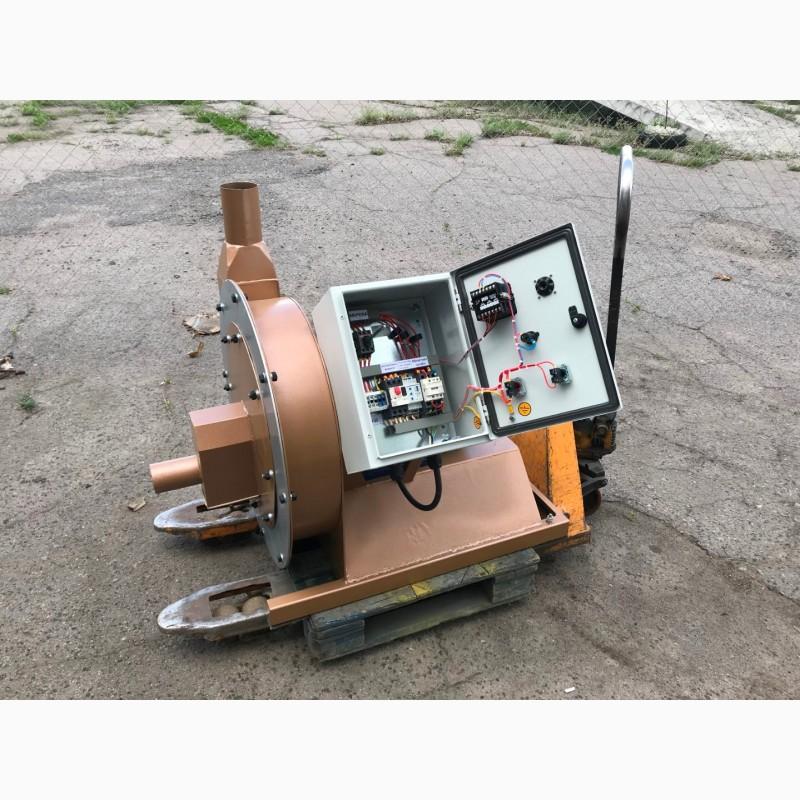

Control panel
"Ukraine. Germany" +
Soft start -
Replaceable case +
Metal detector +
Weight kg. +/-300

The price of the crusher includes complete electrical equipment, intake, 5 m suction hose, 3 m impact hose. Possible addition: receiving hopper for 200-500 kg, electronicвесы for a mixer and receiving bunker.
