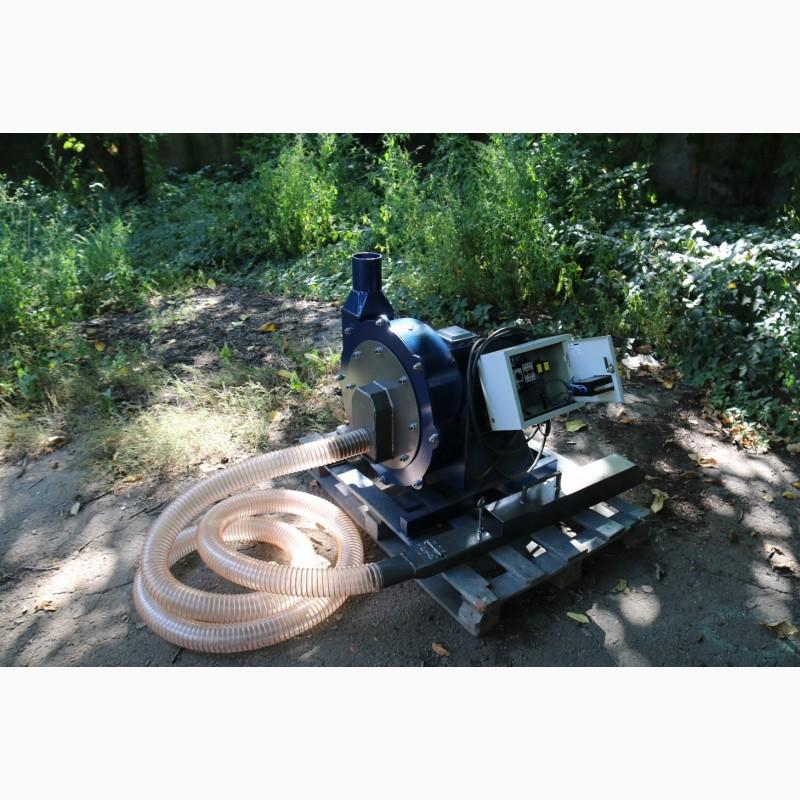

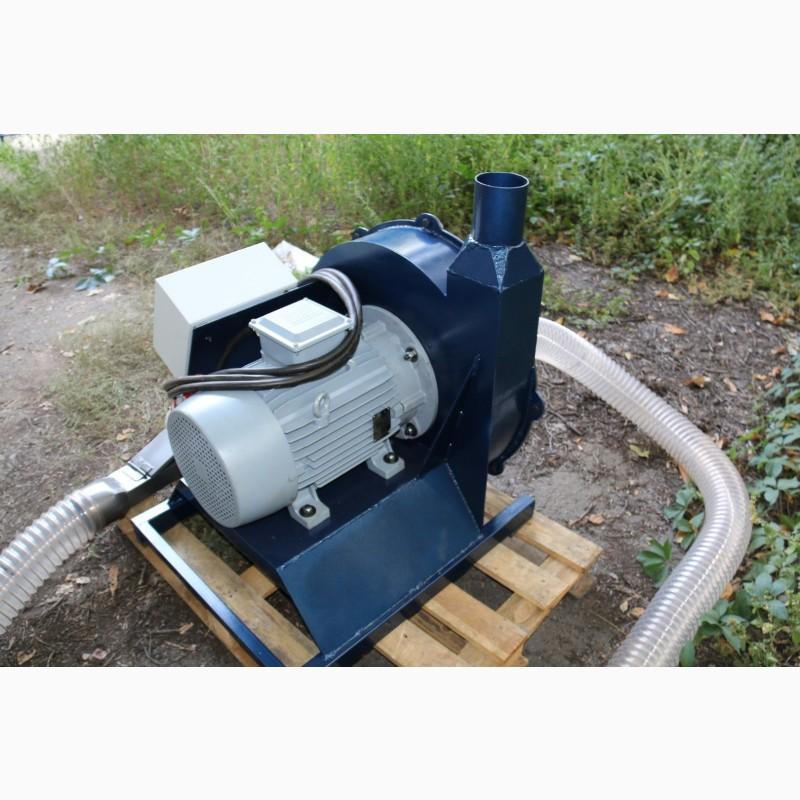

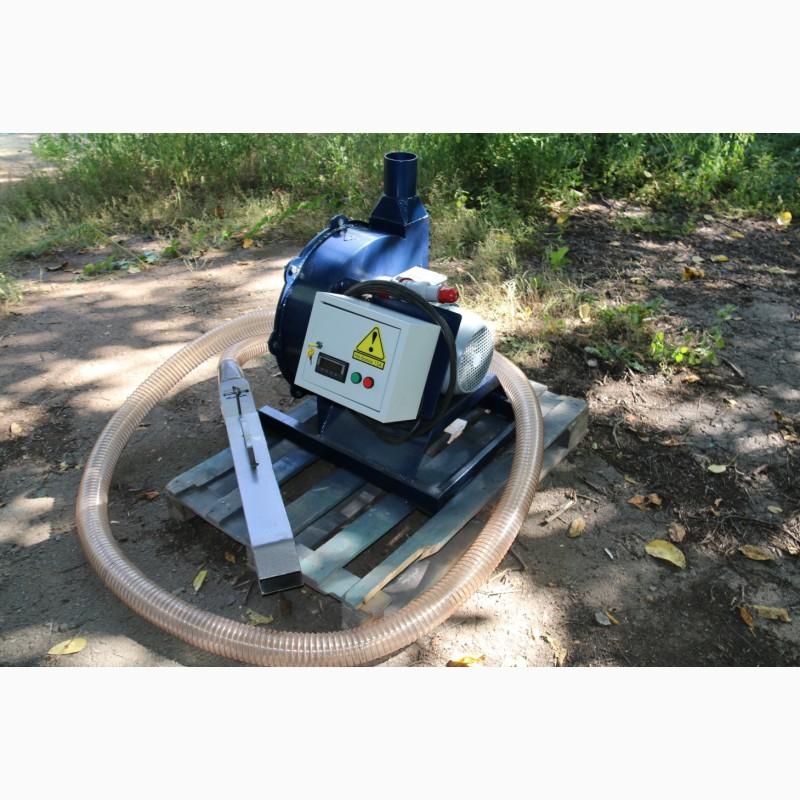

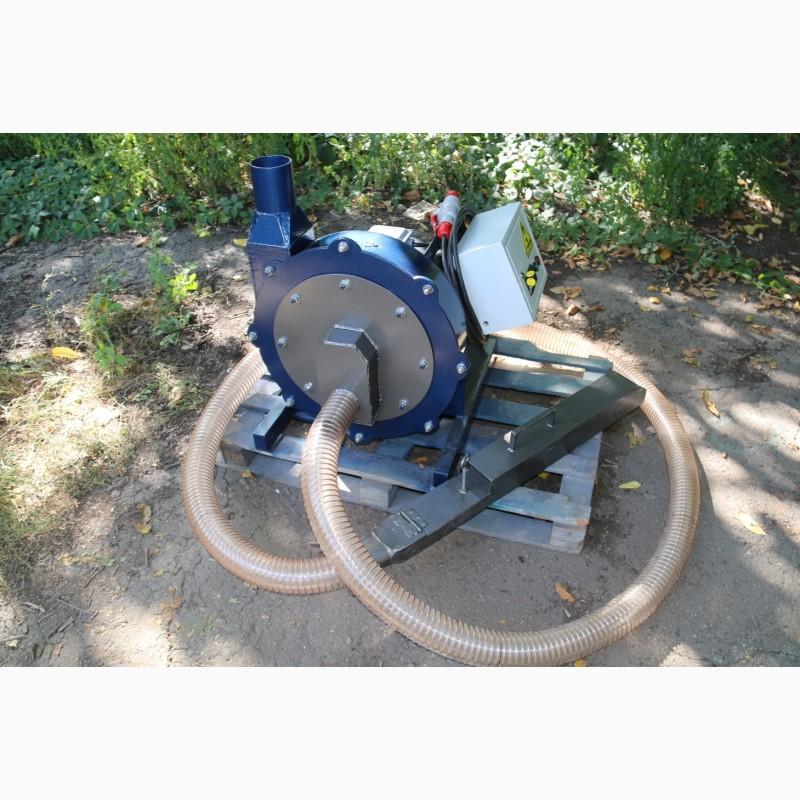

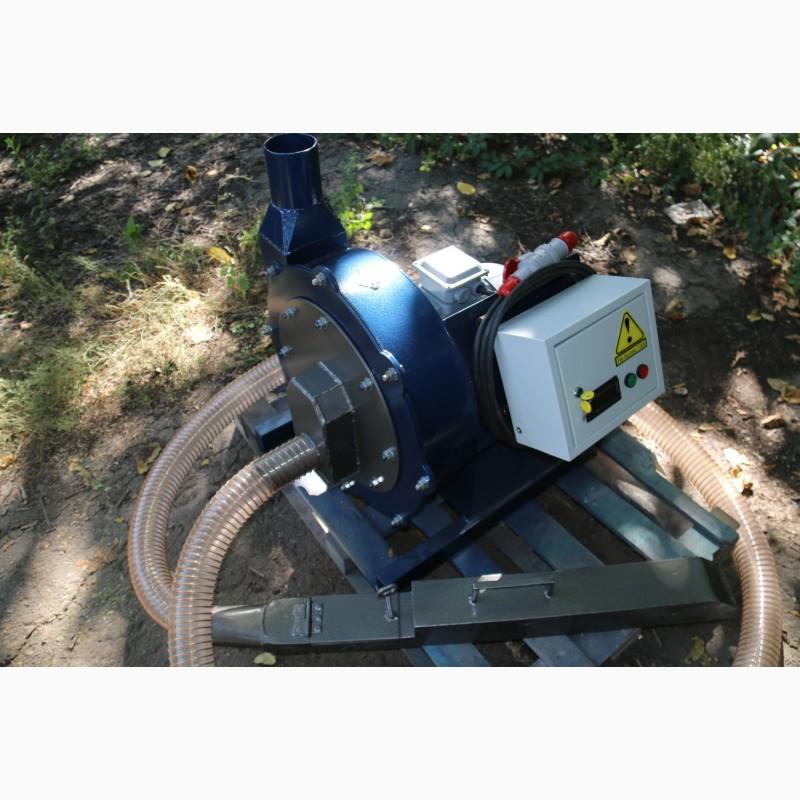

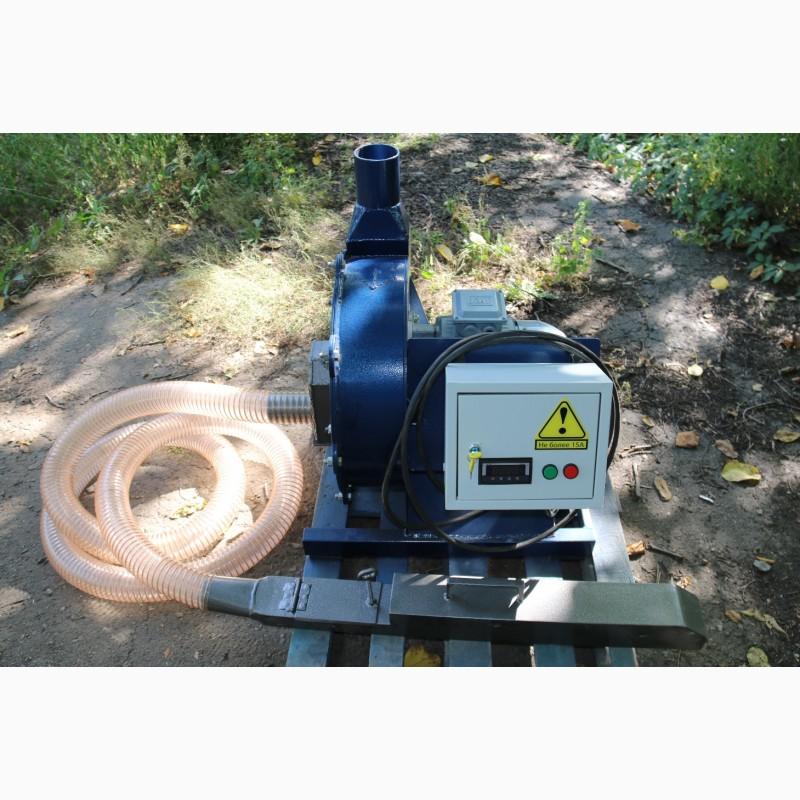

Grain and fodder grinder "GNOM" (7, 5kW). Pneumatic Poltava, Poltava region.

The grinder is intended for grinding of grains and preparation ofcompound fodder. The crusher automatically sucks in and grinds the grain, and then feeds the accumulator (mixer) into the hopper through a pneumatic hose. The device is intended for the production of loose fodder.

The standard equipment includes: a shredder, a hose and an outgoing pneumatic hose. Each shredder is equipped with a magnet for small metal parts, an ammeter and thermal protection that protects the engine from damage. To meet the special needs of customers, we equip the crusher with a hopper mixer with a capacity of 800 kg to 5000 kg with an air flow regulator built into the bottom. The mixer can be equipped with a grain screw conveyor for packing raw materials into bags of any shape.

We offershredders with a capacity of 7.5 kW, 11 kW, 15 kW, 18 kW, 22 kW, 30 kW and 37 kW with a capacity from 800 kg/h to 5000 kg/h.

Indicators of 7.5 kW:
Productivity
(Grain) kg/hour. +/- 800
Productivity
(Sawdust) kg/hour. +/- 250
(Grass/Hay/Straw/
Spices) kg/hour. +/- 200
The output fraction is 0.3 mm.
The diameter of the sieve cell is 0.3-12 mm.
Voltage 220/380(//tractor-service.com)
The length and diameter of the suction hose is 5m.80mm.
The length and diameter of the outgoing hose. 3m.
100mm
The number of hammers is 36 pcs.
Hammer thickness mm 4
Wear of hammers tons. so 1000
Sieve thickness mm. 3-5mm
Sieve wear tons. so 1000

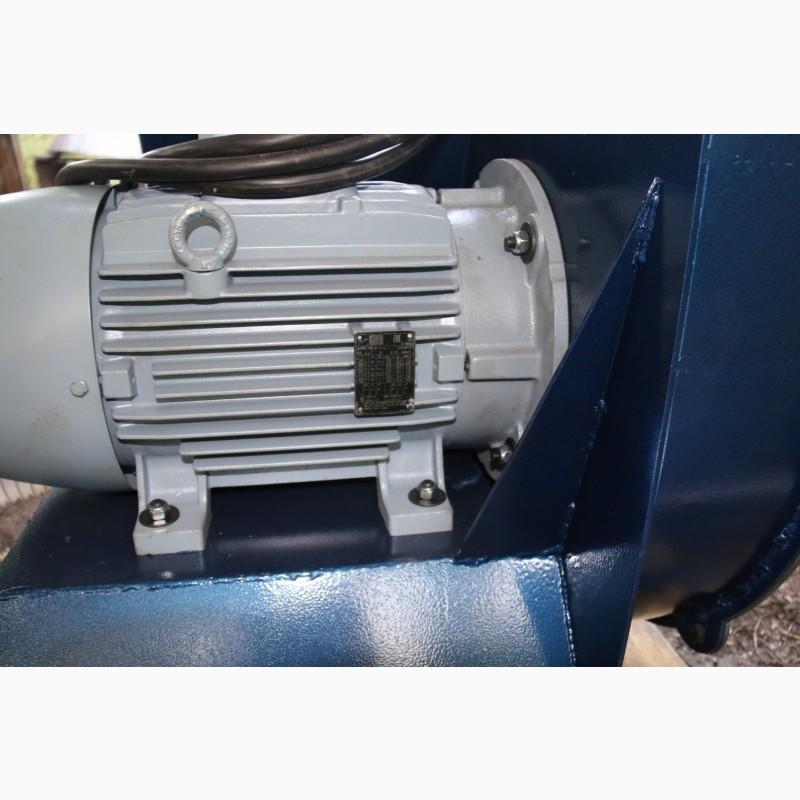

Electric motor Ukraine
Control panel
"Ukraine. Germany" +
Soft start -
Replaceable case +
Metal detector +
Weight kg. +/- 180

The price of the crusher includes complete electrical equipment, intake, 5 m suction hose, 3 m impact hose. Possible addition: receiving bunker for 200-500 kg,electronic scales under mixer and receiving bunker.
