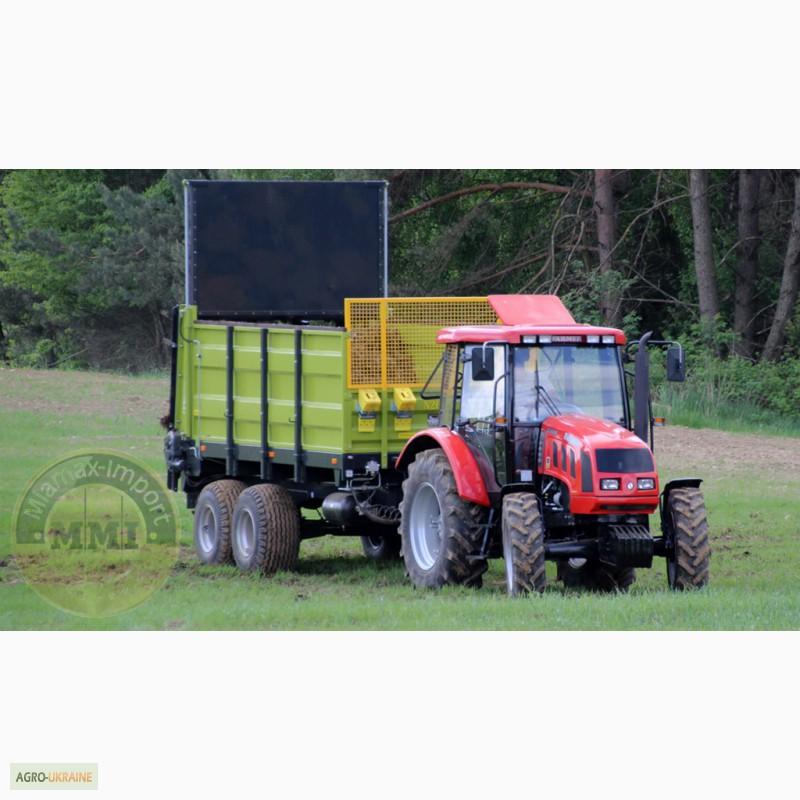

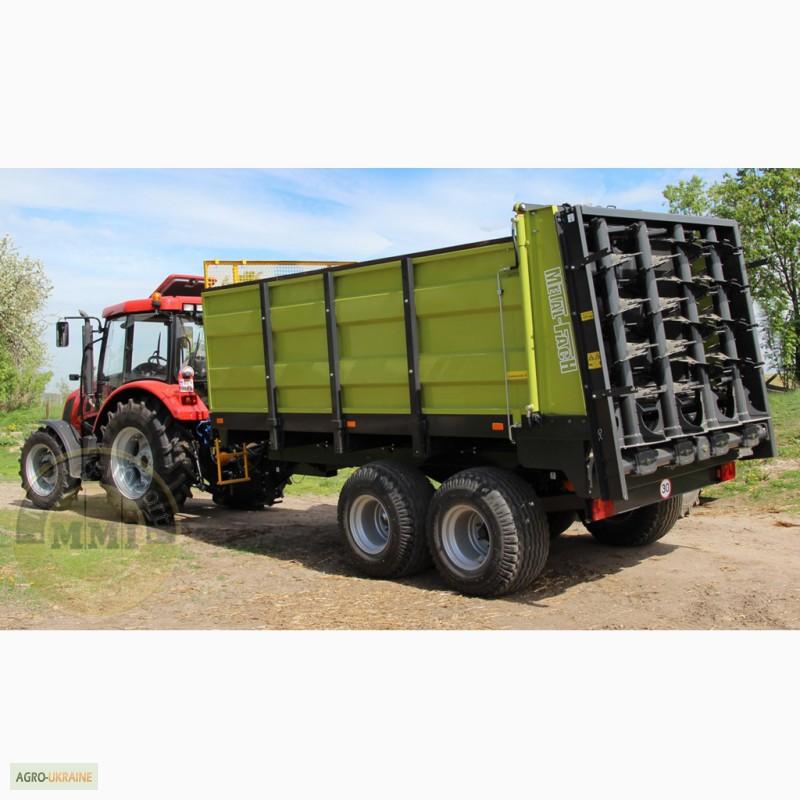

Manure spreader METAL-FACH N 267, Vinnytsia region.

Spreader oforganic fertilizers by truck with a capacity of 8 t.

Tandem type chassis, equipped with a vertical four-screw adapter, tilted forward, which guarantees uniform widespreading of fertilizer.

The rotation of the drums is in the opposite direction (looking from behind the machine: the two right ones are counter-clockwise, the two left ones are clockwise). Each drum is balanced to reduce spreader vibration during operation. Replaceable teeth made of high-quality steel are used.

It is aggregated totractor by means of an adjustable HITCH clutch. In order to protect the drive, a safety friction clutch was used.
(//tractor-service.com)
As standard, the machine is equipped with a rear flap, which is raised with the help of a hydraulic drive, in the lower part it is sealed with a rubber gasket, which protects against spillage of material during transport. In addition, in order to ensure uniform operation of the damper, a synchronizer was used.

In order to protect against the harmful effects of other users hitting the adapter drums while driving on public roads, a grid is applied.

To protect the sides during loading, the machine is equipped with a wooden bar as standard.

In order to increase the versatility of the machine, you can additionally apply full or mesh superstructures with a height of 500 mm.

The machine is controlled with the help of a two-section or one-section hydraulic system and Bowden cables, which allows for simultaneous installation to a tractor and other hydraulically controlled equipment (for example, a front-end loader)
