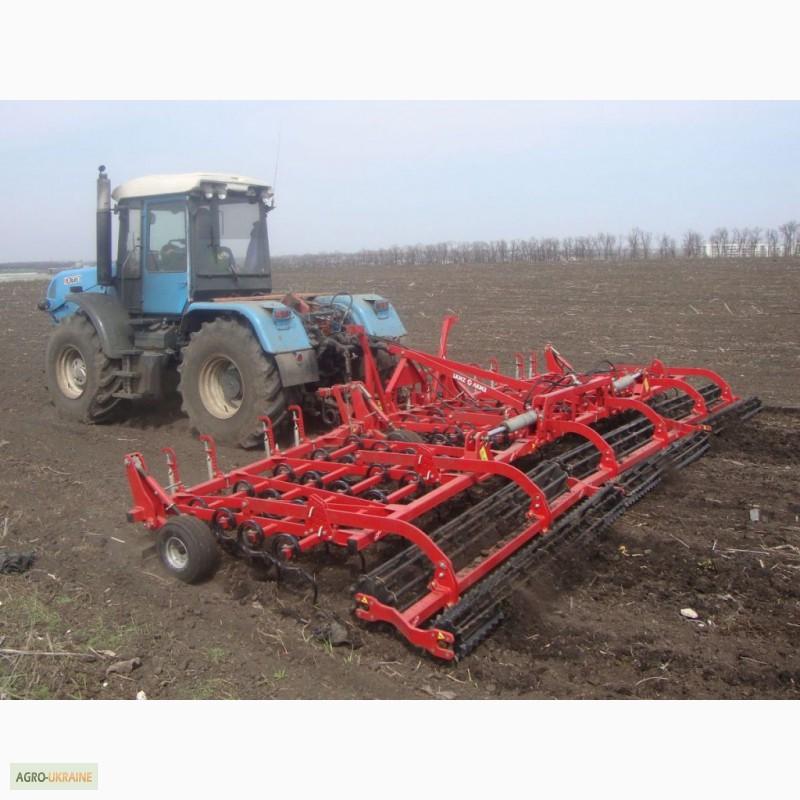

Cultivator of pre-sowing treatment "CHERWONETS" (KPO), Kyivska

Pre-sowing machine Cultivator "CHERWONETS" creates an ideal sowing bed for seeds: a compacted layer covered with well-loosened soil on top. The cultivated field must be leveled and simultaneously loosened over the entire depth of cultivation.
Cultivator pre-sowing machine "CHERWONETS" (KPO) is suitable for almost all types of seedbed preparation: loosening the soil to a depth of 3 to 15 cm, applying various fertilizers, light stubble processing, the second husking of stubble or the fight against chaff are not the slightest problem for "CHERWONETS". Being effective on small and large areas, "CHERWONETS" is a multi-purpose, classic The use of an S-shaped spring rack in tillage units creates favorable conditions for the optimal water-air regime in the soil.
Simple adjustment of the depth of operation of the working parts with your fingers significantly reduces the time for adjustment and increases the productivity of the unit as a whole.
To loosen the track of the KPO-8 tractor, it can be equipped with spring teeth that are adjustable in height and width of the track.
Main technical characteristics
CHERVONETS-8 in spring
CHERVONETS-8 semi-mounted (trailer)
Design width of capture, m 8 8
Processing depth, cm 3-15 3-15
Distance between legs in plan, mm 125 125
Working speed, km/h up to 15
Productivity, ha/h up to 12(//tractor-service.com)
Total mass, kg 2500 3300
Required power of the tractor, hp 130-170 150-200
Crumbling of the soil, not less (the size of lumps not more than 25 mm), % 80 85
Ridge of the field surface, cm up to 3
different equipment*
* there are three options for working bodies (with and without a spring):
- a chisel-shaped working body, with a width of 35 mm.
- working body in the form of a goose foot, with a width of 70 mm.
- the working body is an arrow paw, with a width of 150 mm.
Delivery Warranty.
