Reductor PD A-01, 3А-19с2А, Kharkiv region.

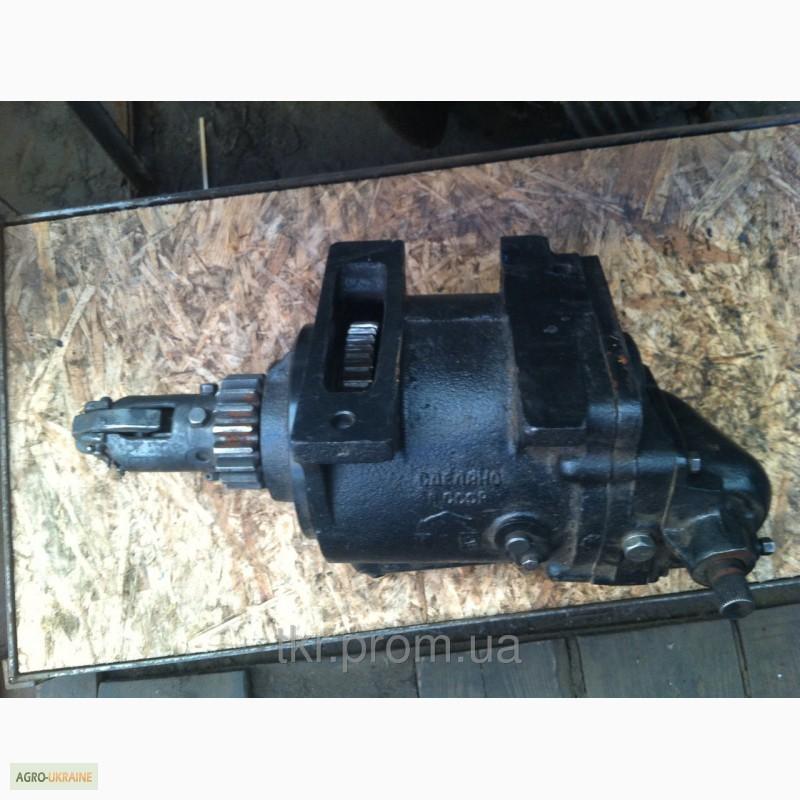

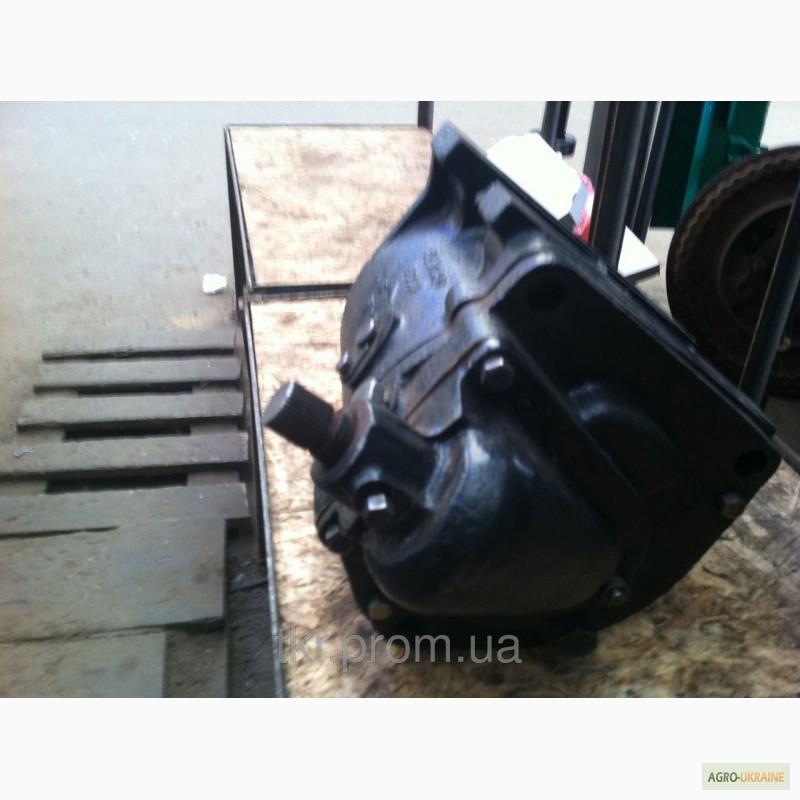

A-01 starter motor reducer 3А-19с2А
it is used for T-4, TT-4 tractors, as well as for tractors and special equipment on which the A-01 engine is installed.

The A-01 starter motor reducer (Figure 1) transfers rotation from the starter unit to the diesel engine. The reducer is assembled in a cast iron housing and is attached to the flywheel housing with three bolts. The starter motor is attached to the gearbox housing. Control of the gearbox is carried out by means of one lever.

The two-stage gearbox (RPD 03a-19C2A) is turned on in the following order. The gearbox gear is engaged with the diesel flywheel by means of a lever located on the clutch cover of the engine. The protrusions of the cargo (item 58) of the holder (item 57) of the switching mechanism are engaged with the edge of the sleeve (item 56) of the pusher (item 53).
(//tractor-service.com)
At the moment of engagement of the first gear clutch, the gear lever is turned to the left until it stops, that is, towards the starting motor, the bevel gear (item 40) turns the stop (item 24) of the first gear clutch. At the same time, the stop (pos. 24) moves along the bevels of the stop (pos. 29), moving and squeezing the brakediscs, and already through them the driven discs (pos. 20) of the first gear clutch, which stop the epicyclic gear (pos. 12), connected to them by spikes. The sun gear (item 8), which constantly rotates from the starter motor, simultaneously sets in motion all three satellites (item 14).

The satellites roll on the rim of the fixed epicyclic gear and begin to rotate the housing (item 17) of the overrunning clutch. The rollers (item 26) of the overrunning clutch insert it into the wedge with the shaft (item 1) of the gearbox, giving it rotation, which it, in turn, transmits to the flywheel of the diesel engine.

Starter motor reducer (RPD) А-01 (03а-19С2А)
Fig. 1 — Starter motor reducer (RPD) A-01 (03а-19С2А)

1 – gearbox shaft; 2 – sleeve; 3 – self-tightening frame seal; 4 – locking plate; 5 – bearing cup; 6 – sealing ring; 7 – gearbox housing; 8 – sun gear of the planetary mechanism; 9 – clutch clutch gear; 10 – bushings; 11 – epicyclic gear hub; 12 – epicyclic gear; 13 - this is a satellite; 14 – satellite; 15 – thrust disk of the first gear clutch; 16 – vehicle; 17 – housing of the overrunning clutch; 18 – bushing of the first gear clutch; 19 – brake disc of the first gear clutch; 20 – driven disk of the first gear clutch; 21 – brake disc of the second gear clutch; 22 – driven disk of the second gear clutch; 23 – clutch pressure disc finger; 24 – pressure stop of the first gear clutch; 25 – the hub of the overrunning clutch; 26 – cylindrical roller of the overrunning clutch; 27 – spring; 28 – gear housing mounting bolt; 29 – fixed stop of the clutch of the first gear; 30 – pressure disk of the second gear clutch; 31 – gearbox housing cover; 32 – pressure stop of the second gear clutch; 33 – thrust ball bearings; 34 – bushings of the hub of the overrunning clutch; 35 – fixed stop of the second gear clutch; 36 – cover; 37 – end washer; 38 – pusher of the cylindrical roller of the overrunning clutch; 39 – bevel gear of clutch engagement; 40 – bevel gear; 41 – locking ball; 42 – spring of the locking ball; 43 – fixing screw; 44 – locking ball bolt; 45 – pusher spring of the cylindrical roller; 46 – bolt of fastening of the hub of the overrunning clutch; 47 – shaft of the inclusion lever; 48 – traffic jam; 49 – thrust rod; 50 – spring of the thrust rod; 51 – pusher springs; 52 – inclusion gear; 53 – pusher; 54 – bolt; 55 – lock washer; 56 – pusher sleeve; 57 – cargo holder; 58 – load; 59 - here are the loads.
