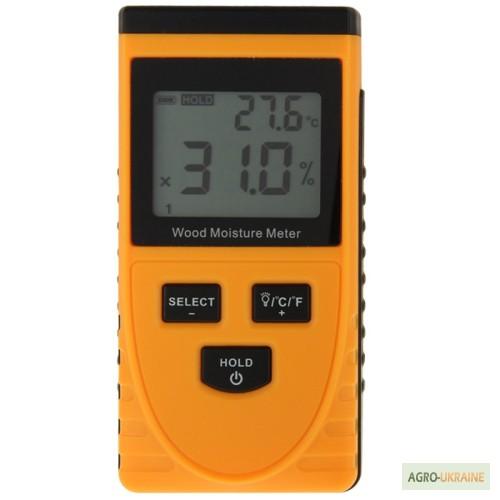

Wood moisture meter Benetech GM 630-EN-00 ( MD630 )( 0-50% ) ( 0-50 C ), Kyiv

Widely used in construction, the device allows to measure the humidity of brickwork, cardboard, wood of various breeds. Refers to non-contact express moisture meters. The advantage of the ego is the ability to analyze the material without destroying the ego. The device's operation is based on the principle of penetration of electromagnetic signals into the surface being analyzed. In this way, the Benetech GM 630-EN-00 express meter is advantageously different from any needle meter, since it is not always convenient to use a destructive measurement method, especially if we are talking about such materials as plasterboard, soft and hard types of wood, brick. Non-contact express meter GM 630-EN-00 is light, compact and easy to use. An additional advantage of this model is the measurement of the air temperature in the room. Due to its small size, the sensor is ideal for measuring humidity in hard-to-reach places and material with a rounded cross-section.

Technical characteristics:

1. Humidity measurement range: 0-50%
2. Temperature measurement range: 0-50℃/ 32-122℉
3. Error: 1.5%
4. Temperature measurement error: ±2℃ / ±3.6℉
5. Wood density range: 0.27-1.05g / cm3
6. Detection depth: 0-50mm
7. Measurement time: 2 s
8. Question: Krona
9. setting the limit value Humidity
10. Battery charge indication
11. Dimensions: 63.6*31*125.8mm
(//tractor-service.com)
This model has 8 modes of measuring wood moisture depending on its density. Below is a list of wood species corresponding to the measurement modes of this device.

1. Density 0.27-0.38: poplar, alder, American linden
2. Density 0.38-0.45: fir, yellow cedar, Scots pine, aspen, cottonwood, hibiscus, red alder,
3. Density 0.45-0.55: Willow,chestnut,
4. Density 0.55-0.65: birch, elm, red oak, beech, ash, walnutcashew
5. Density 0.65-0.75: Walnut, merbau, white oak, olive, teak wood,
6. Density 0.75-0.85: ebonite wood
7. Density 0.85-0.95: Aspidina
8. Density 0.95-1.05: red sandalwood, Indian pterocarpus, South Asian pterocarpus.

The above list does not limit the use of the non-contact moisture meter Benetech GM 630-EN-00. It is not set to work with certain types of wood, but to the value of density. Therefore, if in the instructions for the device you did not find the type of wood whose moisture you want to die, you should find the tabular value of wood density and choose the mode that suits you in terms of density.
