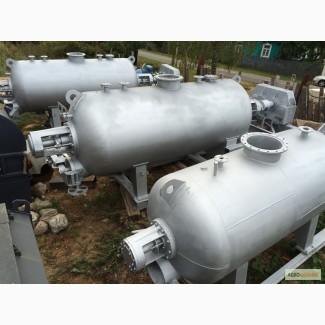

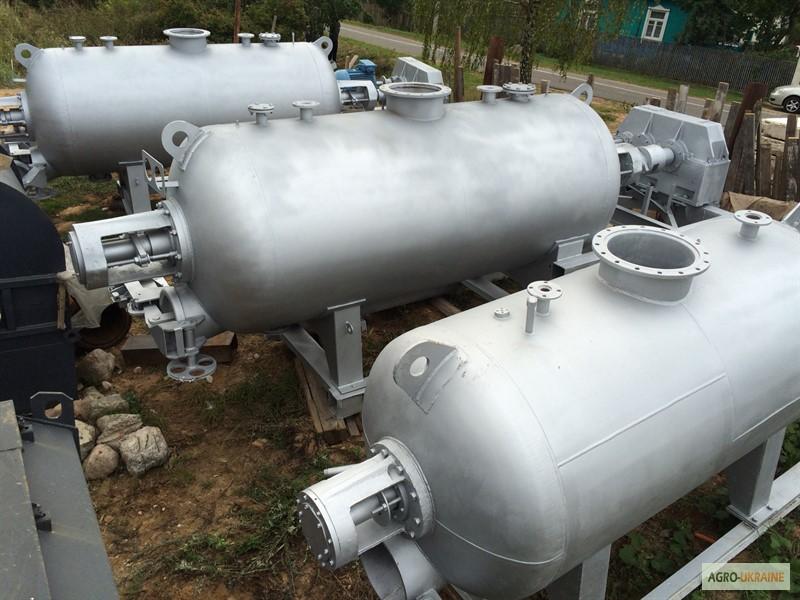

Boiler Vacuum KV- 4.6M, Kyiv

Boiler Vacuum KV- 4.6M

Naming of parametersMeaning
Body capacity 5.4 m³
The capacity of the shirt is 0.74 m³.
Heating surface 17.2 m²
Consumed mass of meat is less than 500 kg/h
The pressure in the jacket is more than 0.4 MPa (4 kgf/cm²)
The pressure in the casing during welding of raw materials is more than 0.4 MPa (4 kgf/cm²)
The pressure in the casing (reduction) during dehydration and dry raw materials is more than 0.06 MPa (0.6 kgf/cm²)
Installed power 46.08 kW
Power of the mixer drive 37.0 kW
The rotation frequency of the mixer shaft is 40 rpm.
The mass is more than 9800 kg.
Overall dimensions
length6370
width1775(//tractor-service.com)
height3660
