Tyres and cameras for tractor T-150 size 21.3-24(530-610) IYAV-79, 10 ns, Kyiv

Shyna 21.3-24(530-610) IAV-79, 10 ns
Tires for agricultural machinery

our contacts:
050 312-25-14
097 669-31-73
http://bud-partnershina.zakupka.com

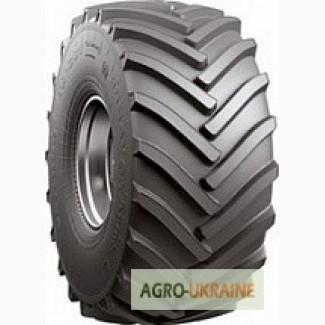

Photo IYAV-79 Altayshyn n.s. 10
Model IYAV-79 Altayshina n.s. 10
Tire size 21.3-24
Name of standard TU 38.104-155-89(//tractor-service.com)
The type of drawing is height. width.
Bearing surface index 140
Recommended rim, tolerance DW18
Outer diameter, mm +-1 1400±21
Profile width, mm, b/w 540
Static radius, mm, +-1 640±16
Qmax, kgf 2500
P0 at Qmax, kgf/cm2 1.6
Vmax, km/h 30
Tire mass, no more, kg 135.6
Vehicle type and brand Tractors of the 3-5 ton class;Harvester Niva-Effect,grain harvesters SK-5, SK-6, SKD-5
Tire framefor tractors, presented in the catalog of this site, is produced using the most modern technologies in accordance with the latest requirements of reliability and safety in the field of agricultural tires. The tires are characterized by a high level of grip and traction, good self-cleaning, while maintaining a high shock-absorbing capacity, which allows you to protect the transmission and suspension units of a tractor or combine from shocks and vibrations when working on soils and on hard road surfaces.
