Cultivator disk Wil Rich 8, 5 m. (Used), Dnipropetrovsk region.

Cultivator DC III 25-28
The working width of the grip is 8.5
Transport width m. 4.88
The number of paws pcs. 33 35
Number of discs pcs. 38
Disc diameter mm. 508
Disc thickness mm. 6.35
Transport height m. 3.66
Weight kg. 8773

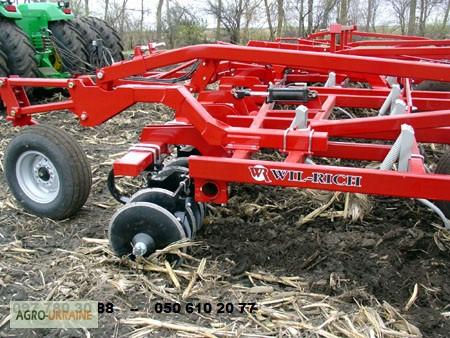

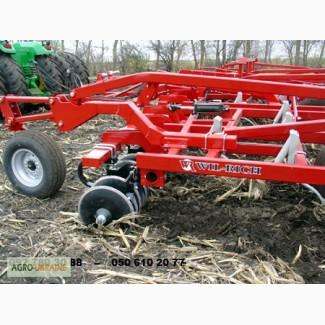

Disc cultivator WIL-RICH DC III
Disc cultivators Wil – Rich DC III (Vil Rich DySY III) are intended forpre-sowing soil treatment before sowing both after the main treatment and independently for stubble. The combined machine also has the ability to prepare the seed bed in one pass.(//tractor-service.com)
Features:
Processing depth: 0-15 cm;
A battery of discs with a diameter of 56 cm is installed in front of the cultivator paws, which grind the clods of plowed land or cut the stubble when working on the stubble;
The possibility of adjusting the processing depth;
The possibility of working on stubble;
Disc batteries are controlled by a hydraulic system and protected by a Wil-Flex bearing system that protects them from stones;
Reliable and easy-to-maintain design of the cultivator;
High performance;
Different types of coulters and tips for different jobs;
The stability of the cultivator's work is ensured by self-installing wheelswheels provide.
A distinctive feature of the Wil-Rich DC III cultivator is the presence of a disc battery with discs with a diameter of 508 mm and a thickness of 6.4 mm in front of the cultivator legs. The battery of discs is controlled by the hydraulic system and protected by the Wil-Flex bearing system, which protects them from stones. At the same time, the angle of attack of the disks is 8 degrees. Behind the disk battery there are 5 rows of arrow legs with a toe width of 23 cm. The distance between the legs is 23 cm. Depth control: The soil tillage depth adjustment is carried out mechanically and is located in one place (for safety and convenience in the front part of the cultivator), the depth control is performed hydraulically from the tractor cab. For better copying of the soil relief, the Wil-Rich DC cultivator is equipped with tandem
Контроль глубины: Регулировка глубины обработки почвы осуществляется механически и находится в одном месте (для безопасности и удобства в передней части культиватора), контроль глубины производиться гидравлически с кабины трактора. Для лучшего копирования рельефа почвы, культиватор Wil-Rich DC оборудован тандемными with wheels, which makes it possible to better withstand the given depth of processing even on uneven surfaces, and more wide-grip machines are equipped with copying wheels on the side sections. Additional finishing equipment in the form of a 3-row spring harrow and a rolling tubular roller provide excellent preparation of the seed bed.
