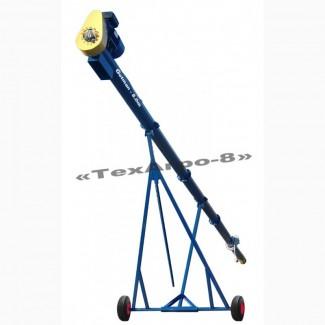

Auger grain loader "GETMAN - 6.0m", auger grain loader, auger transporter, Zaporizhia region.

Auger grain loader ZPSh-6 is intended for transportation, loading or unloading of grain, leguminous, cereal and oil crops, as well as construction and bulk materials to the required height or vehicles with high sides.

The ZPSH-6 grain loader is intended for loading and unloading, horizontal movement of grain, seeds, groats, construction and other bulk materials.

► Lifting height 3.80 m. Productivity up to 25t/h. The possibility of being equipped with a removable hopper and an auger grain picker 1.50m.

Technical characteristics:

• installation type - mobile
• the length of the housing - 6m (two housings of 3m x 3m each)
• lifting height - 3.80m.
• pipe diameter -159 mm
• pipe wall thickness - 3.5 mm
• diameterwheels - 200 mm
• productivity - from 20 to 25 t/h (depending on the transported product and the angle of inclination)
• electric power motor - 3 kW/h - 4 kW/h (380V/220V)
• mass of the installation - 200 kg
• operational termloader operation - not less than 8 years

The main constructive advantages:

► the thickness of the pipe wall is 3.5 mm, which ensures rigidity, mechanical resistance in various conditions and durability

► the diameter of the auger, the pitch between turns and the gaps inside the pipe exclude any damage to the transported product

► spirals of the auger are made of cold-rolled steel, which increases the resource of their work.

► the reliable design of the adjustable stand made of 40-50 profile pipe ensures the stability of the structure during operation

► the grain loader consists of three connected bodies, which is convenient for transportation and allows the user to assemble both an 8-meter and a 6-meter structure of the loader(//tractor-service.com)

► the connection of auger sections is carried out with the help of square bushings on suspended bodies with bearings, which ensures reliability, durability and stability in the operation of the loader

► at the request of the customer, it is possible to complete with a removable hopper with a flap, for 100-150 kg and more

► the maximum lifting height is up to 4.50 m, which allows loading into cars with high sides

► lifting-lowering is regulated by a manual cable winch or a trapeze at the customer's request

► a new electric motor with a capacity of 3kW/h (380V) or 4kW/h (220V) is installed with a 12-month factory warranty

► as well as a reliable electromagnetic starter PMK-09 with thermal relay and double protection of the electric motor

The loader includes:

• casings with screws - 2 pieces (3x3m)
• adjustable stand withwheels - 1 piece
• protective mesh on the intake unit - 1 piece
• electric motor with a power of 3kW-4kW (380/220V) - 1pc
• protective case - 1pc
• electromagnetic starter - 1 piece
• power cable - 7m (5+2m)
• portable plug 220V or 380V - 1pc
• bolt fasteners - bolts, nuts, washers
• passport for the product - 1 pc.
