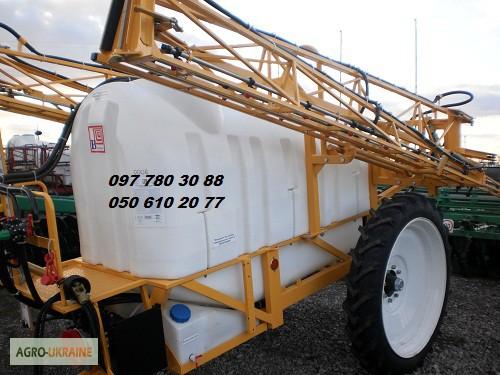

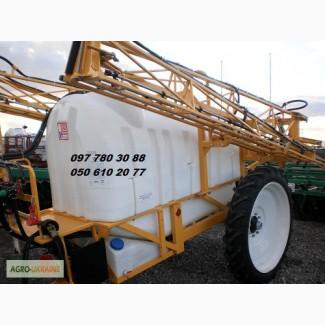

Trailed sprayer Boguslav OPK-3000-24m., Dnipropetrovsk region.

OPK-3000-24. The volume of the tank is 3000 l, the width of the boom is 24 m.

• 24-meter-long hydraulic rod of volumetric construction with a pendulum stabilization mechanism and a hydromechanical oscillating extinguishing system. The production of the rod and frame includes sandblasting followed by powder coating for reliable protection against corrosion.

• Parallelogram suspension with two hydraulic cylinders allows you to smoothly change the height of the bar from 0.5 to 1.8 meters even while driving.

• The rod protection mechanism in the event of a collision with an obstacle allows the rod to deviate up to 15˚ in the vertical plane and up to 45˚ in the horizontal plane. After passing the obstacle, the bar returns to its initial position.

• Polyethylene tank with a volume of 3000 liters.

• Two injector mixers with ceramic tips installed at the bottom of the tank maintain a constant concentration of the working fluid.

• Stepless track width adjustment from 1400 mm to 1800 mm.

•R42 large diameter wheels allow working at high speed and provide a clearance of 650 mm.

• The use of the pump of the Italian company "Annovi Reverberi", communication elements of the Italian company "Arag" and sprayers of the German company "Lechler" - leaders in the production of components for sprayers, ensures reliable and trouble-free operation of hydraulic communications of the sprayer.

TECHNICAL CHARACTERISTICS

1.

Width of capture, m

24

2.

Buck, l

3000

3.

Annovi Reverberi pump, l/min

185

4.

Tyres

9.5R42

5.

Track width, mm
(//tractor-service.com)
1400-1800

6.

Clearance, mm

650

7.

Weight, kg

1600

8.

Working height of the bar, mm

500-1800

9.

Cardan shaft Weasler

AW 21

10.

ARAG computer

option

11.

Penny marker or Skipper GPS navigator

option

12.

Mixer 20 l with a device for washing canisters

option

13.

Wide-angle cardan shaft Weasler AW21-80˚

option
