Eurohook, Eurohook, sliding hook for half-carrots, Dnipropetrovsk region.

Sliding trolley (Eurohook) for a tubular track is intended for moving meat carcasses along tubular suspension tracks at meat processing plants

Technical characteristics

Year of issue: 2010
Service life, years: 5
Нагрузка 350 kg
Total length 340
190 staple length
Weight 1,340 kg

Eurohook
Sliding hook for tubular suspension tracks.
It is intended for the transportation of carcasses and half-carcasses on tubular suspended tracks.
Bracket - galvanized steel 40x10mm, 40x12mm
The size of the bracket is 190x70x40mm
Stainless steel hook steel f 16mm, with a raised head
Overall size - 340mm
Sliding hook for cattle for tubular suspension tracks.
Bracket - galvanized steel. 40x14mm
The size of the bracket is 270x70x40mm
Hook - stainless steel. steel f 20mm
Hook size - 220mm
The overall size of the product is 490mm
Load capacity - 1250 kg.
Trolley single TO 300 for strip suspended track
Bracket - galvanized steel. 40x10mm
The size of the bracket is 290 mm
Roller - cast iron f 120x100, groove - 16x14mm
Here - (rivet) f 16mm
Swivel - stainless steel. steel f 12mm
Hook - stainless steel. steel f 16mm
The total length of the product is 515 mm(//tractor-service.com)
Load capacity - 300 kg.
A single trolley without a swivel for strip suspended tracks.
Bracket - galvanized steel, 40x10mm
The size of the bracket is 290 mm
Hook - stainless steel. steel f 16mm
Roller - cast iron, f 120x100, groove 16x14mm
Here is a roller - rivet f16mm
Overall size - 440mm
Load capacity - 300 kg.
Double trolley for strip suspended tracks.
Bracket - steel 40x10mm
The size of the bracket is 290 mm
Roller - cast iron, f 120x100, groove 16x14mm, on 2 rolling bearings (203)
Hook - steel f 22mm
Overall size - 410mm
Loading - 500 kg.
Universal landing trolley for strip suspended tracks
Bracket - steel 65x12mm
The size of the bracket is 320 mm
Roller - cast iron f 132mm, on 2 bearings (304), groove 16x14mm
Swivel - steel f 20mm
Chain length - 450mm t-6-8mm
Overall size - 443mm
Loading - 1000 kg.
Cross-legged
Bracket - galvanized steel 40x12mm
The size of the bracket is 190x70x45mm
The width of the canvas is 575mm
Нагрузка - 250 kg.

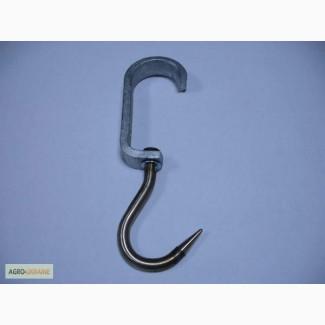

eurohook
Sliding hook (Eurohook) for hanging meat carcasses and half-carcasses.
It is intended for hanging meat carcasses and half-carcasses, as well as for moving along tubular suspension tracks at meat processing plants and transportation on specialized transport.
Made: for a pipe with a diameter of 60mm, Material: bracket - galvanized, hook, riveted to the bracket - stainless steel.
