Veterinary electrocardiograph POLI-SPEKTR-8V, Poltavska region.

Poly-Spectr-8/V is the first specialized computer electrocardiograph for veterinary medicine.
Poly-Spectr-8/B can record ECG in animals in standard Eindhoven leads (I, II, III), in reinforced (aVL, aVR, aVF) and precardial (V1...V6) leads (by additional order).

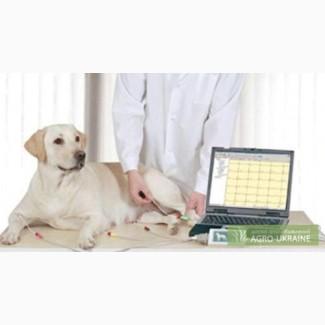

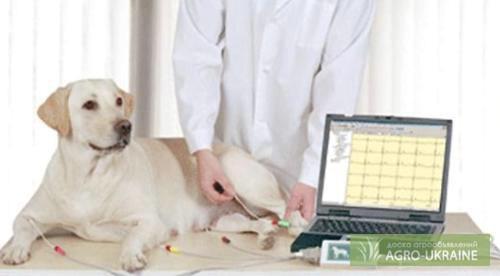

Poly-Spectr-8/V is equipped with electrodes of a special design intended for recording the ECG of dogs, cats, horses, cows, sheep, rabbits, rats and other animals.
The device is an electronic block the size of a mobile phone. It is connected to a computer via a high-speed USB interface. The use of USB allows you to digitize the curve with very high quality: the quantization frequency is 2000 Hz per channel (most of the similar devices on the market today provide quantization with a frequency of no more than 500 Hz per channel).
During registration, the electrocardiogram is displayed on the computer screen. Later, it can be printed on ordinary office paper using any computer printer.
The computer program included in the complex performs high-quality interference filtering using a specially developed library of digital filters.
The program automatically analyzes the ECG: places the markers of the nodal points of the cardiac complex, calculates all amplitude-time parameters and forms a syndromic conclusion. When placing markers and calculations, a special algorithm adapted to veterinary medicine is used. For a more accurate analysis, you can specify the type of ECG: "small mammal", "large mammal" or "dog". In addition, the parameters of the analysis are affected by the weight of the animal, the value of which will also need to be entered into the computer.
The device can be effectively used as an ECG monitor during operations: a sound signal is sent to each cardiac complex registered in real time, and the current value of the heart rate is constantly displayed at the bottom of the screen.
Poly-Spectr-8/B has all certificates and registration certificates, its production is certified according to the International Quality System ISO 9002.
As you can see, to record a dog's ECG, you need a special device with special filters, special electrodes, and special analysis algorithms. All this is available in Poly-Spektr-8/V. He lacks only one thing - the help of special people who know how to record and interpret the ECG of animals - your help!
It is possible to recommend to researchers to transfer to animals widely known methods of computerized ECG analysis in humans: analysis of heart rate variability, late ventricular potentials, dispersion of the Q-T interval, and stress tests.

Electrodes for Poly-Spectr-8/V
The basic delivery set of the device includes two sets of "crocodile" type electrodes (a total of 8 electrodes).(//tractor-service.com)
The advantage of our electrode design over the more common "needle" ones is that they do not injure the animal's skin, eliminate the risk of infection, and at the same time have significantly better contact, as a result of which they provide high-quality registration.
Electrodes of the "crocodile" type can be successfully used both for registration of leads from the limbs and for registration of thoracic (precardial) leads.

Delivery set Poly-Spectr-8/B

block "Poly-Spectr-8/B"
cable dedicated to ECG (4 wires)
set of reusable ECG electrodes "crocodile" (2x4 pcs.)
ECG chest electrode (15x20 mm) (Italy) – 4 pcs.
rubber tape for fixing the ECG electrode on the limbs - 4 pcs.
software "Poly-Spectr.NET" with connected module "Poly-Spectr-Analysis/B" for contour analysis of ECG in animals
electrode gel (250 g)
manual for operation
русский пользователя
carrying bag
