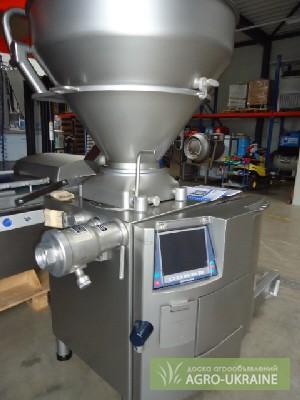

Handtmann vacuum syringe VF 628, Volyn region.

Vacuum syringe VF 628 is the best partner for industrial enterprises with the highest requirements. Innovative automatic control and drive systems provide a wide range of applications. If we are talking about grinding and stuffing using the attachment-a top, as well as the production of raw smokedsausage with a stuffing pressure of 72 bar - the high efficiency of the syringe is undeniable. As with all vacuum syringes, the VF 600 model series has an ergonomic monitor control that acts as a central control unit for perfect synchronization. With a capacity of 700 portions per minute, the VF 628 vacuum syringe meets the highest requirements.

Advantages

handtmann vacuum syringe VF 628
• VF 628 with monitor control, for example, for connecting AL-system, with a 10" color display and a control panel based on Windows-CE
• High output pressure and high drive power guarantee the required performance for dense, cold and difficult-to-process masses
• Excellent air removal for first-class product quality
• The integrated patented weight compensation system ensures the equalization of pressures and volumes in the chambers of the feed mechanism for the highest portioning accuracy.
• Perfect synchronization of control and servo technology(//tractor-service.com)
• Accuracy of portioning due to the guaranteed uniform flow of the product.
• Excellent product quality and reduction of production process stages thanks to the use of the Handtmann GD 93-3 top syringe
• Flexibility in operation, possibility of application, for example, with Handtmann AL-lines, forming devices, etc.
• Simple synchronization with consoles, for example, with clippers
• The possibility of flexible integration into production lines and a high-performance base module.
Working characteristics
• Filling capacity: 6000 kg/h
• Filling pressure: up to 72 bar
• Productivity of portioning: up to 700 portions per minute.
• Range of portioning: from 5 to 100,000 g
• Hopper volume: 90/350 liters (standard) or 90/240 liters (option) of activity
