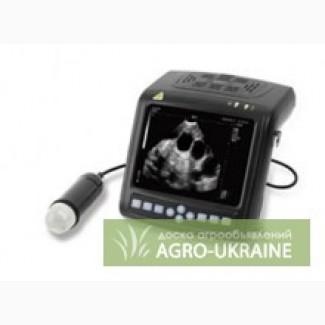

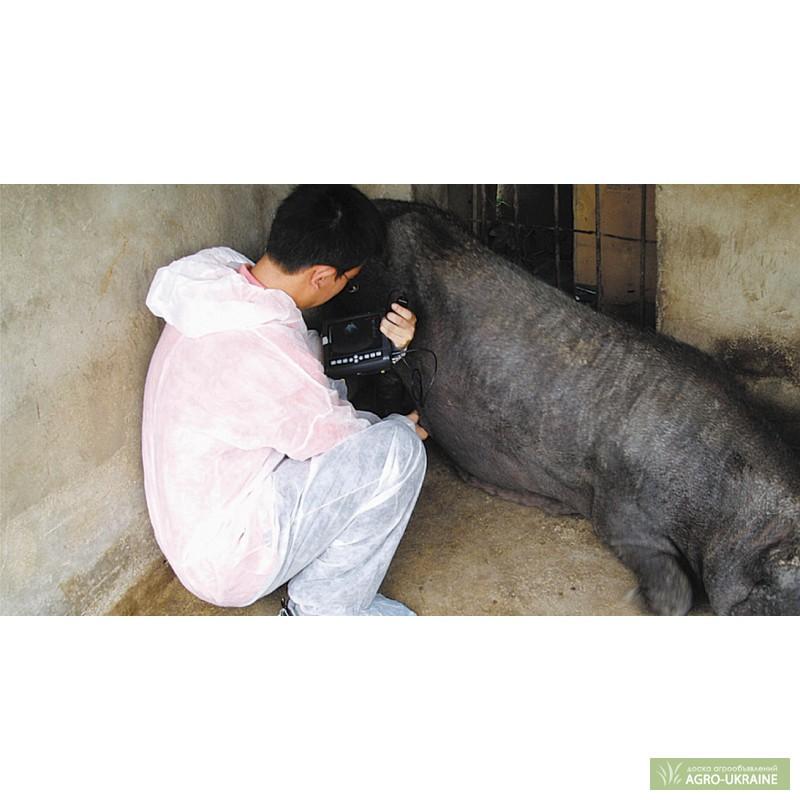

Ultrasound scanner for pig breeding MSU 1, Poltava region.

Design consoles Technical and functional characteristics
Console design:

Light, portable, small device, convenience in diagnostics.
5.7" high-resolution LCD display (high brightness and contrast, wide viewing angle, convenient viewing)
USB port with the possibility of connecting a laser printer.
PAL-NTSC video output (possibility of connecting a thermal printer and video glasses).
Lithium batteries (2400Mah), working time 4 hours.

ARM7 with built-in control system
Menu language: Chinese and English.
Scale: 5 levels
Maximum scanning depth: 200 mm.
Amplification: 0-127 dB.
Dynamic range: 27-90 dB.
Shades of gray: 256.
Frame rate: 30 frames/sec.
Pseudo-color image: 8 types
Local scale and image coloring
Permanent memory: 100 images.
Power supply: 110~230V, 50 Hz.
Weight: 1.0 kg.
The size of the main unit (LxWxH): 155x180x80 mm.

Fields of application:

Pigs
Cows
Dogs
Horses
Cats
Sheep(//tractor-service.com)
Lamas
Goats

Measurements and calculations:

Standard measurements: distance, perimeter, area, volume, etc.
Cardiological measurements: depth, slope, frequency and period of cardiac contractions.
Obstetric measurements: pregnancy period and estimated date
Obstetric report
27 body marks with sensor direction.

Basic scanning modes:
- B, 2B, 4B, B/M, M
Basic equipment:

Console MSU1
Mechanical sector waterproof sensor - 3.5 MHz.
12 V mains adapter
Lithium batteries - 2 pcs.
Leather box
Charging device
Bracket
Belt
Remote control
Руководство по хорошения (in Russian)

Available options:

Glasses to view the image
Black and white thermal printer (Sony, Mitsubishi)
Laser color printer (HP Color Laser Jet CP1515, HP Color Laser Jet CP1525)
Lithium batteries (2400 Mah)
Mouse
