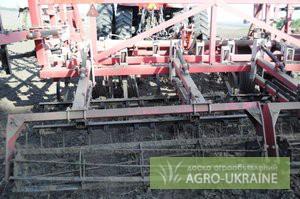

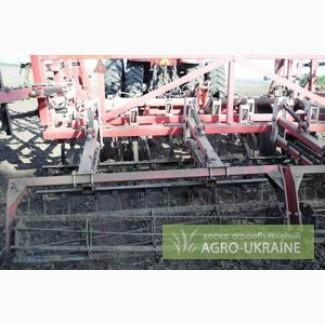

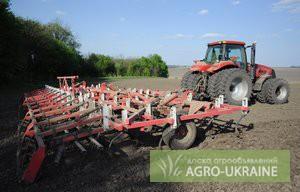

RICH LAND cultivator, Kyiv

Improved analogue of Wil Rich cultivator )
Cultivators for continuous use are very popular in our country.
tillage.
The unit is an analogue of the Canadian manufacturer's cultivator. On him
Imported working parts are installed (booms, struts, springs, and other details).
Cultivator frame of Ukrainian production, manufactured according to Canadian technology.

The cultivator is produced in 5 versions: 6, 8, 9, 10, 12 meter wide.
It is aggregated :
Cultivator Tractor, l/s.
6 m - 120 l/s.
8 m - 150 l/s.
9 m - 180 l/s.
10 m - 240 l/s.
12m - 300 l/s.
Design features:
1. The layout of the racks provides maximum mixing of the soil with plant residues and ideal leveling of the ridged soil. 3-level construction of the frame protects the cultivator against any changes in the geometry of the frame. The "spar in spar" technology is used. The thickness of the metal used is 8 mm, double primer and special paint. paint(//tractor-service.com)

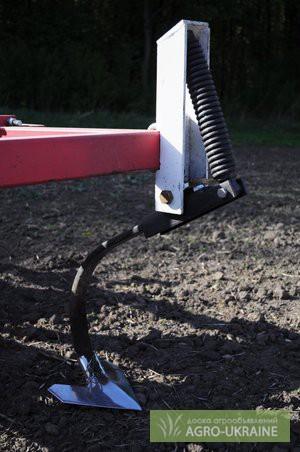

2. 5-row cultivator with C-shaped reinforced racks made of high-quality siliceous spring steel (made in Poland) withstands 93 kg of point pressure, is held by a powerful tension spring to which a 250 mm wide arrow leg is attached, manufactured by the Spanish company "BELOTTO", (on special order it is possible to supply with sets of 230 and 280 mm) (used for heavy and medium soils). The overlap ratio is 50%. The optimal width arrangement of the working bodies makes it possible to avoid clogging and the formation of a ridge. It is possible to adjust the immersion from 0 to 23 cm (recommended -16 cm).
3. Three-row spring harrow with angle of attack adjustment and screw roller system Turbo Rear. Spring blocks produced in Poland. The system of adjusting the angle of attack allows maximum use of grabs. The overlap of the rakes on 3 rows is 21 cm, 7 cm on each row with a diagonal offset.
4. Floatingtandem wheels (used on 8,9,10,12 m. products) guarantee ideal soil copying. For the convenience of users, Ukrainian-made bearings, hubs, discs andtyres (wheels with a size of 10.0 75 R 15.3) are used, which has a positive effect on both cost and serviceability. A total of 8 wheels on the cultivator.
5. Spring-loaded spiral rollers with a spiral angle of 7% allow for better alignment, break up lumps, and prevent the rollers from clogging on loams, chernozems, and other heavy soils.
Bearings analog UCF-208 are used on the rollers, there is an opportunity to quickly dismantle the rollers if necessary.
The cost of cultivators including VAT: 164
- 8 м.- 195 000 грн.
- 9 months - UAH 225,000.
- 10 m. UAH 285,000.
- 12 months - UAH 310,000.
The price includes - 1 hour of warranty (the team will come out for warranty cases during the warranty period for free), loading, assembly of the cultivator at the farm, instruction, demonstration and commissioning.
Difficult working conditions require reliable tillage equipment, which gives a positive result during each trip to the field. In its segment of machines, the cultivator has a solid reputation as a tool that provides excellent tillage at a competitive price. Location of cultivators - Kyiv, Cherkassy.
Our cultivators are already successfully working in Ukrainian farms.
For additional information, please call:
044 270 31 79 (Kyiv)
+38 095 31 31 815
+38 096 37 88 120 Oleg
E-mail :[email protected]
