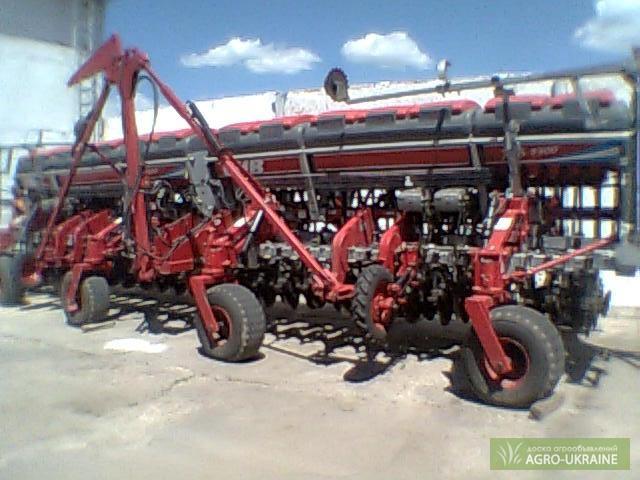

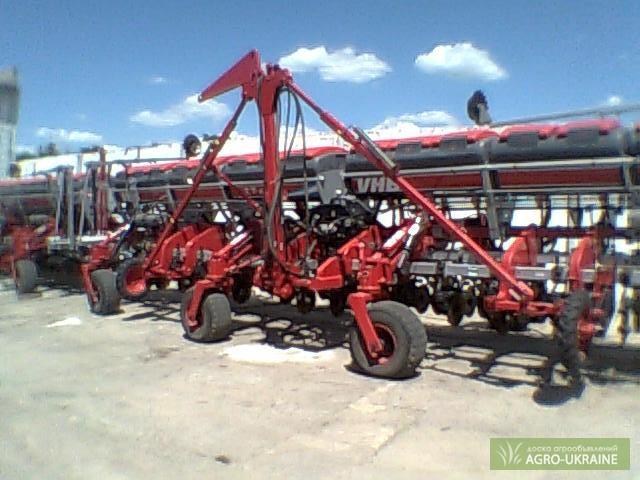

Trailed no-till VHB RB seed drill and plow seed drill (Argentina) under 300 hp, 2011, Kharkiv region.

Power 300 hp. Year of manufacture 2011, worked on 2000 hectares, automatic gearboxes are installed on the seeders for quick adjustment to any culture directly from thetractor.
1. TRAILED MECHANICAL DIRECT SEEDING GRAIN SEEDER VHB is intended for sowingcereal seeds and small-seeded crops using zero seeding technology with simultaneous applicationgranular fertilizer. Gripping width 10.6 m. Width between rows 19 cm.
2. TRAILED PNEUMATIC DIRECT SOWING SEEDER VHB is designed for sowing seeds of plowed crops using zero seeding technology with simultaneous application of granular fertilizers. The number of rows is 16. Width between rows 70 cm.

Characteristics of Ed. change VHBRB5300GF5319NT VHBRB6000NM1670TAN Number of rows, pieces 53 16
Distance between rows, cm 19 70
Machine type Mechanics; Pneumatics
The diameter of the cutting turbo disc, mm 431 431
The diameter of the sowing disk is 1.mm 406 406
The diameter of the sowing disc is 2.mm 381 381
Pressure on the cutting disc, kg 200-250
Pressure on the coulter, kg 150-190
Sowing rate, kg/ha 1.5-500
Sowing depth, mm 0-100
Coulter stroke, mm 250
Productivity per h/ha 9 9.6(//tractor-service.com)
Working width of capture, m 10.6 11
Working speed of movement, km/h 8
Weight of the seeder, kg 14646 12900
Transport speed no more than km/h 32.5 32.5
Ground clearance not less than 350 mm 350
Overall dimensions of the seeder in the transport position
-length, mm 11052 12181
-width, mm 3800 3800
-height, mm 2730 2730
Dimensional dimensions of the seeder in working position
-length, mm 7575 7575
-width, mm 11052 11000
-height, mm 2250 2250
Grain hopper capacity, m³ 3.9 4.4
Hopper capacity for fertilizer, m³ 2 2.2
Required power of the tractor, HP 300 280
